988010 - Gravely Pro 300 Walk-Behind Mower, 20hp Kohler (SN: 000101 & Above) Traction Clutch Linkage Parts Diagram

Pro 300 Walk-Behind Mower, 20hp Kohler

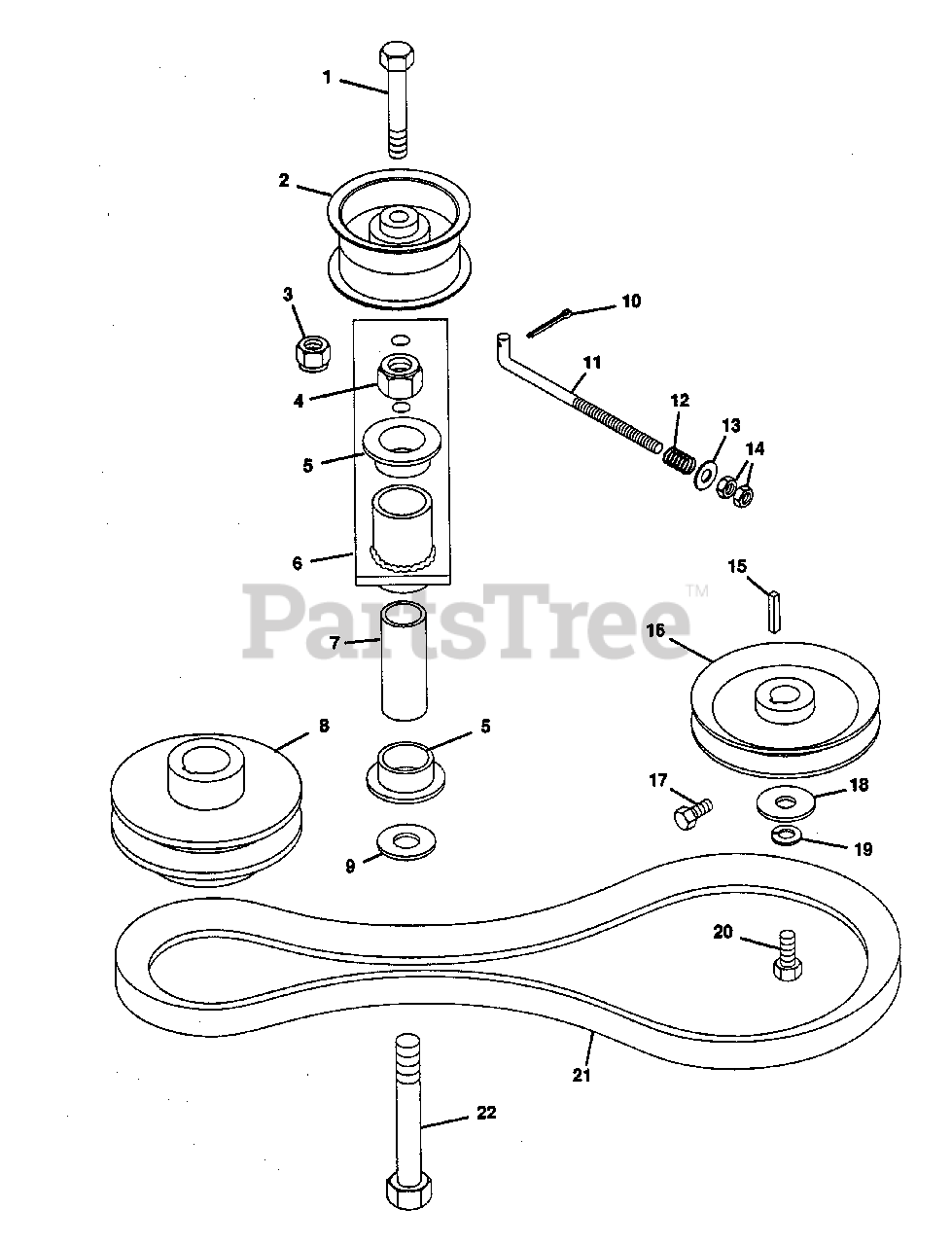

Traction Clutch Linkage Parts Diagram

  • Title

1

Gravely 180128

Bolt, Hex 3/8-16x1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

2

52062

Pulley, Idler

$

$

Not available

3

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 435507

Nut, Lock 112-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

5

10174

Bush., Flg..764x1.47x.560 Ny.

$

$

Not available

6

51134

Weldment, Ground Drive Idler

$

$

Not available

7

41992

Bush., St..560x.745x2.04 St I.

$

$

Not available

8

51137

Sheave, Engine Ground Drive

Note: (16 HP)

$

$

Not available

8

53032

Sheave, Engine Ground Drive

Note: (20 HP)

$

$

Not available

9

Gravely 120396

Washer, Flat .531x1 .062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 121222

Pin, Cotter .094x.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

11

52661

Rod, Idler

$

$

Not available

12

Gravely 11779

Spring, Comp. 1x.78x338 Lb/In

$

$

Currently unavailable

13

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 120369

Nut, Hex 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

15

50995

Key, 5mm Sq.x25mm Lg.

$

$

Not available

16

51138

Sheave, Hydraulic Pump

$

$

Not available

17

Gravely 180016

Bolt, Hex 1/4-20x.50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

18

12694

Washer, Flat .265x1 .250x.063

$

$

Not available

19

Gravely 120380

Washer, Lock 1/4 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

20

50996

Bolt, Hex M6x1.Ox12mm Lg.

$

$

Not available

21

51141

V-Belt, Engine to Pump

$

$

Not available

22

Gravely 180190

Bolt, Hex 1/2-13x3.00
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0
