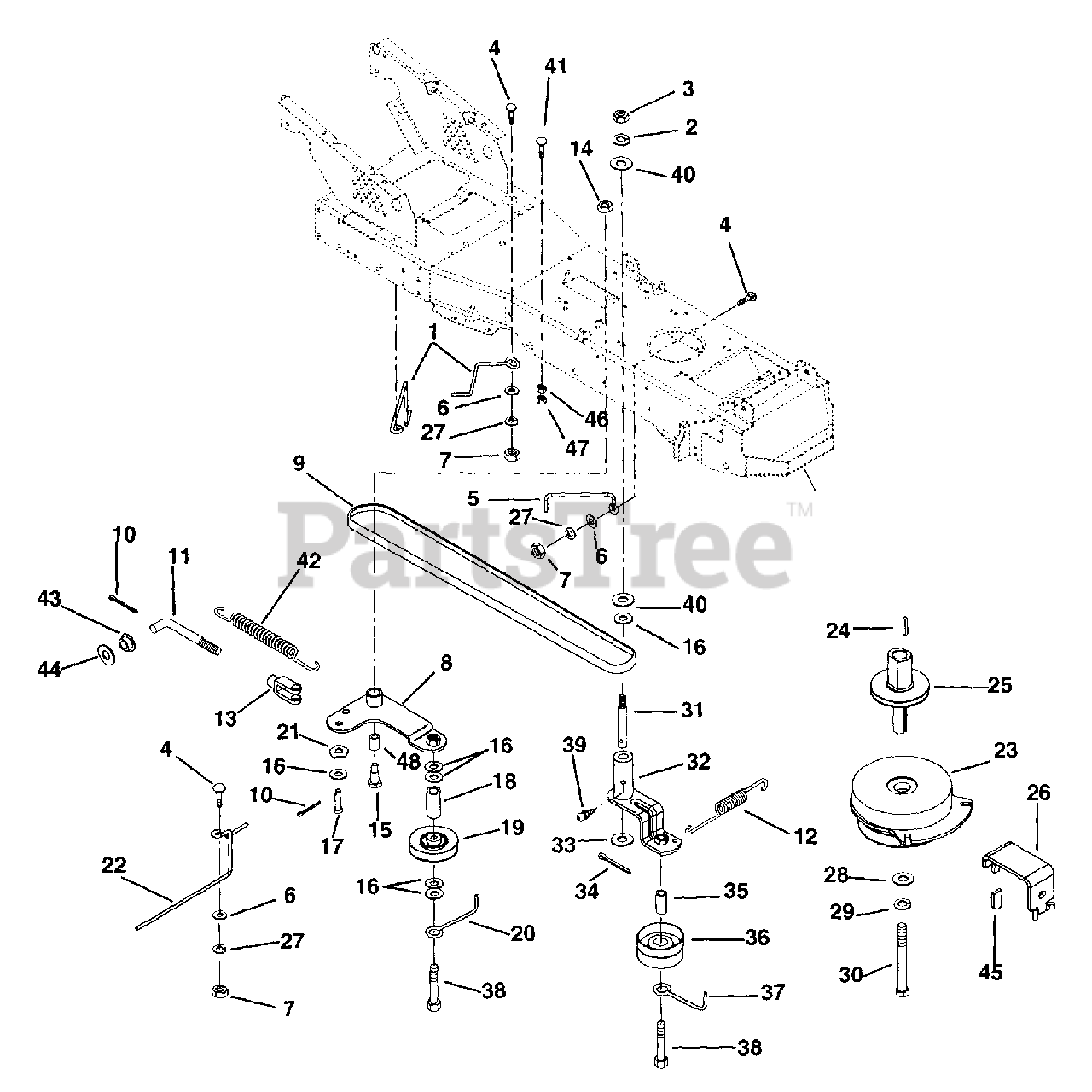

987107 (GT 548 H) - Gravely 48" Garden Tractor, 22hp Briggs & Stratton (SN: 000101 & Above) Drive Belt Parts Diagram

48" Garden Tractor, 22hp Briggs & Stratton

Drive Belt Parts Diagram

  • Title
1

Gravely 03355900

Belt Finger

$

$

Not available

2

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06214100

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 03356000

Belt Finger

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06529200

Nut-Hex .312-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

8

Gravely 03631200

Idler Pivot Arm

$61.99

$

Usually ships in 4-12 days

0

$48.99

$

In Stock, only 1 left!

0

10

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 10

0

$

$

Not available

12

Gravely 08334700

Spring-Extension
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

13

Gravely 034633

Yoke .31-24 x 2.250
(Superseded to 07014700)

$14.99

$

In Stock, only 1 left!

0

14

Gravely 06529600

Nut Locking .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07023400

Bolt-Shoulder .38-16 x 1.25

$34.99

$

In Stock, only 1 left!

0

16

Gravely 06444300

Washer-Flat .390 x .75 x .125

$7.99

$

In Stock, Qty 8

0

17

Gravely 06811800

Pin-Clevis .312 x .822
(Superseded to 06814000)

$3.99

$

In Stock, only 1 left!

0

$

$

Not available

19

Gravely 07309200

Idler-V 3 x .38

$37.99

$

In Stock, only 2 left!

0

20

Gravely 03638300

Belt Finger

$51.99

$

Usually ships in 4-12 days

0

21

Gravely 00325400

Wave Washer

$0.99

$

In Stock, Qty 20+

0

22

Gravely 03355800

Belt-Finger-Center

$

$

Not available

23

Gravely 03357900

Clutch-Electric

$491.99

$

In Stock, only 1 left!

0

24

Gravely 06603400

Key-Square .25 x 1.25 x .25

$3.99

$

In Stock, Qty 11

0

25

Gravely 03362300

Shaft-Sheave Ext.

$

$

Not available

26

Gravely 03357551

Anchor-Clutch
(Superseded to 03357500)

$58.99

$

In Stock, only 1 left!

0

27

Gravely 06307400

Washer-Locking-Heavy .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06443500

Washer-Flat-Steel .463 x 1.375 x .25

$6.99

$

Usually ships in 4-12 days

0

29

Gravely 06310700

Washer-Locking-Heavy .438 x .133

$2.99

$

Usually ships in 4-12 days

0

30

Gravely 05969000

Bolt-Hex .44-20 x 5.50 Grade 5

$7.99

$

In Stock, only 1 left!

0

31

Gravely 03622900

Shoulder Stud

$34.99

$

In Stock, only 2 left!

0

32

Gravely 03347700

Arm-idler Pivot

$

$

Not available

33

Gravely 06441100

Washer-Flat-Steel .520 x .827 x .062
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

34

Gravely 06712700

Pin-Cotter .18 x 1.25

$1.99

$

In Stock, only 3 left!

0

35

Gravely 03638400

Tube .380 x .625 x 1.620

$24.99

$

Usually ships in 4-12 days

0

36

Gravely 039173

Idler-Flat 3.25 x .38
(Superseded to 07308800)

$39.99

$

In Stock, Qty 8

0

37

Gravely 03648300

Finger-Belt

$21.99

$

In Stock, only 1 left!

0

38

Gravely 05960900

Bolt-Hex .38-16 x 3.50 Grade 5
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

39

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

40

Gravely 06435900

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 06221800

Bolt-Round Head Square Neck .31-18 x 1.00
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

42

Gravely 08333200

Spring-Tension .105 x .85 x 5.00

$14.99

$

In Stock, only 1 left!

0

43

Gravely 045789

Bushing-Flange .320 x .620 x .312
(Superseded to 05517500)

$18.99

$

Usually ships in 4-12 days

0

44

Gravely 06436600

Washer-Flat-Steel .505 x .880 x .072
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

45

Gravely 07526700

Grip .062 x .375 x .750

$

$

Not available

46

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

47

Gravely 06529800

Nut-Locking-Center .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

48

Gravely 05531500

Spacer-.344 x .500 x .75

$13.99

$

In Stock, only 1 left!

0
