987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Steering Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

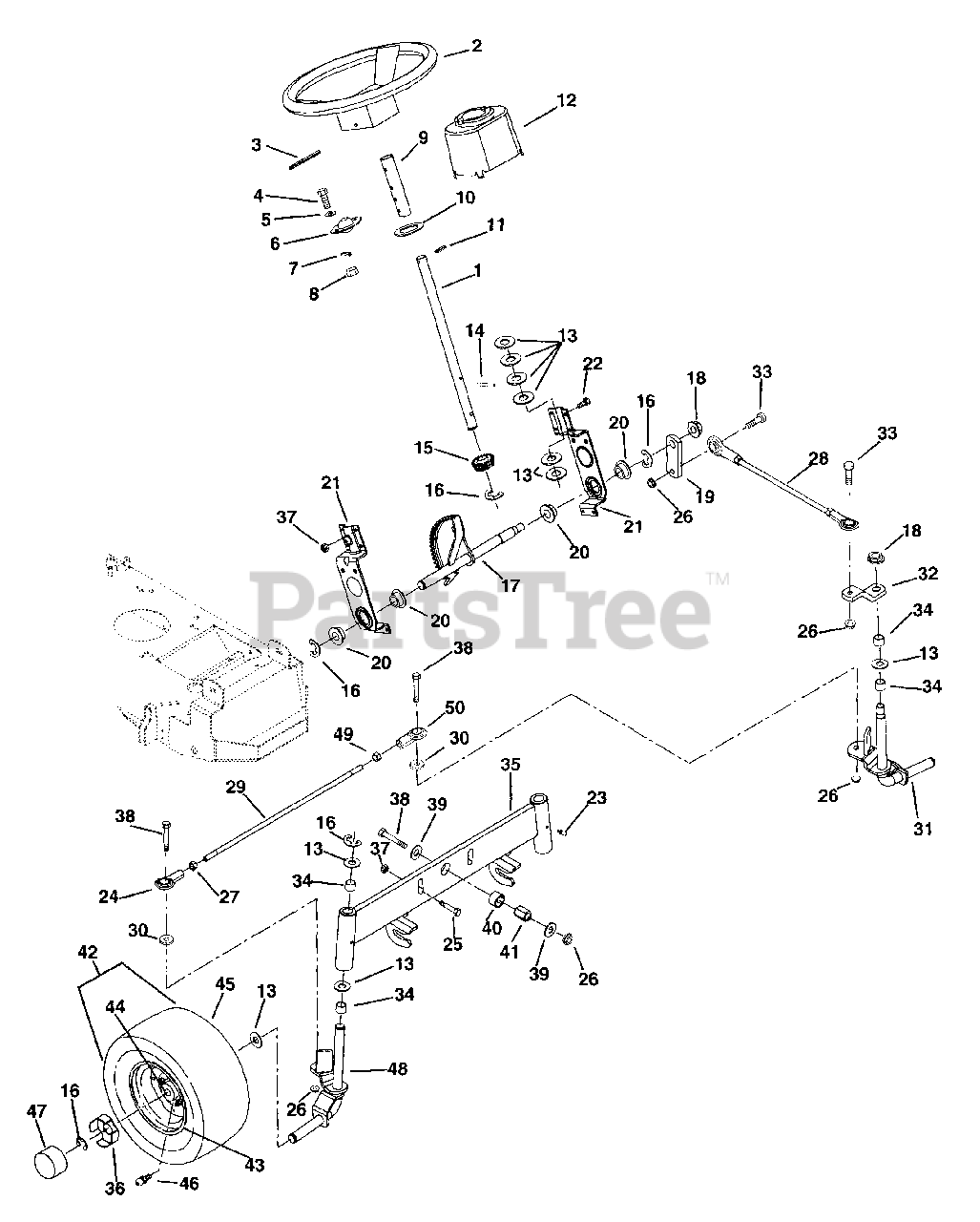

Steering Parts Diagram

  • Title

1

Gravely 03351700

Column Steering

$124.99

$

Usually ships in 4-12 days

0

2

Gravely 03671200

Steering Wheel 13"

$

$

Not available

3

Gravely 05803700

Pin-Roll .250 x 1.75

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 036138

Bearing-Flange .751 x 2 Holes x .81
(Superseded to 05402500)

$23.99

$

Usually ships in 4-12 days

0

7

Gravely 06307400

Washer-Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

9

Gravely 03603100

Tube

$

$

Not available

10

Gravely 06441400

Washer-Flat-Steel .754 x 1.125 x .062
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 412281

Pin-Roll .250 x 1.00
(Superseded to 05808400)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 03649600

Cone-Steering Column

$

$

Not available

13

Gravely 06441500

Washer-Flat-Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

14

Gravely 036144

Pin
(Superseded to 02913300)

$17.99

$

Usually ships in 4-12 days

0

15

Gravely 036145

Pinion Gear-Steering
(Superseded to 02902100)

$64.99

$

In Stock, only 1 left!

0

16

Gravely 036278

Ring-Retaining-External .750 x .050
(Superseded to 05707400)

$2.49

$

In Stock, only 1 left!

0

17

Gravely 03669600

Gear-Steering

$155.99

$

Usually ships in 4-12 days

0

18

Gravely 06538000

Nut-Locking .563-18 Grade 5

$

$

Not available

19

Gravely 03351800

Arm-Steering Rod

$

$

Not available

20

Gravely 036142

Bushing-Flange .750 x 1.093 x .625 x 1.375
(Superseded to 05508000)

$19.99

$

Usually ships in 4-12 days

0

21

Gravely 03672951

Bracket-Steering Gear

$46.99

$

Usually ships in 4-12 days

0

22

Gravely 05946800

Bolt-Hex .250-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

24

Gravely 044753

Rod End-.375-24
(Superseded to 03563100)

$15.99

$

In Stock, only 2 left!

0

25

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

28

Gravely 03668600

Link-Drag

$

$

Not available

29

Gravely 03360901

Rod-Tie

$

$

Not available

30

Gravely 05522100

Bushing-Sleeve .377 x .624 x .370

$4.99

$

Usually ships in 4-12 days

0

31

Gravely 03339400

Spindle-Left Hand

$

$

Not available

32

Gravely 03664351

Arm-Steering Spindle

$

$

Not available

33

Gravely 039451

Bolt-Button Head .38-16 x 1.25 Grade 5
(Superseded to 07006300)

$2.99

$

Usually ships in 4-12 days

0

34

Gravely 05505700

Bushing-Sleeve .750 x .814 x 1.000

$17.99

$

In Stock, only 1 left!

0

35

Gravely 03353051

Axle-Front

$

$

Not available

36

Gravely 036277

Spindle Cup
(Superseded to 03516900)

$19.99

$

In Stock, only 1 left!

0

37

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 06443400

Washer-Flat-Steel .38 x 1.500 x .125
(Superseded to 06401106)

$3.49

$

In Stock, Qty 10

0

40

Gravely 05522000

Bushing-Sleeve .626 x 1.000 x .524

$90.99

$

Usually ships in 4-12 days

0

41

Gravely 05522700

Bushing-Sleeve .377 x .623 x .775

$15.99

$

Usually ships in 4-12 days

0

42

Gravely 07136500

Tire/Wheel Assembly 15 x 6.00-6
(Superseded to 07149400)

Note: (Contains: one ea. of Items 43, 44 & 45)

$148.99

$

Usually ships in 4-12 days

0

43

Gravely 07136600

Rim
(Superseded to 07149500)

$

$

Not available

44

Gravely 05520700

Bushing-3/4 Bore
(Superseded to 05434900)

$13.99

$

In Stock, Qty 20+

0

45

Gravely 07109900

Tire-Turf Saver 15 x 6.00-6 2 Ply

$

$

Not available

46

Gravely 07047000

Fitting-Lube .25-28 x .97

$

$

Not available

47

Gravely 036202

Hub Cap
(Superseded to 00337700)

$2.99

$

In Stock, Qty 20+

0

48

Gravely 03344000

Spindle-Right Hand

$168.99

$

In Stock, only 1 left!

0

49

Gravely 06537400

Nut-Jam .375-24
(Superseded to 06500924)

$3.99

$

Usually ships in 4-12 days

0

50

Gravely 03668700

Rod-End .375-24

$15.99

$

Usually ships in 4-12 days

0
