987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Mower Spindle (Continued) Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

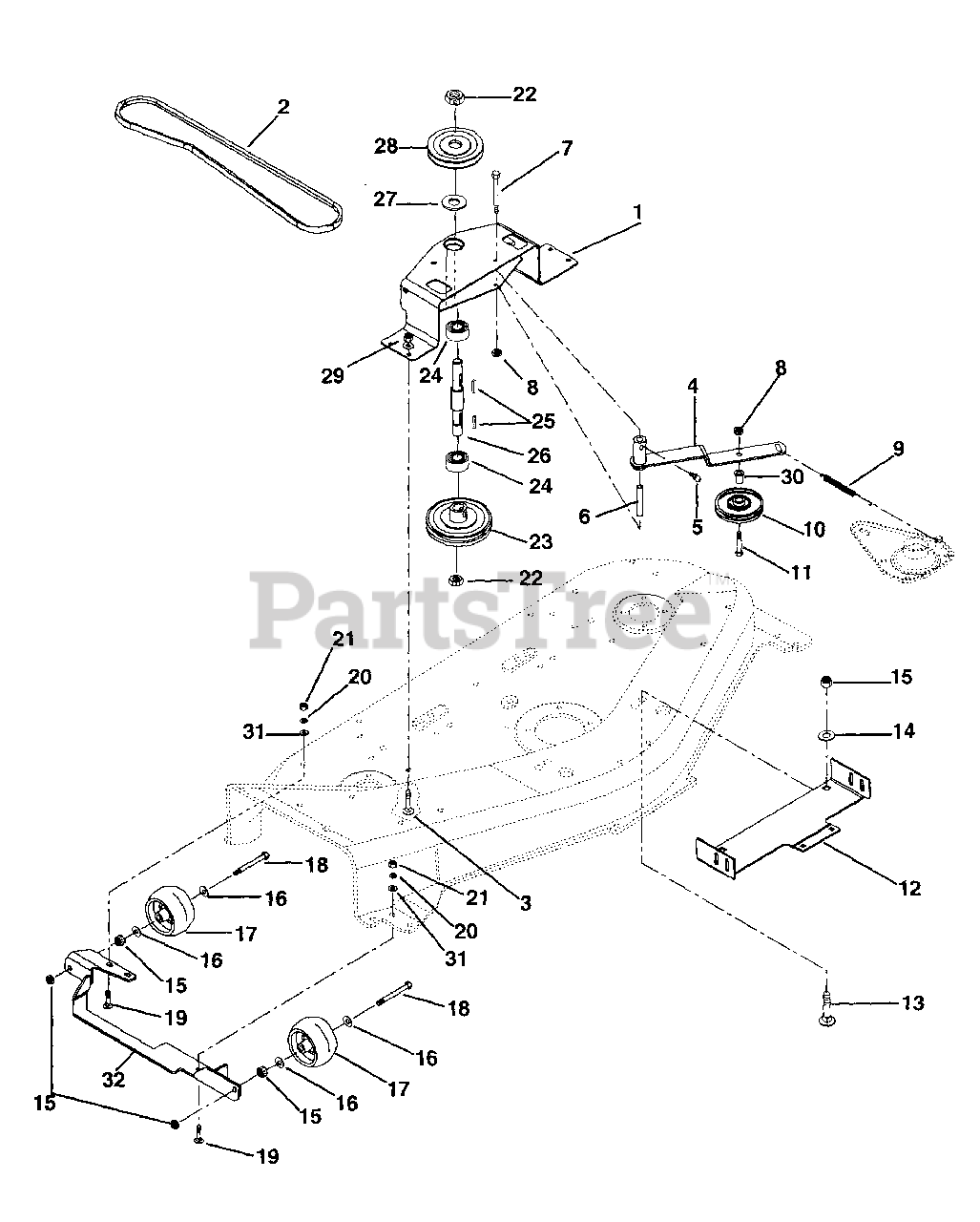

Mower Spindle (Continued) Parts Diagram

  • Title

1

Gravely 03362451

Housing-Jackshaft

$45.99

$

Usually ships in 4-12 days

0

2

Gravely 07227300

Belt

$48.99

$

Usually ships in 4-12 days

0

3

Gravely 06214100

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 03356153

Arm-Idler

$

$

Not available

5

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

6

Gravely 03356200

Spacer .385 ID x .625 OD x 2.73

$

$

Not available

7

Gravely 05948000

Bolt-Hex .31-18 x 3.50 Grade 5

$

$

Not available

8

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 083290

Spring-Tension .113 x .812 x 7.00
(Superseded to 08329000)

$20.99

$

Usually ships in 4-12 days

0

10

Gravely 00542700

Idler-Plastic 4.75 OD x.50 ID

$37.99

$

In Stock, only 1 left!

0

11

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

12

Gravely 03358753

Brace-Front

$

$

Not available

13

Gravely 06221200

Bolt-Round Head Square Neck .50-13 x .75 Grade 5

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 06436600

Washer-Flat-Steel .505 x .880 x .072
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

16

Gravely 06443300

Washer-Flat-Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 20+

0

17

Gravely 03471700

Wheel 5 x 3
(Superseded to 03905600)

$15.99

$

In Stock, Qty 20+

0

18

Gravely 05962300

Bolt-Hex .50-13 x 4.00
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

19

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x 1.00
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 06307400

Washer-Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06529200

Nut-Hex .312-18 Grade 2
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

22

Gravely 06535400

Nut-Locking-Nylon .75 - 10 Grade 2

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 07312900

Pulley-V 6.00 x .75 w/Key

$68.99

$

Usually ships in 4-12 days

0

24

Gravely 035925

Bearing-Ball .750 x 1.781 x .61
(Superseded to 05412000)

$13.99

$

In Stock, Qty 7

0

25

Gravely 026273

Key-Square .187 x .50 x .187
(Superseded to 06606000)

$10.99

$

In Stock, only 1 left!

0

26

Gravely 03355400

Jackshaft

$

$

Not available

27

Gravely 06444200

Washer-Flat-Steel .755 x 1.250 x .125
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

28

Gravely 050248

Sheave
(Superseded to 03454400)

$

$

Not available

29

Gravely 06529800

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 036849

Spacer-Flanged .390 x .500 x .781 x .875
(Superseded to 03114500)

$9.99

$

In Stock, only 1 left!

0

31

Gravely 06400200

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 01533953

Mount-Roller
(Superseded to 01533900)

$

$

Not available

33

Gravely 06437300

Washer-Flat .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06529700

Nut-Center Locking .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0
