987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Hydrostatic Drive Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

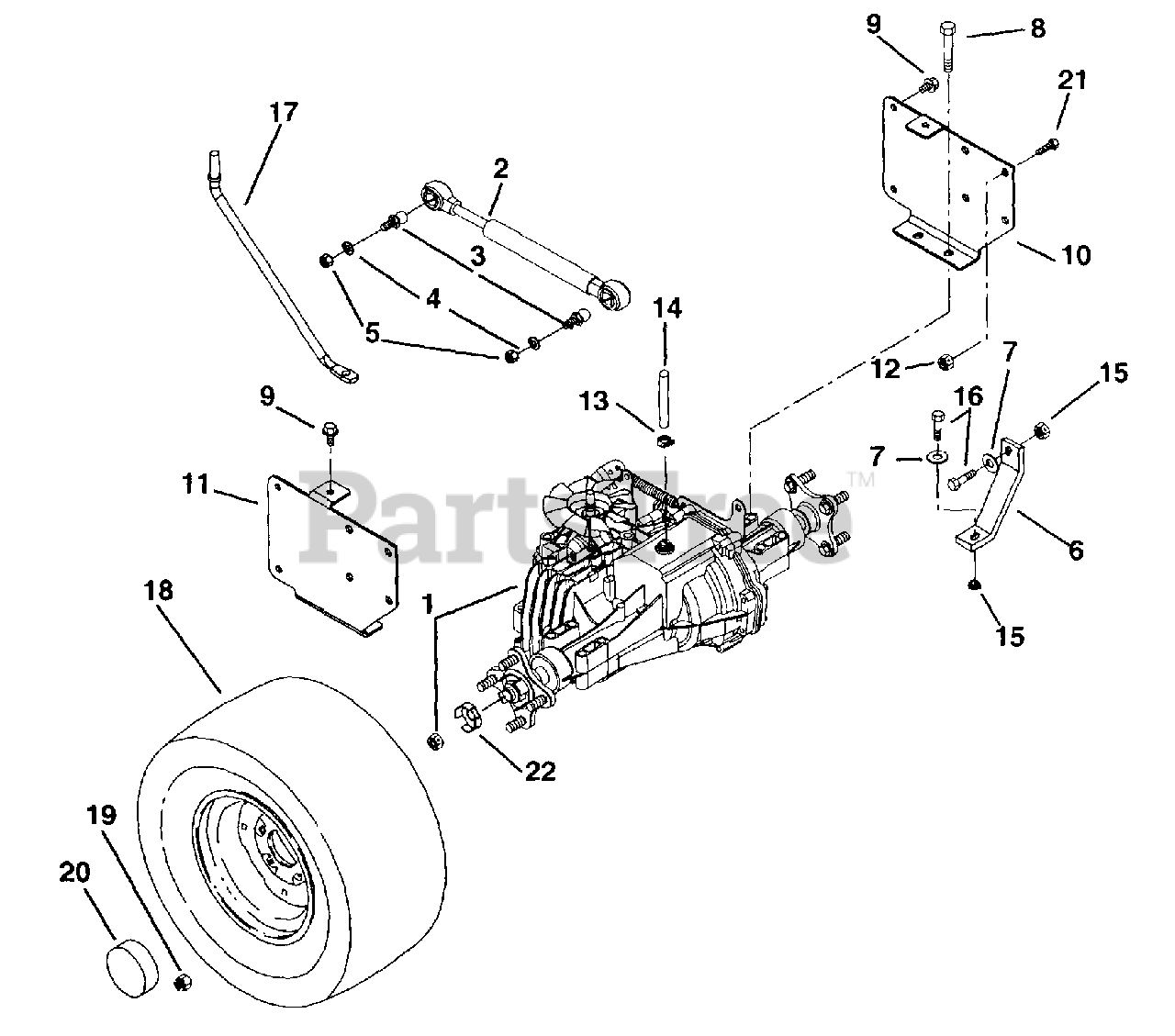

Hydrostatic Drive Parts Diagram

  • Title
1

Gravely 03362900

Transaxle-Hydro Gear

$1675.99

$

Usually ships in 4-12 days

0

2

Gravely 03652100

Damper-Hydraulic

$52.99

$

Usually ships in 4-12 days

0

3

Gravely 03652200

Stud-Ball

$3.49

$

In Stock, only 3 left!

0

4

Gravely 06307400

Washer-Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

6

Gravely 03362251

Brace-Transaxle

$

$

Not available

7

Gravely 06437200

Washer .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05957800

Bolt-Hex .38-16 x 3.00 Grade 5
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 07412900

Screw-Tapping .375-16 x .50
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 03362151

Mount-Axle Left Hand
(Superseded to 03695900)

$

$

Not available

11

Gravely 03362051

Mount-Axle Right Hand
(Superseded to 03695800)

$

$

Not available

12

Gravely 06529600

Nut-Lock Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03449700

Hose Clamp

$

$

Not available

14

Gravely 03363700

Hose-Vent .75 O.D. x 12.00

$

$

Not available

15

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03363300

Rod-Dump Valve

$

$

Not available

18

Gravely 07149700

Tire/Wheel Assembly 10.50 x 23

$

$

Not available

19

Gravely 039687

Nut-Lug .437-20
(Superseded to 06511400)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 039515

Rear Hub Cap
(Superseded to 07508800)

$15.99

$

Usually ships in 4-12 days

0

21

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 036277

Spindle Cup
(Superseded to 03516900)

$19.99

$

In Stock, only 1 left!

0
