987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Hydro Drive Shift Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

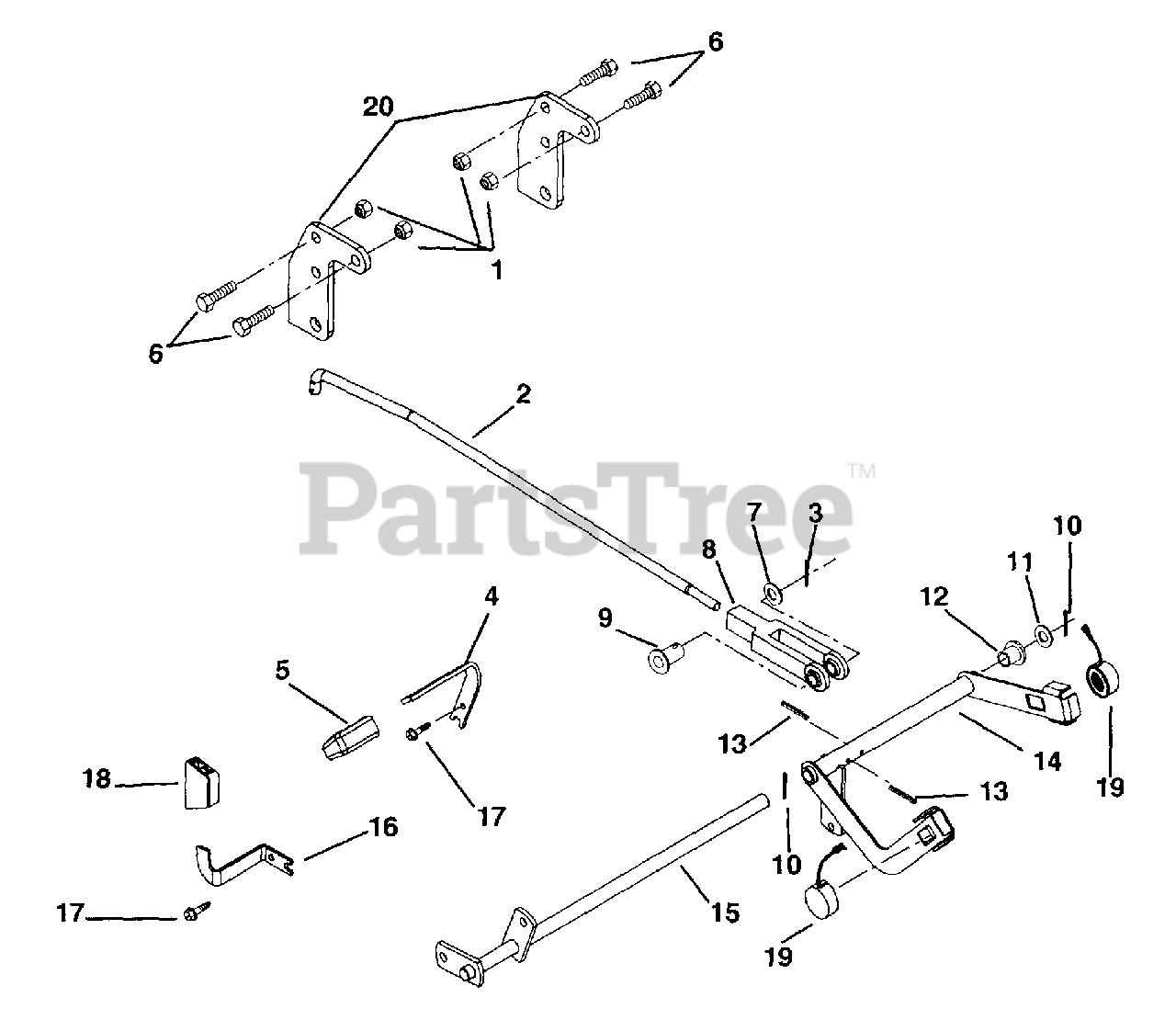

Hydro Drive Shift Parts Diagram

  • Title

1

Gravely 06529600

Nut-Locking .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 03362600

Rod-Shift

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 10

0

4

Gravely 03650651

Pedal-Forward

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 07524000

Cover-Pedal-Forward

$34.99

$

Usually ships in 4-12 days

0

6

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06444300

Washer-Flat-Steel .390 x .750 x .125

$7.99

$

In Stock, Qty 8

0

8

Gravely 034633

Yoke .31-24 x 2.25
(Superseded to 07014700)

$14.99

$

In Stock, only 1 left!

0

9

Gravely 06811800

Pin-Clevis .312 x .822
(Superseded to 06814000)

$3.99

$

In Stock, only 1 left!

0

10

Gravely 06707100

Pin-Cotter .12 x 1.0

$0.99

$

In Stock, Qty 10

0

11

Gravely 06441100

Washer-Flat-Steel .520 x .827 x .062
(Superseded to 06401114)

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00 Nylon
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

13

Gravely 05804500

Pin-Groove .188 x 1.25

$10.99

$

In Stock, Qty 5

0

14

Gravely 03363051

Assembly-Forward/Reverse Pedal

$13.99

$

Usually ships in 4-12 days

0

15

Gravely 03651800

Shaft Pedal

$

$

Not available

16

Gravely 03650751

Pedal-Reverse

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 07414100

Screw-Tapping .375-16 x 1.00
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

18

Gravely 07524400

Cover-Pedal-Reverse

$

$

Not available

19

Gravely 03672400

Magnet-Locking Electric

$

$

Not available

20

Gravely 03364051

Bracket-Hanger

$5.99

$

Usually ships in 4-12 days

0
