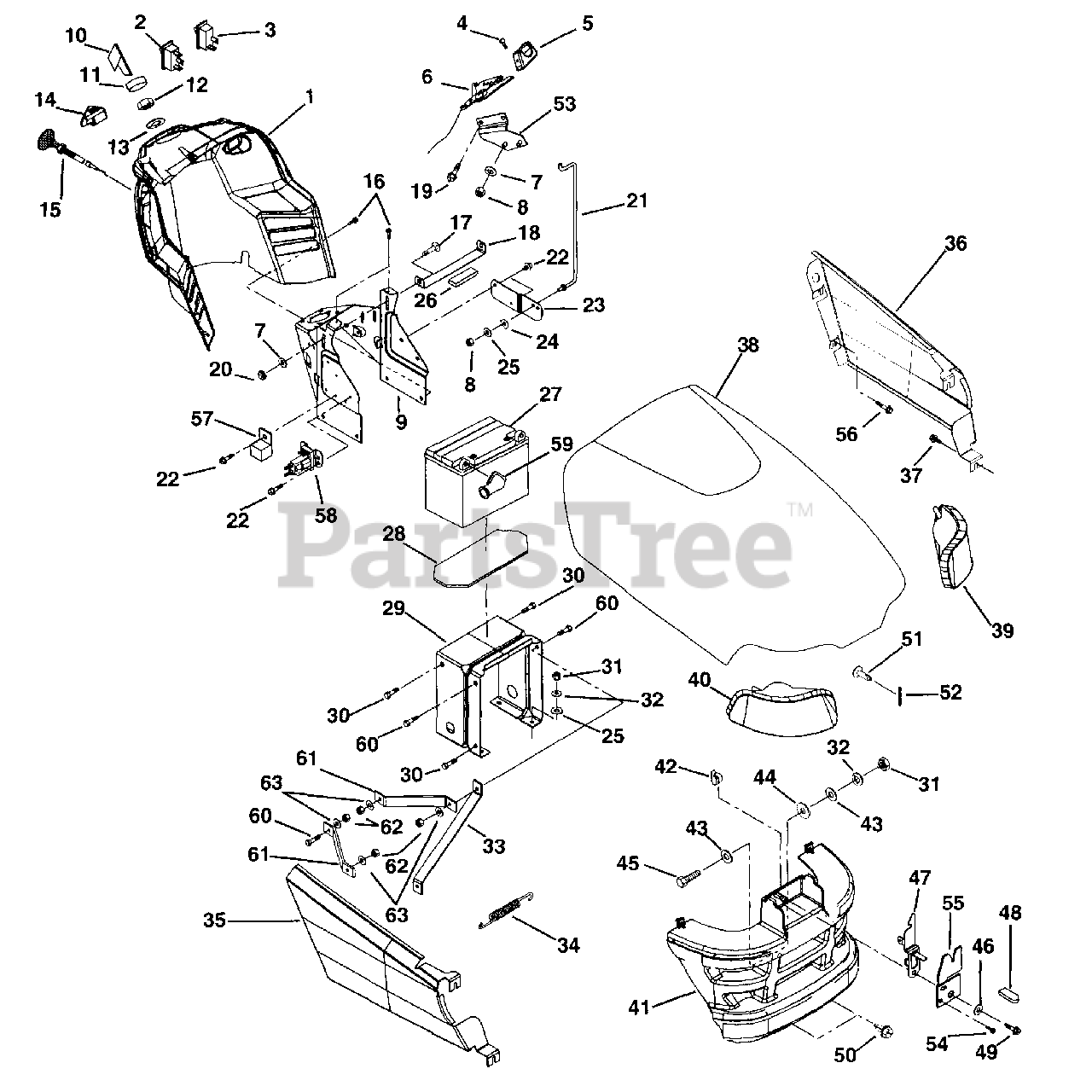

987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Hood And Dash Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

Hood And Dash Parts Diagram

  • Title

1

Gravely 03652900

Dash
(Superseded to 03679300)

$

$

Not available

2

Gravely 03656900

Switch-Cruise

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 03656800

Switch-Light

$

$

Not available

4

Gravely 06004600

Screw-Set 10-24 x .38

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 03653253

Knob-Throttle

$

$

Not available

6

Gravely 06940700

Cable-Throttle

$45.99

$

Usually ships in 4-12 days

0

7

Gravely 06436700

Washer-Flat-Steel .323 x .625 x .062
(Superseded to 06401002)

$1.49

$

In Stock, only 2 left!

0

8

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 03357651

Support-Dash-Top

$

$

Not available

10

Gravely 02460700

Key-w/Cap

$7.99

$

In Stock, Qty 20+

0

11

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 045489

Nut-Panel .562-24
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

13

Gravely 06306900

Washer-Lock Internal .625 x .045
(Superseded to 06300124)

$3.99

$

In Stock, only 1 left!

0

14

03659055

PTO Knob/Shaft Assembly

$

$

Not available

15

Gravely 051537

Choke Cable
(Superseded to 06918300)

$

$

Not available

16

Gravely 07406900

Screw-Tapping 10-24 x .484 Hex Washer Head

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 06215700

Bolt-Round Head Square Neck .312-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 03651451

Holddown-Battery

$

$

Not available

19

Gravely 07411600

Screw-Tapping .250-20 x.37
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 03656600

Rod-Hood, Prop

$

$

Not available

22

Gravely 07412100

Screw-Tapping 10-24 x .37 Hex Washer Head

$0.99

$

Usually ships in 4-12 days

0

23

Gravely 03656700

Mount-Prop Rod

$

$

Not available

24

Gravely 038843

Wave Washer
(Superseded to 01320200)

$3.49

$

In Stock, Qty 7

0

25

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 03645700

Pad-Foam

$26.99

$

Usually ships in 4-12 days

0

27

Gravely 03621100

Battery w/Tube

$

$

Not available

28

Gravely 02530700

Rubber Pad

$

$

Not available

29

Gravely 03651251

Support-Dash Base

$

$

Not available

30

Gravely 07413400

Screw-Tapping .312-18 x .50 Hex Washer Head

$

$

Not available

31

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

32

Gravely 06307400

Washer-Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 03651351

Brace

$

$

Not available

34

Gravely 039139

Spring-Tension .035 x .45 x 2.75
(Superseded to 08314900)

$13.99

$

Usually ships in 4-12 days

0

35

Gravely 03673351

Side Panel-Right Hand

$56.99

$

Usually ships in 4-12 days

0

36

Gravely 03673451

Side Panel-Left Hand

$62.99

$

Usually ships in 4-12 days

0

37

Gravely 07412500

Screw-Tapping 12-16 x .500

$

$

Not available

38

Gravely 53607000

Hood with Decals-GLT
(Superseded to 53611400)

$

$

Not available

39

Gravely 03647300

Headlight-Left Hand

$

$

Not available

40

Gravely 03647200

Headlight-Right Hand

$

$

Not available

41

Gravely 03670400

Grille
(Superseded to 03679200)

$

$

Not available

42

Gravely 07008400

Clip-Harness

$

$

Not available

43

Gravely 06437500

Washer-Flat-Steel .328 x 1.00 x .094
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

44

Gravely 06435500

Washer-Flat-Nylon .375 x 1.00 x .062

$2.49

$

Usually ships in 4-12 days

0

45

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 06440600

Washer-Flat-Steel .281 x 1.250 x .048
(Superseded to 06403700)

$

$

Not available

47

Gravely 03655000

Hood Latch

$

$

Not available

48

Gravely 07526700

Grip .062 x .375 x .750

$

$

Not available

49

Gravely 07413300

Screw-Tapping 12-24 x .50 Hex Washer Head
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

50

Gravely 07413400

Screw-Tapping .312-18 x .50 Hex Washer Head

$

$

Not available

51

Gravely 045342

Clevis Pin .243/.248 x 1 1/2
(Superseded to 00283500)

$3.49

$

Usually ships in 4-12 days

0

52

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 10

0

53

Gravely 03358251

Brace-Throttle Control

$

$

Not available

54

Gravely 07406400

Screw-Tapping 10-12 x .50

$3.49

$

Usually ships in 4-12 days

0

55

Gravely 03665951

Locator-Hood

$5.99

$

Usually ships in 4-12 days

0

56

Gravely 07415000

Screw-Tapping 10-16 x .62

$

$

Not available

57

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

58

Gravely 045071

Solenoid
(Superseded to 03551000)

$34.99

$

In Stock, Qty 15

0

59

Gravely 039619

Insulator
(Superseded to 07505700)

$9.49

$

Usually ships in 4-12 days

0

60

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

61

Gravely 03673251

Bracket-Steering Assembly

$27.99

$

Usually ships in 4-12 days

0

62

Gravely 06530200

Nut-Lock-Jam-Center .375-16
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

63

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
