987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Hanger Arm Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

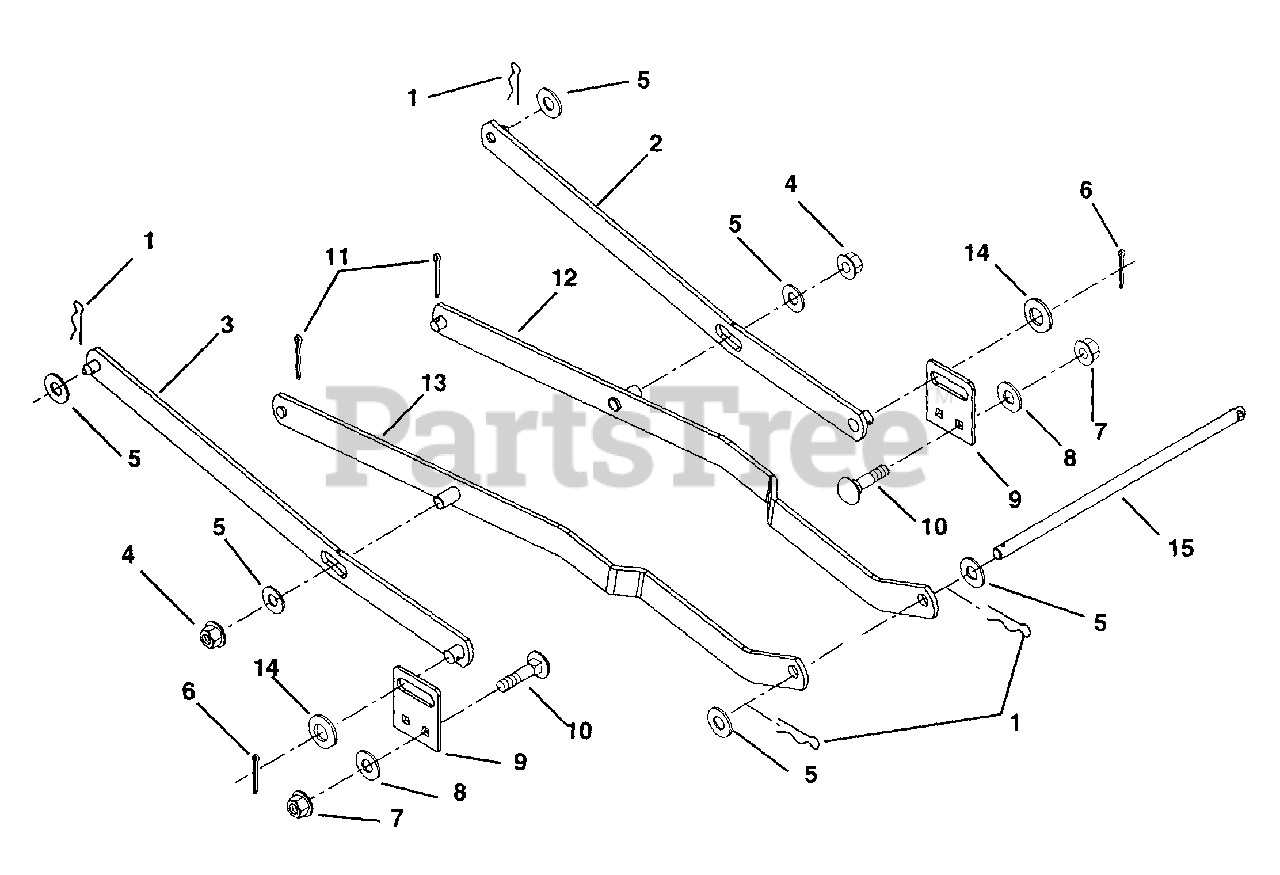

Hanger Arm Parts Diagram

  • Title

1

Gravely 06711900

Pin-Hair External .12 x .31 x 2.37

$2.99

$

In Stock, only 2 left!

0

2

Gravely 03355251

Arm-Lift-Left Rear

$

$

Not available

3

Gravely 03355351

Arm-Lift-Right Rear

$

$

Not available

4

Gravely 06535300

Nut-Locking-Center .62-11 Grade 2

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 06442800

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 06701100

Pin-Cotter .15 x 1.25

$1.99

$

Usually ships in 4-12 days

0

7

Gravely 06535500

Nut-Locking-Center.38-16 Grade 2
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

03355753

Adjuster-Pan

$

$

Not available

10

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

11

Gravely 06712600

Pin-Cotter .12 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 03355051

Arm-Lift-Right Forward

$

$

Not available

13

Gravely 03355151

Arm-Lift-Left Forward

$

$

Not available

14

Gravely 06441900

Washer-Flat-Steel .630 x 1.005 x .062
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 03363400

Rod-Front Hanger

$

$

Not available
