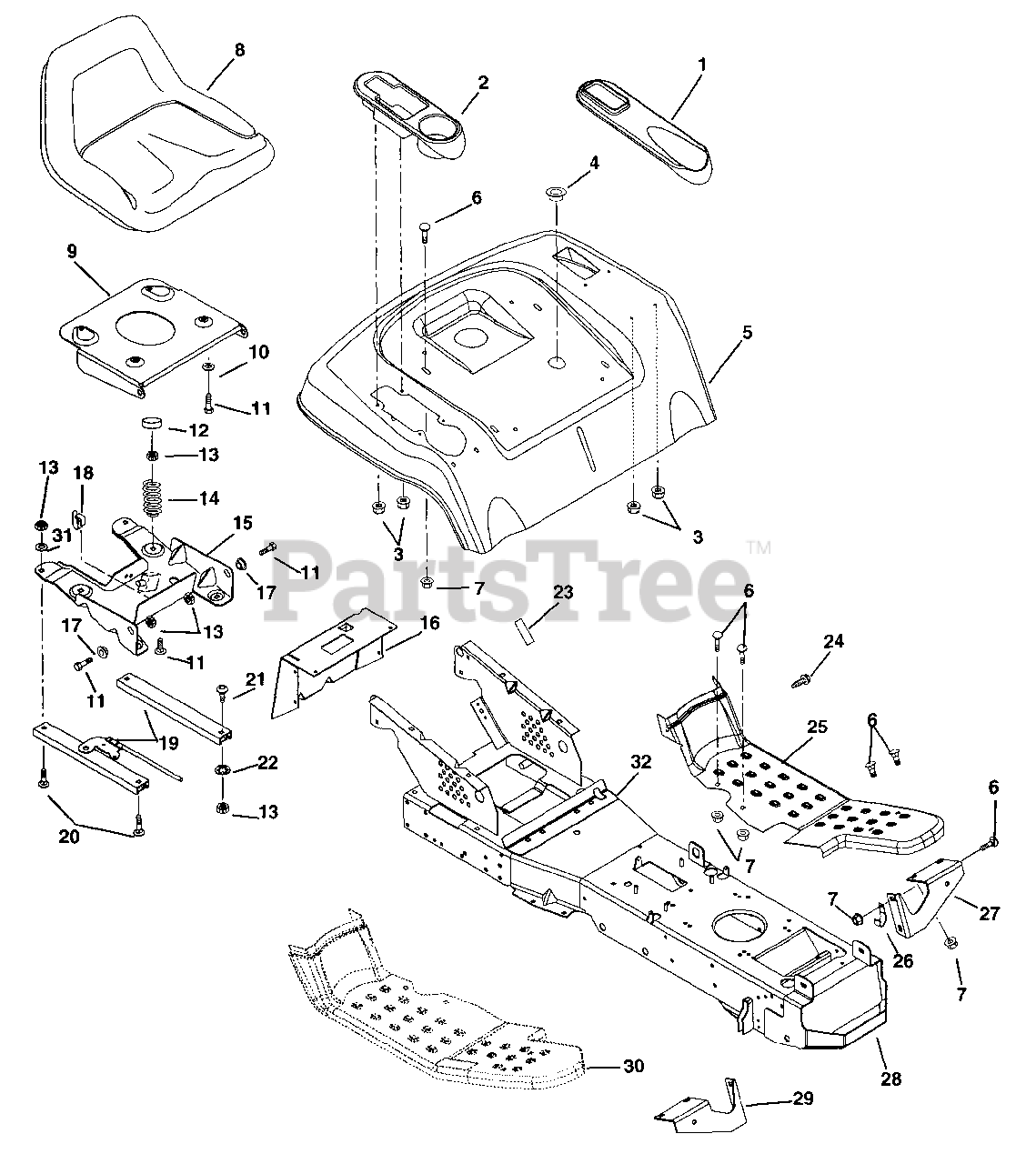

987103 (GT 548 H) - Gravely 48" Garden Tractor, 18hp Briggs & Stratton (SN: 000101 & Above) Frame And Rear Deck Parts Diagram

48" Garden Tractor, 18hp Briggs & Stratton

Frame And Rear Deck Parts Diagram

  • Title
1

Gravely 03650300

Insert - Lift

$

$

Not available

2

Gravely 03652500

Holder-Beverage

$

$

Not available

3

Gravely 045334

Nut-Self-Threading
(Superseded to 07008000)

$2.99

$

In Stock, only 1 left!

0

4

Gravely 07521000

Snap Bushing

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 03649453

Rear Deck

$56.99

$

Usually ships in 4-12 days

0

6

Gravely 06212200

Bolt-Round Head Square Neck .312-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06530400

Nut-Locking Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 03670500

Seat
(Superseded to 00366300)

$

$

Not available

9

Gravely 03650451

Seat Pivot Plate

$

$

Not available

10

Gravely 06307400

Washer-Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07521600

Tube Cap

$1.49

$

In Stock, Qty 6

0

13

Gravely 06529800

Nut-Locking-Center .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 08328200

Spring-Compression .148 x 1.23 x 2.41

$15.99

$

In Stock, only 2 left!

0

15

Gravely 03618151

Seat Box
(Superseded to 03618100)

$

$

Not available

16

$39.99

$

Usually ships in 4-12 days

0

17

Gravely 05516200

Bushing-Flange .325 x .465 x .333 x .685

$22.99

$

Usually ships in 4-12 days

0

18

Gravely 07008400

Clip-Harness

$

$

Not available

19

Gravely 03600800

Seat Slides

$104.99

$

Usually ships in 4-12 days

0

20

Gravely 06214100

Bolt-Round Head Square Neck .31-18 x .75 Grade 2
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 039062

Screw-Cap Button Head .31-18 x .50
(Superseded to 07008100)

$

$

Not available

22

Gravely 06310500

Washer-Lock-Internal .31

$0.99

$

In Stock, only 3 left!

0

23

Gravely 03645700

Pad-Foam

$26.99

$

Usually ships in 4-12 days

0

24

Gravely 07411500

Screw-Tapping .31-18 x .50 Hex Washer Head
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 03649353

Footrest-Left Hand

$

$

Not available

26

Gravely 036518

J-Clamp
(Superseded to 06909400)

$3.49

$

In Stock, Qty 8

0

27

Gravely 03649851

Brace-Foot Rest Left Hand

$

$

Not available

28

Gravely 03673551

Frame-Main

$

$

Not available

29

Gravely 03649951

Brace-Foot Rest Right Hand

$

$

Not available

30

Gravely 03649253

Footrest-Right Hand

$14.99

$

Usually ships in 4-12 days

0

31

Gravely 06308600

Washer-Locking .313
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 03674251

Plate-Frame Reinforcing

$

$

Not available
