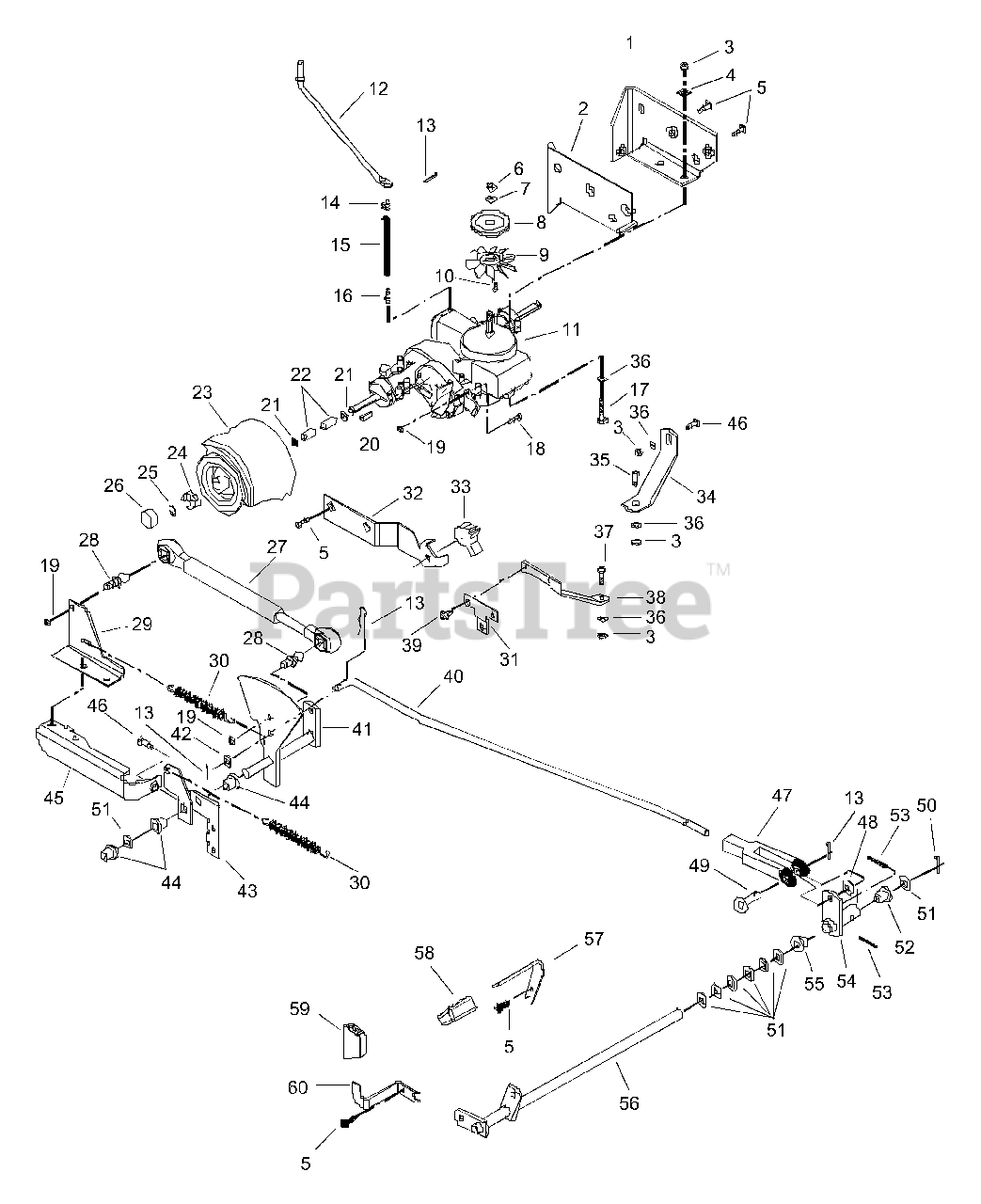

987101 (GT 440) - Gravely 40" Garden Tractor, 15hp Briggs & Stratton (SN: 000101 & Above) Rear Wheel & Hydro Drive Parts Diagram

40" Garden Tractor, 15hp Briggs & Stratton

Rear Wheel & Hydro Drive Parts Diagram

  • Title

1

Gravely 03645900

Mount-Transmission Left Hand

$

$

Not available

2

Gravely 03643900

Mount-Transmission Right Hand

$

$

Not available

3

Gravely 06529800

Nut-Locking-Center .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06439400

Washer-Flat-Steel .328 x .875 x .062

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 07414100

Screw-Tapping .375-16 x .75
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 06539500

Nut-Jam .50-20 Grade 2

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 06307300

Washer-Lock .50 x .125 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

8

Gravely 07321400

Sheave-Transaxle
(Superseded to 01569100)

$56.99

$

In Stock, only 1 left!

0

9

Gravely 045321

Fan-Black Nylon
(Superseded to 03570000)

$35.99

$

Usually ships in 4-12 days

0

10

Gravely 07406900

Screw-Tapping 10-24 x .484

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 03648800

Transaxle-Hyd
(Superseded to 03668900)

$

$

Not available

12

Gravely 03647400

Rod-Transmission Disconnect

$

$

Not available

13

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 8

0

14

Gravely 07026400

Cap-Vent 1/2" Hydro-Gear

$14.99

$

In Stock, only 2 left!

0

15

Gravely 03635100

Hose-Vent .50 ID x 7.50 Long

$

$

Not available

16

Gravely 07026300

Fitting-Straight 1/2" O-Ring Hydro-Gear

$23.99

$

In Stock, only 2 left!

0

17

Gravely 05952600

Bolt-Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06529800

Nut-Locking-Center .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 036282

Key-Square .188 x 2.0 x .188
(Superseded to 06601900)

$

$

Not available

21

Gravely 06441500

Washer-Flat-Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, Qty 13

0

22

Gravely 039530

Bushing-Sleeve .750 x 1.125 x 1.062
(Superseded to 05510400)

$

$

Not available

23

Gravely 07126900

Tire/Wheel Assembly 20 x 8.00-8 2 Ply

$

$

Not available

23

Gravely 07133100

Rim
(Superseded to 07153600)

$

$

Not available

23

Gravely 07133200

Tire 20 x 8.00-8

$102.99

$

Usually ships in 4-12 days

0

24

Gravely 036277

Spindle Cup
(Superseded to 03516900)

$19.99

$

In Stock, only 1 left!

0

25

Gravely 036278

Ring-Retaining-External .750 x .050
(Superseded to 05707400)

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 036202

Hub Cap
(Superseded to 00337700)

$2.99

$

In Stock, Qty 20+

0

27

Gravely 03652100

Damper-Hydraulic

$52.99

$

Usually ships in 4-12 days

0

28

Gravely 03652200

Stud-Ball

$3.49

$

In Stock, only 3 left!

0

29

Gravely 03650900

Anchor-Spring-Top

$

$

Not available

30

Gravely 08320200

Spring-Tension .085 x .60 x 5.13

$13.99

$

Usually ships in 4-12 days

0

31

Gravely 03664900

Support - Shift Arm

$

$

Not available

32

Gravely 03664700

Mount-Magnet

$

$

Not available

33

Gravely 03359700

Magnet-HS

$

$

Not available

34

Gravely 03654700

Strap-Torque Left Hand

$

$

Not available

35

Gravely 05952400

Bolt-Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

36

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 05963700

Bolt-Hex .31-18 x 2.25 Grade 5
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 03664800

Strap-Torque Right Hand

$

$

Not available

39

Gravely 07413400

Screw-Tapping .312-18 x .50

$

$

Not available

40

Gravely 03666800

Rod-Shift

$

$

Not available

41

Gravely 03664600

Arm-Shift

$39.99

$

Usually ships in 4-12 days

0

42

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 03665100

Pivot-Reverse

$

$

Not available

44

Gravely 050144

Bushing-Flange .508 x .645 x .459 x .75
(Superseded to 05518000)

$26.99

$

Usually ships in 4-12 days

0

45

Gravely 03652300

Anchor-Spring-Bottom

$

$

Not available

46

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 034633

Yoke .31-24 x 2.250
(Superseded to 07014700)

$14.99

$

Usually ships in 4-12 days

0

48

Gravely 06444300

Washer-Flat-Steel .390 x .750 x .125

$7.99

$

In Stock, Qty 8

0

49

Gravely 06811800

Pin-Clevis .312 x .822
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

50

Gravely 06707100

Pin-Cotter .12 x 1.0

$0.99

$

In Stock, Qty 10

0

51

Gravely 06441100

Washer-Flat-Steel .520 x .827 x .062
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

52

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

53

Gravely 05804500

Pin-Groove .188 x 1.25

$10.99

$

In Stock, only 4 left!

0

54

Gravely 03651700

Arm & Hub

$

$

Not available

55

Gravely 05520600

Bushing-Flange .502 x 1 x .750

$9.49

$

In Stock, Qty 6

0

56

Gravely 03651800

Shaft-Pedal

$

$

Not available

57

Gravely 03650600

Pedal-Forward

$

$

Not available

58

Gravely 07524000

Cover-Pedal-Forward

$34.99

$

Usually ships in 4-12 days

0

59

Gravely 07524400

Cover-Pedal-Reverse

$

$

Not available

60

Gravely 03650700

Pedal-Reverse

$

$

Not available
