987100 (GT 440) - Gravely 40" Garden Tractor, 15hp Kohler (SN: 000101 & Above) Wiring Diagram Parts Diagram

40" Garden Tractor, 15hp Kohler

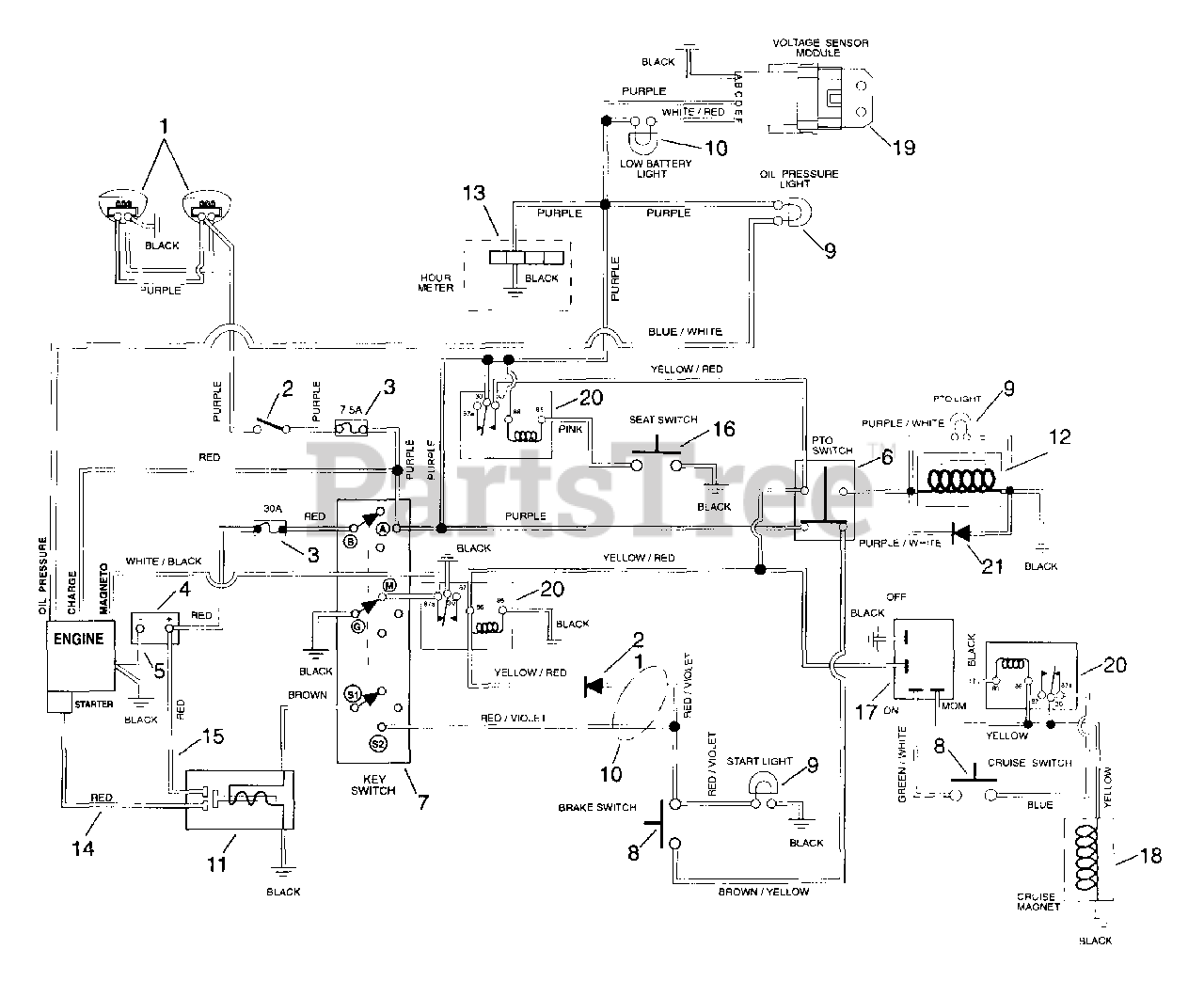

Wiring Diagram Parts Diagram

  • Title
1

Gravely 03647200

Headlights-Right Hand

$

$

Not available

1

Gravely 03647300

Headlights-Left Hand

$

$

Not available

2

Gravely 03656800

Switch-Light

$

$

Not available

3

7.5 AMP Fuse

7.5 AMP Fuse

$

$

Not available

3

30 AMP Fuse

30 AMP Fuse

$

$

Not available

4

Gravely 03634400

Battery W/Tube
(Superseded to 03621100)

$

$

Not available

5

Gravely 036314

Ground Cable
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

6

Gravely 53603800

PTO Knob/Switch Assembly
(Superseded to 00355900)

$82.99

$

Usually ships in 4-12 days

0

7

Gravely 03602300

Key Switch

$26.99

$

Usually ships in 4-12 days

0

8

Gravely 03657100

Switch-Single Pole N.O.

$9.49

$

In Stock, only 2 left!

0

9

#194 Bulb

#194 Bulb

$

$

Not available

10

Gravely 03671800

Wire Harness-1540H Kohler

Note: Model (936026)

$

$

Not available

10

Gravely 03671700

Wire Harness-1548H Kohler

Note: Model (936024)

$

$

Not available

11

Gravely 045071

Solenoid
(Superseded to 03551000)

$34.99

$

In Stock, Qty 14

0

12

Gravely 03643100

Electric Clutch/Brake

Note: Model (936026)

$296.99

$

Usually ships in 4-12 days

0

12

Gravely 03357900

Clutch-Electric-Warner

Note: Model (936026)

$491.99

$

In Stock, only 1 left!

0

13

Gravely 73600800

Hourmeter Kit-Sierra

Note: (Optional)

$

$

Not available

14

Gravely 02743300

Starter Cable 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

15

Gravely 042696

Starter Cable 6.75"
(Superseded to 00145900)

$13.99

$

In Stock, only 1 left!

0

16

Gravely 03654200

Switch-Seat

$

$

Not available

17

Gravely 03656900

Switch-Cruise

$22.99

$

Usually ships in 4-12 days

0

18

$

$

Not available

19

Gravely 03653300

Module-Voltage Sensor

$62.99

$

Usually ships in 4-12 days

0

20

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

21

Gravely 03081700

Molded Diode Plug-Clear Lamp

$26.99

$

Usually ships in 4-12 days

0
