987100 (GT 440) - Gravely 40" Garden Tractor, 15hp Kohler (SN: 000101 & Above) Steering Parts Diagram

40" Garden Tractor, 15hp Kohler

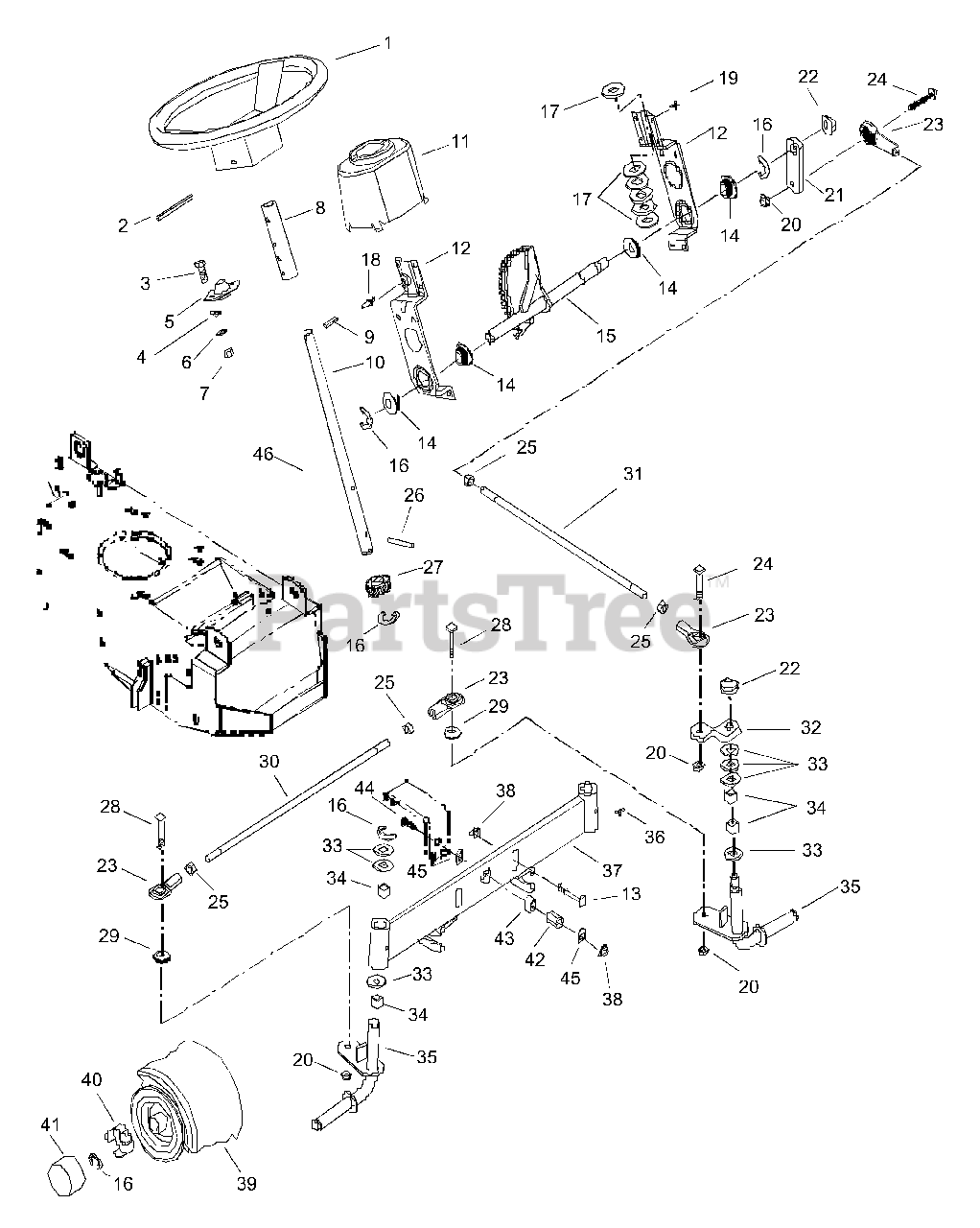

Steering Parts Diagram

  • Title

1

Gravely 03600600

Steering Wheel 13"
(Superseded to 03671200)

$

$

Not available

2

Gravely 05803700

Pin-Roll .250 x 1.75

$0.99

$

In Stock, Qty 20+

0

3

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 036138

Bearing-Flange .751 x 2 Holes x .81
(Superseded to 05402500)

$23.99

$

Usually ships in 4-12 days

0

6

Gravely 06307400

Washer-Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06529200

Nut-Hex .312-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

8

Gravely 03603100

Tube

$

$

Not available

9

Gravely 412281

Pin-Roll .250 x 1.000
(Superseded to 05808400)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 03351700

Column, Steering

$124.99

$

Usually ships in 4-12 days

0

11

Gravely 03649600

Cone-Steering Column

$

$

Not available

12

Gravely 03351600

Bracket, Steering Gear
(Superseded to 53408100)

$362.99

$

Usually ships in 4-12 days

0

13

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

14

Gravely 036142

Bushing-Flange .750 x 1.093 x .625 x 1.375
(Superseded to 05508000)

$19.99

$

Usually ships in 4-12 days

0

15

Gravely 03493500

Gear, Steering
(Superseded to 03669600)

$155.99

$

Usually ships in 4-12 days

0

16

Gravely 036278

Ring-Retaining-External .750 x .050
(Superseded to 05707400)

$2.49

$

In Stock, only 1 left!

0

17

Gravely 06441500

Washer-Flat-Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

18

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

19

Gravely 07411600

Screw-Tapping .250-20 x .37
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06529600

Nut-Locking-Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 03351800

Arm, Steering Rod

$

$

Not available

22

Gravely 06538000

Nut-Locking .563-18-Grade 5

$

$

Not available

23

Gravely 044753

Rod End
(Superseded to 03563100)

$15.99

$

In Stock, only 2 left!

0

24

Gravely 039451

Bolt-Button Head .38-16 x 1.25 Grade 5
(Superseded to 07006300)

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

26

Gravely 036144

Pin
(Superseded to 02913300)

$17.99

$

Usually ships in 4-12 days

0

27

Gravely 036145

Pinion Gear-Steering
(Superseded to 02902100)

$64.99

$

In Stock, only 1 left!

0

28

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 05522100

Bushing-Sleeve .377 x .624 x .370

$4.99

$

Usually ships in 4-12 days

0

30

Gravely 03647900

Rod-Tie
(Superseded to 03668500)

$77.99

$

Usually ships in 4-12 days

0

31

Gravely 03648000

Link-Drag
(Superseded to 03668600)

$

$

Not available

32

Gravely 03664300

Arm-Steering Spindle

$

$

Not available

33

Gravely 06441500

Washer-Flat-Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

34

Gravely 05505700

Bushing-Sleeve .750 x .814 x 1.000

$17.99

$

In Stock, only 1 left!

0

35

Gravely 03664400

Spindle Left Hand

$293.99

$

Usually ships in 4-12 days

0

35

Gravely 03664500

Spindle Right Hand

$129.99

$

Usually ships in 4-12 days

0

36

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

37

Gravely 03646600

Axle, Front

$

$

Not available

38

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 07149400

Tire/Wheel Assembly 15 x 6.00-6

$148.99

$

Usually ships in 4-12 days

0

39

Gravely 07136600

Rim
(Superseded to 07149500)

$

$

Not available

39

Gravely 05520700

Bushing-3/4 Bore
(Superseded to 05434900)

$13.99

$

In Stock, Qty 20+

0

39

Gravely 07047000

Fitting-Lube .25-28 x .97

$

$

Not available

39

Gravely 07109900

Tire-Turf Saver 15 x 6.00-6 2 Ply

$

$

Not available

39

Gravely 05434900

Bearing-Ball

$13.99

$

In Stock, Qty 20+

0

40

Gravely 036277

Spindle Cup
(Superseded to 03516900)

$19.99

$

In Stock, only 1 left!

0

41

Gravely 036202

Hub Cap
(Superseded to 00337700)

$2.99

$

In Stock, Qty 20+

0

42

Gravely 05522700

Bushing-Sleeve .377 x .623 x .775

$15.99

$

Usually ships in 4-12 days

0

43

Gravely 05522000

Bushing-Sleeve .626 x 1.000 x .524

$90.99

$

Usually ships in 4-12 days

0

44

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 06443400

Washer-Flat-Steel .390 x 1.500 x .125
(Superseded to 06401106)

$3.49

$

In Stock, Qty 11

0

46

Gravely 036146

Pin-Roll .188 x 1.13
(Superseded to 05802100)

$1.99

$

Usually ships in 4-12 days

0
