987100 (GT 440) - Gravely 40" Garden Tractor, 15hp Kohler (SN: 000101 & Above) 40" Mower Deck Parts Diagram

40" Garden Tractor, 15hp Kohler

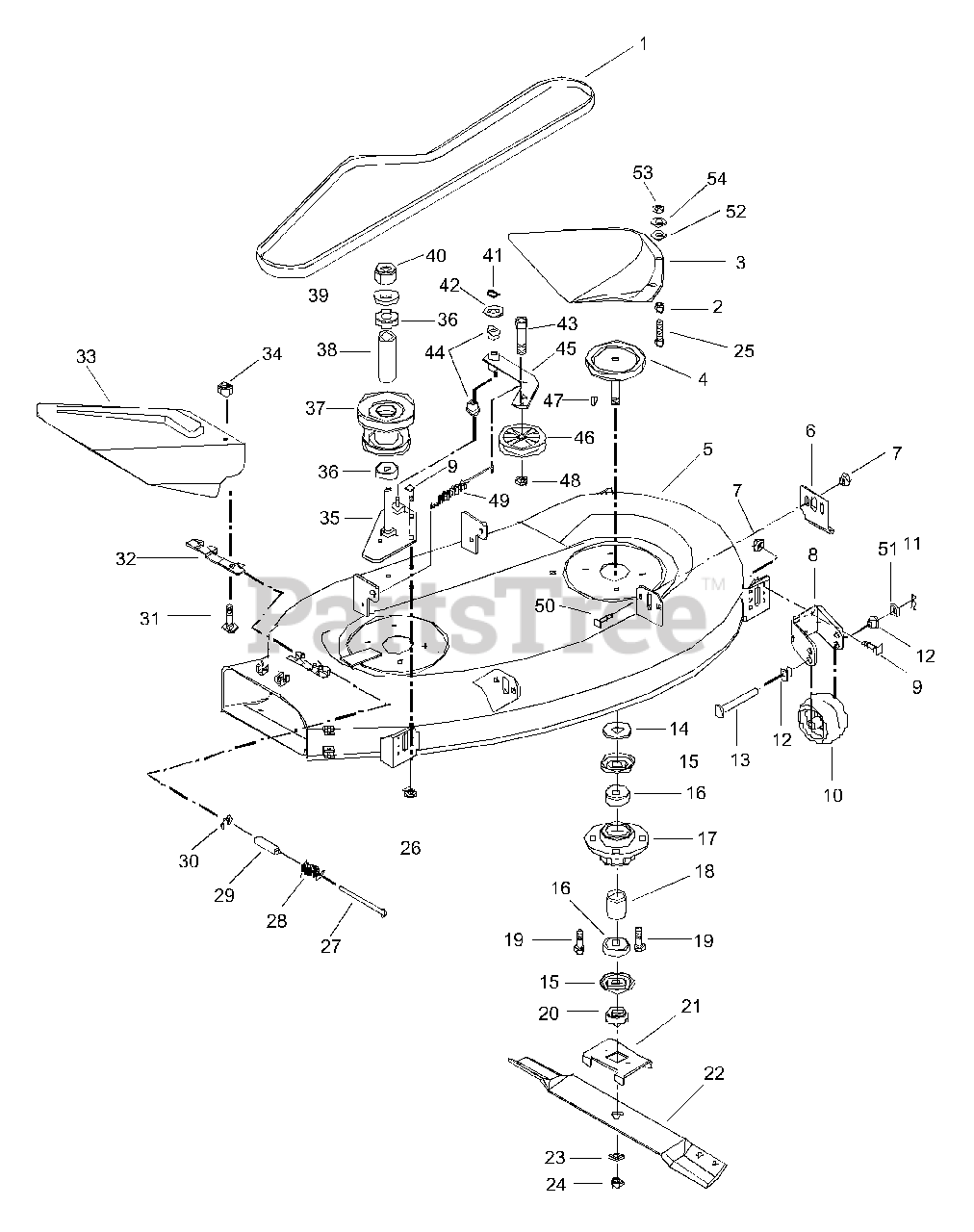

40" Mower Deck Parts Diagram

  • Title

1

Gravely 07229600

V-Belt

$51.99

$

In Stock, only 2 left!

0

2

Gravely 06529600

Nut-Locking-Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 01520100

Cover

$59.99

$

Usually ships in 4-12 days

0

4

Gravely 03615400

Left Spindle Sheave

$90.99

$

Usually ships in 4-12 days

0

4

Gravely 03615300

Right Spindle Sheave

$75.99

$

Usually ships in 4-12 days

0

5

Gravely 53607100

40" Deck w/Decals

$

$

Not available

5

Gravely 53607200

40" Deck Complete

$

$

Not available

6

Gravely 03581753

Mower Adjustment Tab
(Superseded to 03581700)

$

$

Not available

7

Gravely 06530400

Nut-Locking-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 02747653

Roller Clevis
(Superseded to 02747651)

$27.99

$

In Stock, only 1 left!

0

9

Gravely 06212200

Bolt-Round Head Square Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 050825

Roller
(Superseded to 02745400)

$15.99

$

In Stock, Qty 20+

0

11

Gravely 06713500

Pin-Hair-Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 036241

Bushing-Flange .372 x .500 x .312 x .625
(Superseded to 05503600)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 02747500

Clevis Pin .368/.373 x 3.25

$5.99

$

In Stock, only 1 left!

0

14

Gravely 06444200

Washer-Flat-Steel .755 x 1.250 x .125
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

15

Gravely 00341900

Bearing Slinger

$22.99

$

In Stock, only 2 left!

0

16

Gravely 035925

Bearing-Ball .750 x 1.781 x .61
(Superseded to 05412000)

$13.99

$

In Stock, Qty 7

0

17

Gravely 03625000

Spindle Housing

$168.99

$

Usually ships in 4-12 days

0

18

Gravely 035971

Spacer .751 x 1.000 x 1.140
(Superseded to 02526400)

$26.99

$

Usually ships in 4-12 days

0

19

Gravely 06212000

Bolt-Round Head Square Neck .38-16 x 1.0 Grade 5
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 039559

Retainer Hub
(Superseded to 03037500)

$71.99

$

In Stock, only 2 left!

0

21

Gravely 03485500

Blade Tray 48

$20.99

$

In Stock, only 1 left!

0

22

Gravely 03624700

Blade

$31.99

$

In Stock, Qty 5

0

23

Gravely 06310300

Washer-Lock .750 x .188

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06537700

Nut-Jam .75-10

$2.49

$

In Stock, only 2 left!

0

25

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06530400

Nut-Locking-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 03624200

Pin

$51.99

$

In Stock, only 1 left!

0

28

Gravely 035996

Spring-Torsion .095 x .50 x 1.0
(Superseded to 08307200)

$20.99

$

Usually ships in 4-12 days

0

29

Gravely 035997

Bushing
(Superseded to 02202900)

$5.99

$

In Stock, only 4 left!

0

30

Gravely 05706300

Ring-Retaining-External .313 x .025

$0.99

$

Usually ships in 4-12 days

0

31

Gravely 06214300

Bolt-Round Head Square Neck .25-20 x .50
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 040377

Hinge Plate
(Superseded to 02709551)

$27.99

$

In Stock, only 1 left!

0

33

Gravely 03609800

40" Deflector

$89.99

$

Usually ships in 4-12 days

0

34

Gravely 06530100

Nut-Locking-Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 03624900

Mount Plate 40"

$109.99

$

Usually ships in 4-12 days

0

36

Gravely 05403900

Bearing-Ball .625 x 1.375 x .44
(Superseded to 05435100)

$14.99

$

In Stock, Qty 20+

0

37

Gravely 03602200

Jackshaft Pulley

$219.99

$

Usually ships in 4-12 days

0

38

Gravely 03615500

Spacer .640 x .880 x 2.768

$27.99

$

In Stock, only 1 left!

0

39

Gravely 06436100

Washer-Flat-Steel .630 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 06530300

Nut-Locking-Nylon .625-18
(Superseded to 06500936)

$3.99

$

In Stock, only 3 left!

0

41

Gravely 05710200

Ring-Retaining-External .500 x .042

$0.99

$

In Stock, Qty 20+

0

42

Gravely 06436600

Washer-Flat-Steel .505 x .880 x .072
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

43

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

44

Gravely 036057

Bushing-Flange .500 x .625 x .312 x .750
(Superseded to 05503700)

$0.99

$

In Stock, Qty 20+

0

45

Gravely 03623800

Idler Arm
(Superseded to 03623851)

$60.99

$

Usually ships in 4-12 days

0

46

Gravely 07309300

Idler-Flat 3.00 x .38

$37.99

$

In Stock, only 1 left!

0

47

Gravely 06604200

Key-Woodruff .188 x .625 x .31
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

48

Gravely 06529600

Nut-Locking-Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 083290

Spring-Tension .113 x .812 x 7.000
(Superseded to 08329000)

$20.99

$

Usually ships in 4-12 days

0

50

Gravely 06214100

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

51

Gravely 038840

Washer-Plastic .390 x .875 x .062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

52

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

53

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

54

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0
