987072 - Gravely Lawn Tractor, 20.5hp Robin Subaru, With Hydraulic Lift (SN: 000101 & Above) Steering - 20.5 H.P. Units Parts Diagram

Lawn Tractor, 20.5hp Robin Subaru, With Hydraulic Lift

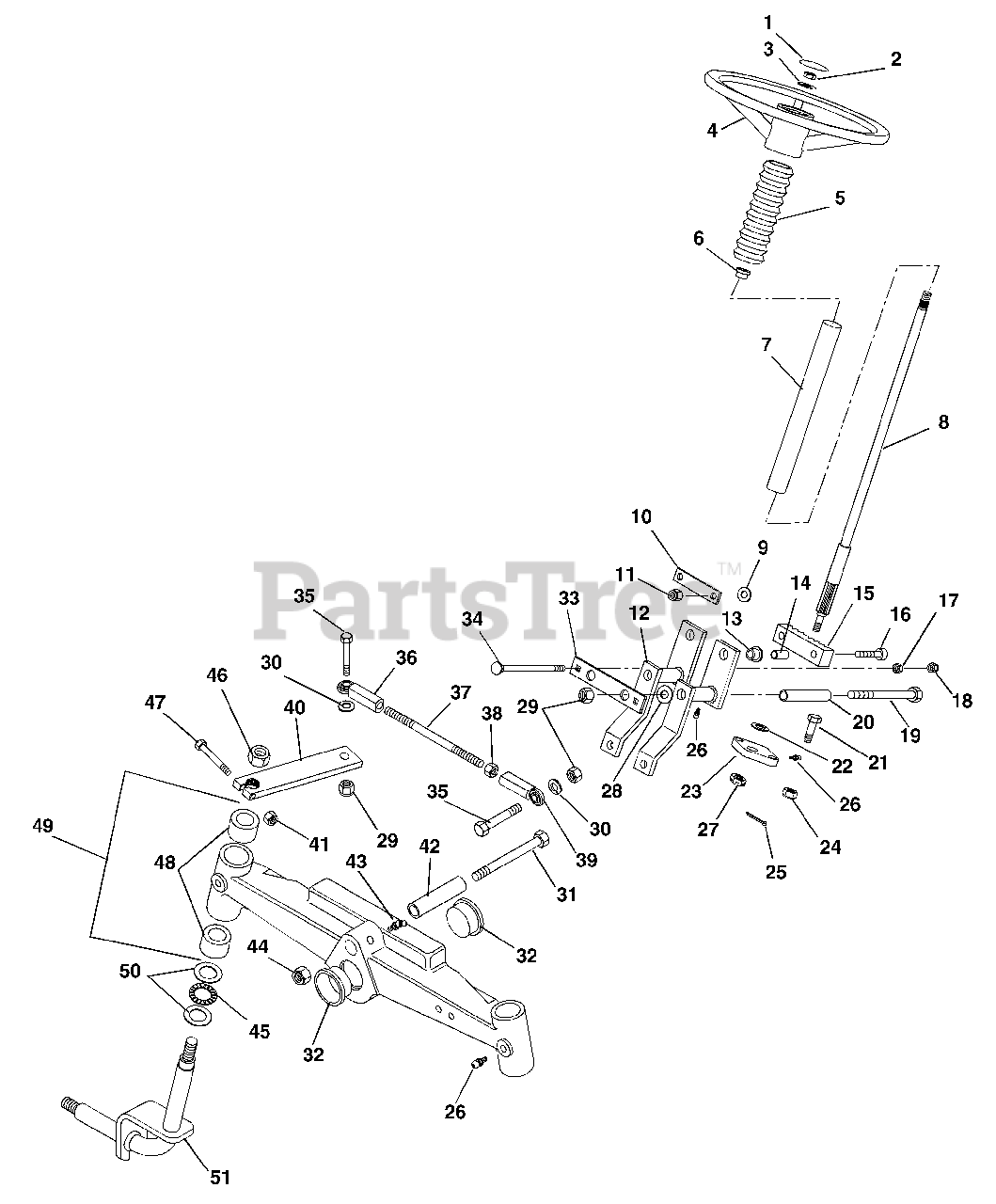

Steering - 20.5 H.P. Units Parts Diagram

  • Title

1

Gravely 031426

Cap, Steering Wheel
(Superseded to 03489800)

$

$

Not available

2

Gravely 06539300

Nut-Jam .625-11
(Superseded to 06500200)

$

$

Not available

3

Gravely 06442800

Washer-Flat-Steel .66 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 031281

Steering Wheel
(Superseded to 03066600)

$

$

Not available

5

Gravely 047311

Boot, Steering Column
(Superseded to 08739200)

$

$

Not available

6

Gravely 010174

Bushing-Flange .76 x 1.00 x .58 x 1.48 Nylon
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 040984

Tube, Plastic 1.00 I.D.
(Superseded to 07525500)

$

$

Not available

8

Gravely 047530

Weldment, Steering Shaft
(Superseded to 08780900)

$

$

Not available

9

Gravely 06435700

Washer-Flat-Steel .38 x .88 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 021246

Strap, Rack and Pinion
(Superseded to 08723000)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 045643

Weldment, Steering Arm
(Superseded to 08769800)

$

$

Not available

13

Gravely 021077

Bushing-Flange .63 x .88 x .47 x 1.12
(Superseded to 05519100)

$7.49

$

Usually ships in 4-12 days

0

14

Gravely 021076

Bushing,Steel .39 x .62 x .68 Steel
(Superseded to 08902300)

$27.99

$

In Stock, only 2 left!

0

15

Gravely 051851

Grade, Rack
(Superseded to 08791700)

$

$

Not available

16

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

17

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

18

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05961800

Bolt-Hex .50-13 x 6.00 Grade 5

$

$

Not available

20

Gravely 021078

Sleeve, Pivot
(Superseded to 08721900)

$

$

Not available

21

Gravely 05962800

Bolt-Hex .44-14 x 1.50 Grade 5
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

22

Gravely 035344

Washer-Thrust .51 x .92 x .031
(Superseded to 06426300)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 035064

Support, Steering Shaft
(Superseded to 08737200)

$

$

Not available

24

Gravely 06536400

Nut-Locking-Center .44-14
(Superseded to 06500930)

$2.99

$

In Stock, Qty 12

0

25

Gravely 06707000

Pin-Cotter .09 x 1.00
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

26

Gravely 411027

Fitting-Lube .25-28 x .26
(Superseded to 07012600)

$

$

Not available

27

Gravely 06539100

Nut-Hex-Slotted .50-13

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 06413300

Washer-Hardened-Thrust .76 x 1.25 x .094

$5.99

$

In Stock, only 2 left!

0

29

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

30

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

31

Gravely 05968800

Bolt-Hex .75-10 x 4.50 Grade 5

$9.49

$

In Stock, only 1 left!

0

32

Gravely 018785

Cap, Front Axle
(Superseded to 07520300)

$3.49

$

In Stock, only 3 left!

0

33

Gravely 021079

Plate, Adjustment
(Superseded to 08722000)

$22.99

$

Usually ships in 4-12 days

0

34

Gravely 06222800

Bolt-Round Head Square Neck .31-18 x 5.50 Grade 5

$

$

Not available

35

Gravely 05961000

Bolt-Hex .50-13 x 2.25 Grade 5
(Superseded to 05901835)

$3.49

$

In Stock, Qty 5

0

36

Gravely 044941

Rod End, Steering Right Hand
(Superseded to 08763700)

$56.99

$

Usually ships in 4-12 days

0

37

Gravely 044940

Tie Rod, Steering
(Superseded to 08655900)

$103.99

$

Usually ships in 4-12 days

0

38

Gravely 06539500

Nut-Jam .50-20 Grade 2

$2.49

$

Usually ships in 4-12 days

0

39

Gravely 044942

Rod End, Steering Left Hand
(Superseded to 08763800)

$

$

Not available

40

Gravely 044939

Arm, Tie Rod Axle
(Superseded to 08763600)

$109.99

$

Usually ships in 4-12 days

0

41

Gravely 06537000

Nut-Center-Lock .31-24

$

$

Not available

42

Gravely 023237

Tube, Axle Pivot
(Superseded to 08725200)

$68.99

$

In Stock, Qty 7

0

43

Gravely 411031

Fitting-Lube 45 Degree
(Superseded to 07012700)

$3.99

$

Usually ships in 4-12 days

0

44

Gravely 06535400

Nut-Locking-Center .75-10

$5.99

$

Usually ships in 4-12 days

0

45

Gravely 021543

Bearing-Thrust .88 x .43 x .078
(Superseded to 05422000)

$11.99

$

In Stock, only 3 left!

0

46

Gravely 06535600

Nut-Hex .62-11

$2.99

$

In Stock, only 3 left!

0

47

Gravely 05968000

Bolt-Hex .31-24 x 1.75 Gear 5
(Superseded to 05902007)

$2.99

$

In Stock, Qty 11

0

48

Gravely 043359

Bushing-Sleeve .87 x 1.00 x 1.00
(Superseded to 05516600)

$21.99

$

Usually ships in 4-12 days

0

49

Gravely 045400

Axle, Steering
(Superseded to 08766900)

$

$

Not available

50

Gravely 021541

Washer-Thrust .88 x 1.43 x .032
(Superseded to 06426100)

$11.99

$

In Stock, only 3 left!

0

51

Gravely 018463

Weldment, King Pin
(Superseded to 08707700)

$255.99

$

Usually ships in 4-12 days

0
