987071 - Gravely Lawn Tractor, 13.5hp Robin Subaru, With Hydraulic Lift (SN: 000101 & Above) Number Thirteen - Transmission Cover Assembly Parts Diagram

Lawn Tractor, 13.5hp Robin Subaru, With Hydraulic Lift

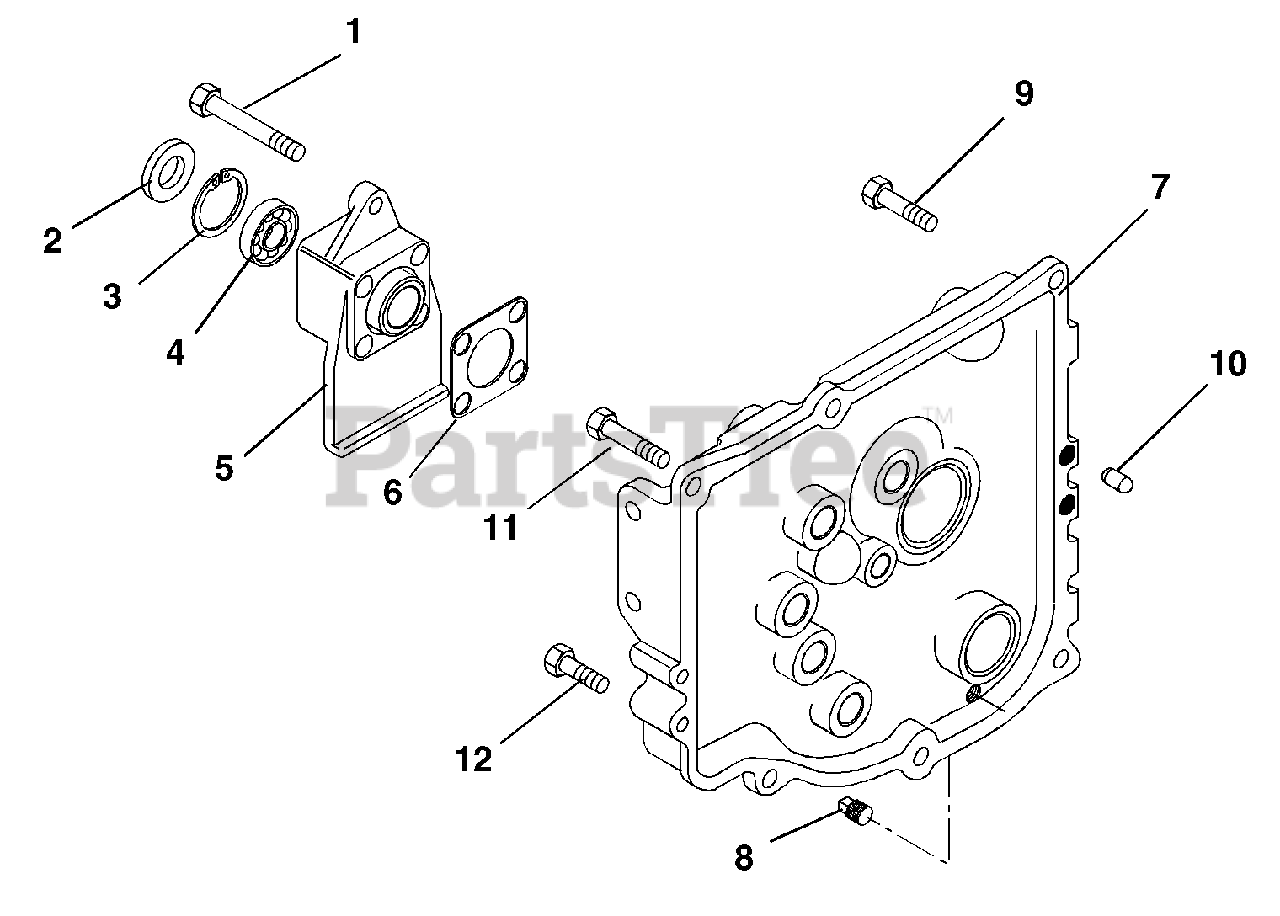

Number Thirteen - Transmission Cover Assembly Parts Diagram

  • Title

1

Gravely 05960000

Bolt-Hex .50-13 X 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

2

Gravely 051096

Seal 1.25 x 2.25 x .50
(Superseded to 05618200)

$21.99

$

In Stock, only 1 left!

0

3

Gravely 018812

Ring-Retaining-External 2.49 x .078
(Superseded to 05712900)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 050473

Bearing-Ball 1.25 x 2.25 x .50 Sealed
(Superseded to 05426600)

$37.99

$

Usually ships in 4-12 days

0

5

Gravely 046061

Axle Bearing Retainer
(Superseded to 08775300)

$

$

Not available

6

Gravely 018030

Gasket
(Superseded to 08701800)

$6.99

$

In Stock, Qty 10

0

7

Gravely 050117

Assembly, Transmission Cover
(Superseded to 08785100)

$

$

Not available

8

Gravely 070238

Plug-Pipe .38 Square Head Unfinished Steel
(Superseded to 07023800)

$

$

Not available

9

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

10

Gravely 018089

Pin-Dowel .38 x .63
(Superseded to 05807600)

$

$

Not available

11

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0
