987071 - Gravely Lawn Tractor, 13.5hp Robin Subaru, With Hydraulic Lift (SN: 000101 & Above) Number Eight Shaft - Differential Assembly Parts Diagram

Lawn Tractor, 13.5hp Robin Subaru, With Hydraulic Lift

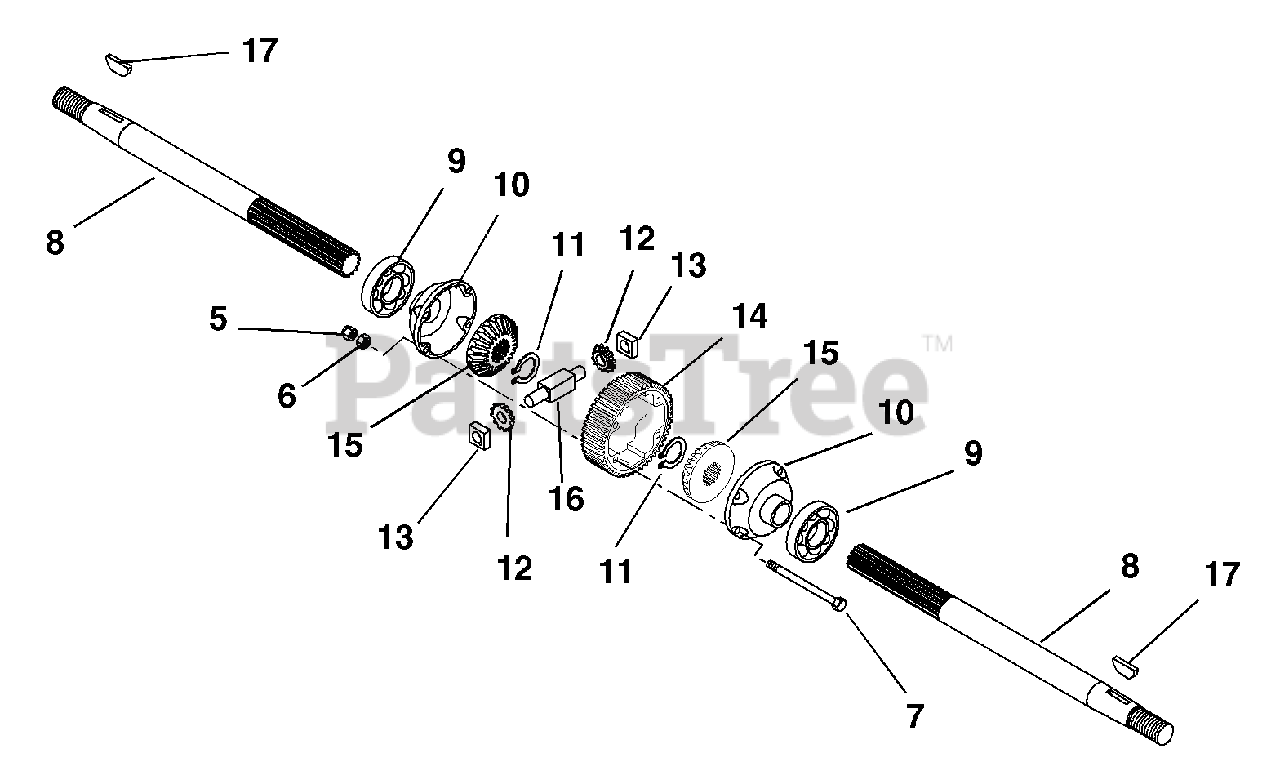

Number Eight Shaft - Differential Assembly Parts Diagram

  • Title

5

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 020514

Nut-Hex .31-18 Grade 8
(Superseded to 06521400)

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 023712

Bolt-Hex .31-18 x 2.75 Grade 8
(Superseded to 05941700)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 050116

Axle, Bevel Gear Differential
(Superseded to 08785000)

$

$

Not available

9

Gravely 046014

Bearing-Ball 1.57 x 2.68 x .59
(Superseded to 05426000)

$39.99

$

Usually ships in 4-12 days

0

10

Gravely 046013

Cap, Differential End
(Superseded to 08774400)

$91.99

$

Usually ships in 4-12 days

0

11

Gravely 021608

Ring-Retaining-External 1.15 x .093
(Superseded to 05713800)

$

$

Not available

12

Gravely 019952

Pinion Bevel
(Superseded to 08717100)

$

$

Not available

13

Gravely 046376

Block, Drive
(Superseded to 08779000)

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 023531

Gear, Final Drive
(Superseded to 08725400)

$

$

Not available

15

Gravely 046012

Gear, Bevel
(Superseded to 08774300)

$96.99

$

Usually ships in 4-12 days

0

16

Gravely 019954

Pin, Spider Pinion
(Superseded to 08717200)

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 431787

Key-Woodruff .19 x .63
(Superseded to 06609300)

$2.99

$

In Stock, Qty 11

0
