987070 - Gravely Lawn Tractor, 16hp Briggs & Stratton, With Hydraulic Lift (SN: 000101 & Above) Number Twelve - Transmission Case Assembly Parts Diagram

Lawn Tractor, 16hp Briggs & Stratton, With Hydraulic Lift

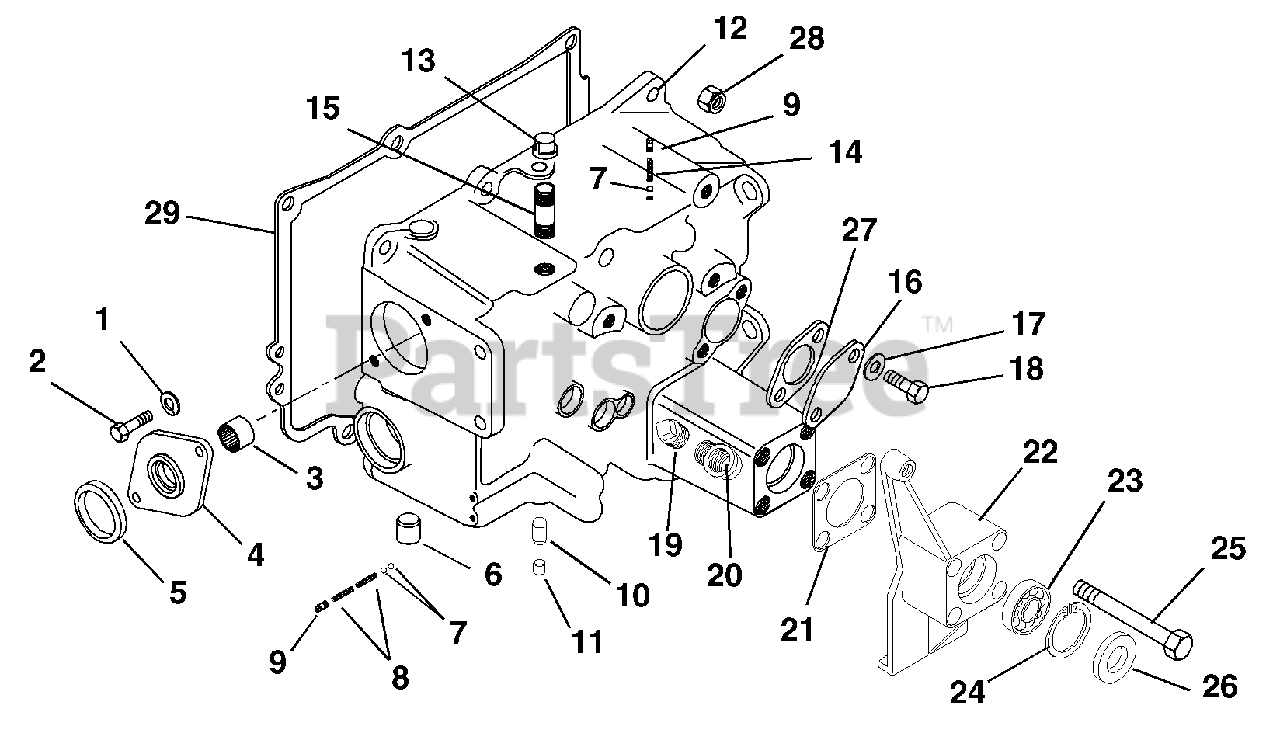

Number Twelve - Transmission Case Assembly Parts Diagram

  • Title

1

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 009660

Bearing-Needle .75 x 1.00 x .50
(Superseded to 05427100)

$

$

Not available

4

Gravely 046302

Cap, Front PTO
(Superseded to 08778300)

$

$

Not available

5

Gravely 015137

Seal .75 x 1.25 x .136
(Superseded to 05613800)

$12.99

$

In Stock, Qty 6

0

6

Gravely 07704100

Plug, Cup .50

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 274301

Ball .31
(Superseded to 05429900)

$

$

Not available

8

Gravely 017936

Spring-Compression .045 x .30 x 1.50
(Superseded to 08327700)

$

$

Not available

9

Gravely 103877

Plug-Pipe .12 Square Head Unfinished Steel
(Superseded to 07023700)

$

$

Not available

10

Gravely 018200

Pin, Interlock
(Superseded to 08706400)

$

$

Not available

11

Gravely 421743

Plug, Cup .38
(Superseded to 07702700)

$

$

Not available

12

Gravely 050115

Assembly, Transmission Case
(Superseded to 08784900)

$1034.99

$

Usually ships in 4-12 days

0

13

Gravely 019472

Cap, Pipe .50 NPT
(Superseded to 08715400)

$

$

Not available

14

Gravely 024772

Spring-Compression .045 x .30 x .94
(Superseded to 08330400)

$

$

Not available

15

Gravely 07024300

Nipple, Pipe .50 x 2.50 Unfinished Steel

$

$

Not available

16

Gravely 018421

Plate, Cover
(Superseded to 08707500)

$

$

Not available

17

Gravely 06436200

Washer-Flat-Steel .41 x .81 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07023900

Plug-Pipe .50 Square Head Unfinished Steel

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 07024000

Elbow .50 x 90 Straight Unfinished

$

$

Not available

21

Gravely 018030

Gasket
(Superseded to 08701800)

$6.99

$

In Stock, Qty 10

0

22

Gravely 042976

Retainer, Axle Bearing
(Superseded to 08760200)

$

$

Not available

23

Gravely 050743

Bearing Ball 1.25 x 2.25 x .50

$

$

Not available

24

Gravely 018812

Ring-Retaining-External 2.49 x .078
(Superseded to 05712900)

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 05960000

Bolt-Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 051096

Seal 1.25 x 2.25 x .50
(Superseded to 05618200)

$21.99

$

In Stock, only 1 left!

0

27

Gravely 08702700

Gasket, Cover Plate

$15.99

$

In Stock, only 1 left!

0

28

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 018027

Gasket-Transmission Cover
(Superseded to 08721800)

$32.99

$

In Stock, only 1 left!

0
