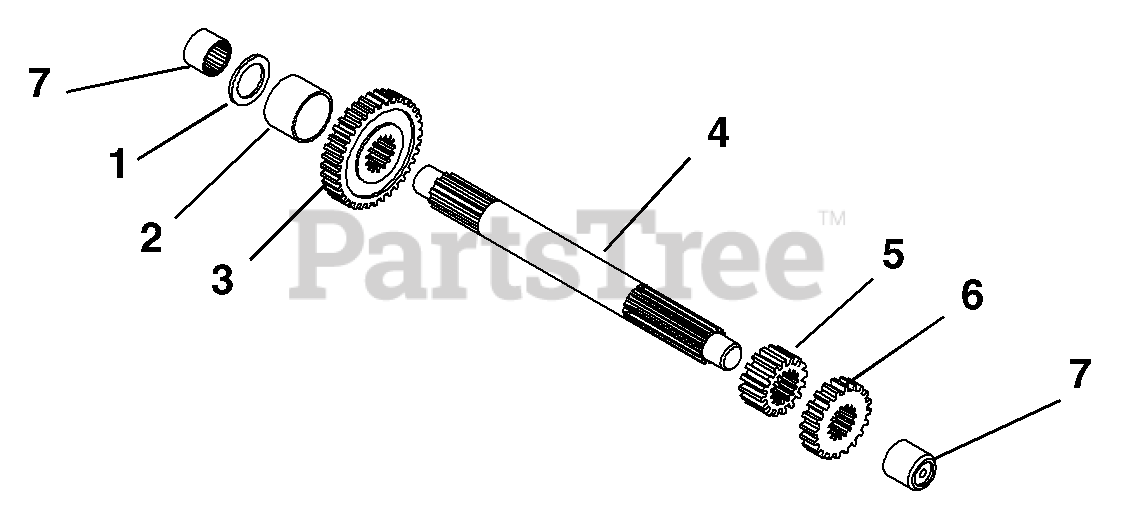

987070 - Gravely Lawn Tractor, 16hp Briggs & Stratton, With Hydraulic Lift (SN: 000101 & Above) Number Three Shaft - 3rd And 4th Gear Parts Diagram

Lawn Tractor, 16hp Briggs & Stratton, With Hydraulic Lift

Number Three Shaft - 3rd And 4th Gear Parts Diagram

  • Title

1

Gravely 018000

Washer-Thrust .06 x 1.15 x .093
(Superseded to 06426200)

$

$

Not available

2

Gravely 017999

Bushing-Sleeve Steel 1.03 x 1.13 x .46
(Superseded to 08727600)

$

$

Not available

3

Gravely 019535

Gear
(Superseded to 08715600)

$

$

Not available

4

Gravely 017997

Shaft, Splined
(Superseded to 08704900)

$

$

Not available

5

Gravely 017992

Gear, 10 Diametral Pitch 16 Teeth x .75
(Superseded to 08704600)

$68.99

$

Usually ships in 4-12 days

0

6

Gravely 015118

Gear, 10 Diametral Pitch 20 Teeth x .60
(Superseded to 08701400)

$

$

Not available

7

Gravely 017914

Bearing-Needle .63 x .81 x .75
(Superseded to 05420200)

$9.49

$

Usually ships in 4-12 days

0
