987070 - Gravely Lawn Tractor, 16hp Briggs & Stratton, With Hydraulic Lift (SN: 000101 & Above) Number Six Shaft - Brake / Sliding Gear Parts Diagram

Lawn Tractor, 16hp Briggs & Stratton, With Hydraulic Lift

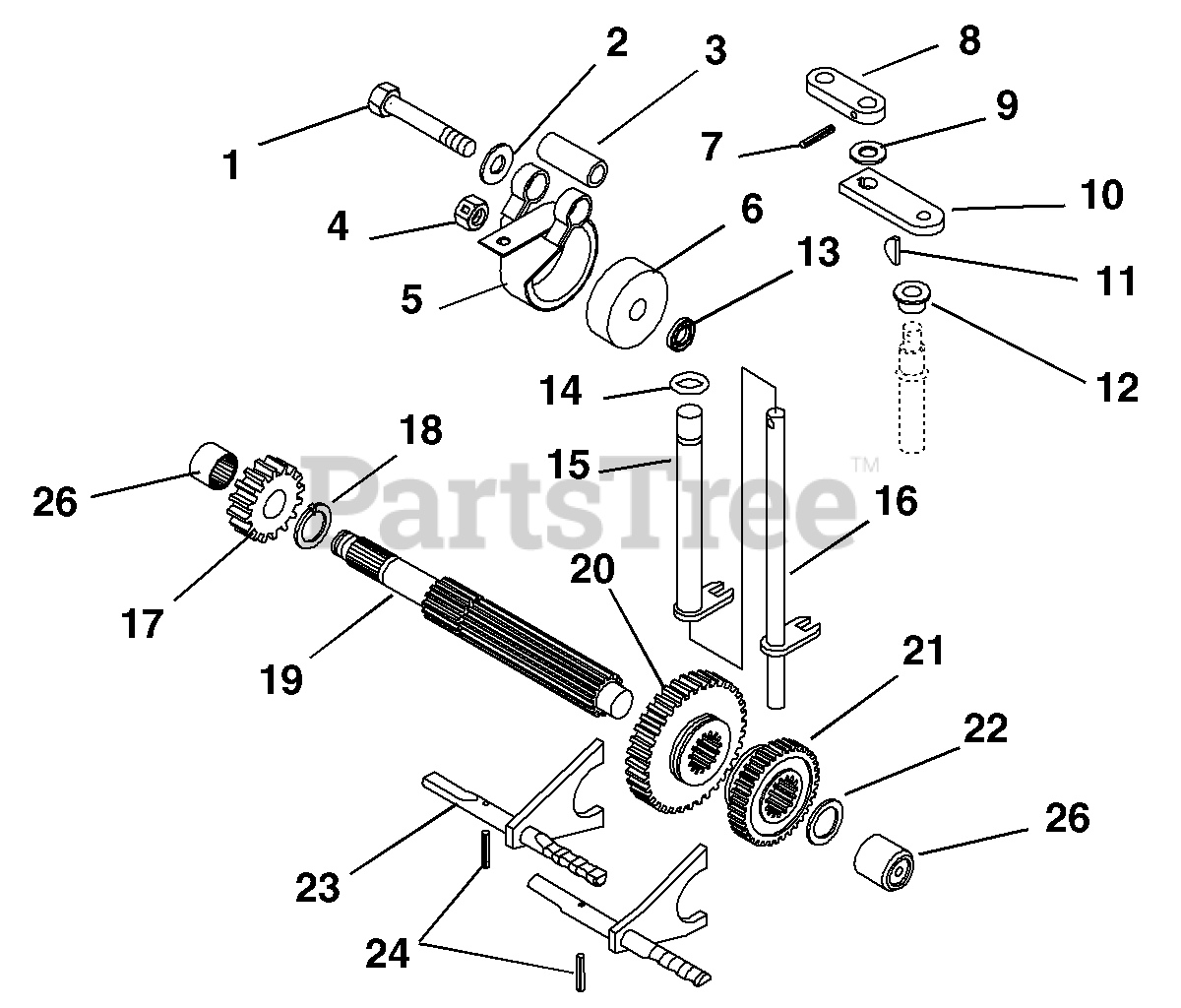

Number Six Shaft - Brake / Sliding Gear Parts Diagram

  • Title

1

Gravely 05965500

Bolt-Hex .50-13 x 2.75 Grade 5
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

2

Gravely 06441900

Washer-Flat-Steel .53 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 018165

Bushing-Sleeve Steel .55 x .75 x 2.06
(Superseded to 08713400)

$18.99

$

Usually ships in 4-12 days

0

4

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 040732

Assembly, Brake Band
(Superseded to 08751700)

$

$

Not available

6

Gravely 021371

Drum-Brake
(Superseded to 08723600)

$90.99

$

Usually ships in 4-12 days

0

7

Gravely 421202

Pin-Roll .19 x 1.00
(Superseded to 05808800)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 017945

Arm, Shifter
(Superseded to 08702900)

$25.99

$

Usually ships in 4-12 days

0

9

Gravely 021141

Washer-Felt .44 x 1.00 x .031
(Superseded to 05615600)

$3.99

$

In Stock, Qty 8

0

10

Gravely 017944

Arm, Shifter
(Superseded to 08702800)

$38.99

$

Usually ships in 4-12 days

0

11

Gravely 271089

Key-Woodruff Hard .13 x .38 Hard
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

12

Gravely 017943

Bushing-Flange Bronze .76 x 1.13 x .75
(Superseded to 05519800)

$12.99

$

Usually ships in 4-12 days

0

13

Gravely 015137

Seal .75 x 1.25 x .136
(Superseded to 05613800)

$12.99

$

In Stock, Qty 6

0

14

Gravely 018018

O-Ring .625 x .75 x .062
(Superseded to 05614200)

$3.99

$

In Stock, only 1 left!

0

15

Gravely 017940

Weldment, 1st and 3rd Shifter
(Superseded to 08702400)

$

$

Not available

16

Gravely 017937

Weldment, 2nd and 4th Shifter
(Superseded to 08702100)

$13.99

$

Usually ships in 4-12 days

0

17

Gravely 014988

Gear, 8 Diametral Pitch 16 Teeth x .85
(Superseded to 08700800)

$

$

Not available

18

Gravely 014987

Ring-Retaining External .92 x .125
(Superseded to 05711800)

$9.49

$

Usually ships in 4-12 days

0

19

Gravely 021370

Shaft, Slide Gear
(Superseded to 08723500)

$

$

Not available

20

Gravely 014989

Gear, Sliding 10 Diametral Pitch 36 Teeth x .59
(Superseded to 08700900)

$

$

Not available

21

Gravely 014995

Gear, Sliding 10 Diametral Pitch 30 Teeth x .59
(Superseded to 08701000)

$

$

Not available

22

Gravely 06413300

Washer-Hardened-Thrust .76 x 1.25 x .094

$5.99

$

In Stock, only 2 left!

0

23

Gravely 020761

Weldment, Rail Shift Fork 1 and 3
(Superseded to 08721100)

$

$

Not available

24

Gravely 456384

Pin-Roll .25 x .75
(Superseded to 05803600)

$2.99

$

In Stock, only 3 left!

0

25

Gravely 020762

Weldment, Rail Shift Fork 2 and 4
(Superseded to 08721200)

$

$

Not available

26

Gravely 017913

Bearing-Needle .75 x 1.00 x .75
(Superseded to 05420100)

$23.99

$

Usually ships in 4-12 days

0
