987067 - Gravely Lawn Tractor, 16hp Kohler, With Hydraulic Lift (SN: 000101 & Above) FRONT AND REAR WHEELS - 066, 067, 068, 069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Hydraulic Lift

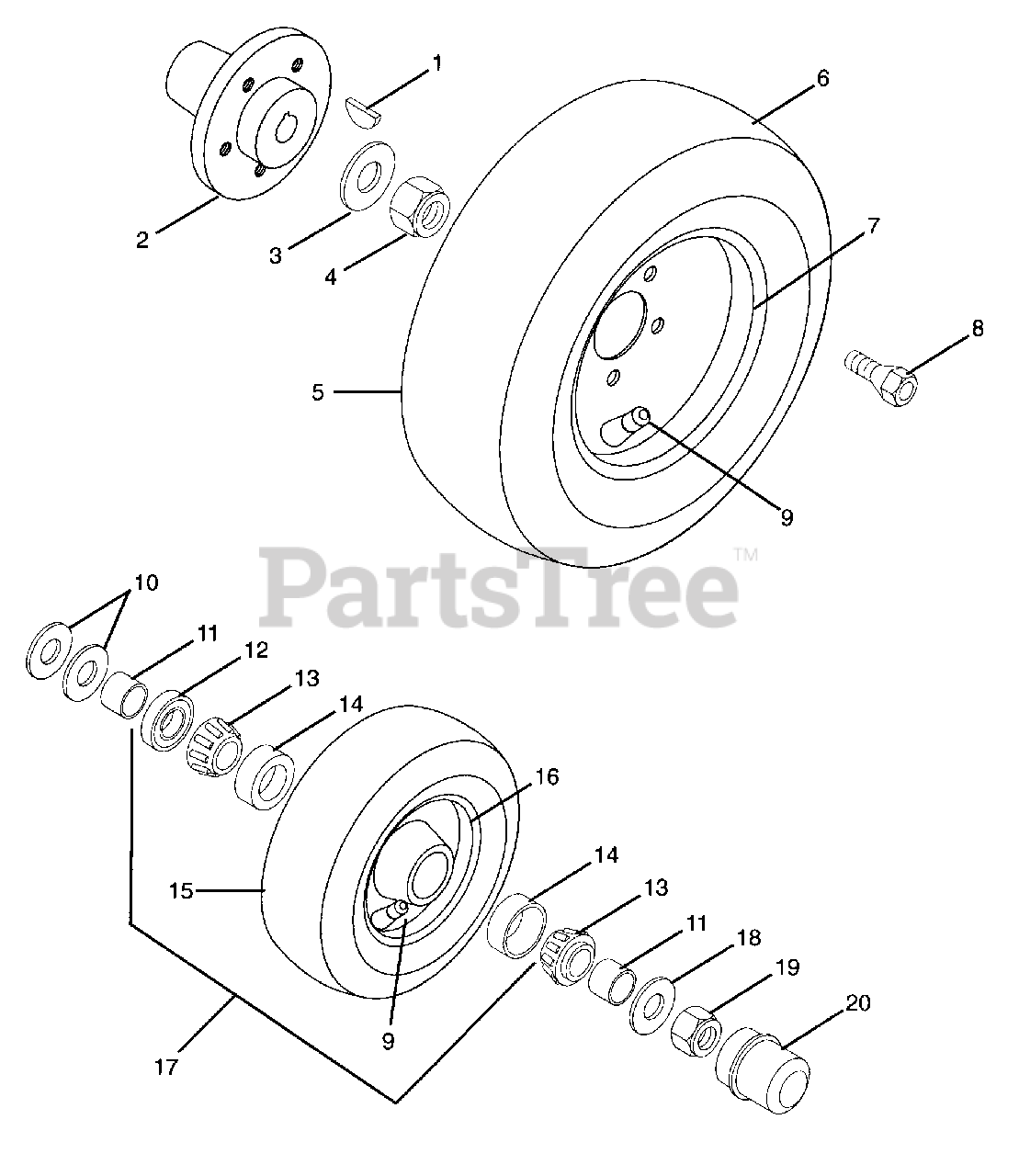

FRONT AND REAR WHEELS - 066, 067, 068, 069 - G SERIES Parts Diagram

  • Title

1

Gravely 187184

Key-Woodruff .25 x 2.13
(Superseded to 06609000)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 040304

Hub-Tapered 4-Wheel
(Superseded to 08747100)

$

$

Not available

3

Gravely 06439800

Washer-Flat-Steel .813 x 2.000 x .148
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

4

Gravely 06535400

Nut-Locking-Center .75-10 Grade 2

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 052994

Tire/Wheel Assembly 23 x 8.5-12
(Superseded to 20928200)

Note: (066,067,070)

$142.99

$

Usually ships in 4-12 days

0

5

Gravely 052995

Tire/Wheel Assembly 23 x 10.50-12
(Superseded to 07150100)

Note: (068,069)

$202.99

$

Usually ships in 4-12 days

0

6

Gravely 048920

Tire-Rear 23 x 8.50-12
(Superseded to 20928000)

Note: (066,067,070)

$

$

Not available

6

Gravely 048921

Tire-Rear 23 x 10.50-12
(Superseded to 20928100)

Note: (068,069)

$

$

Not available

7

Gravely 048922

Weldment-Rim
(Superseded to 20928200)

$142.99

$

Usually ships in 4-12 days

0

8

Gravely 07051400

Bolt-Hex .44-20 x 1.00

$10.99

$

In Stock, only 3 left!

0

9

Gravely 011191

Valve Stem Assembly
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

10

Gravely 06439000

Washer-Flat-Steel .813 x 1.50 x .139
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 018448

Spacer
(Superseded to 03495900)

$15.99

$

In Stock, only 2 left!

0

12

Gravely 018447

Seal 1.206 x 1.785 x .468
(Superseded to 05613200)

$15.99

$

In Stock, only 2 left!

0

13

Gravely 018446

Bearing/Cone .750 x .61
(Superseded to 05404500)

$23.99

$

In Stock, Qty 9

0

14

Gravely 018445

Bearing/Cup 1.781 x .475
(Superseded to 05404400)

$10.99

$

In Stock, Qty 20+

0

15

Gravely 018923

Tire-Front 16 x 6.50-8

Note: (066,067,070)

$

$

Not available

15

Gravely 031280

Tire-Front 16 x 7.50-8
(Superseded to 07119600)

Note: (068,069)

$216.99

$

Usually ships in 4-12 days

0

16

Gravely 048925

Weldment-Rim
(Superseded to 07119600)

$216.99

$

Usually ships in 4-12 days

0

17

Gravely 048542

Tire/Wheel Assembly 16 x 6.5 x 8
(Superseded to 07119600)

Note: (066,067,070)

$216.99

$

Usually ships in 4-12 days

0

17

Gravely 048538

Tire/Wheel Assembly 16 x 7.50-8
(Superseded to 07119600)

Note: (068,069)

$216.99

$

Usually ships in 4-12 days

0

18

Gravely 06442800

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 06535300

Nut-Locking-Center .625-11 Grade 2

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 018449

Dust Cap
(Superseded to 03496000)

$14.99

$

In Stock, only 3 left!

0
