987066 - Gravely Lawn Tractor, 16hp Kohler, With Manual Lift (SN: 000101 & Above) TRANSMISSION CONTROLS - 066, 067, 068, 069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Manual Lift

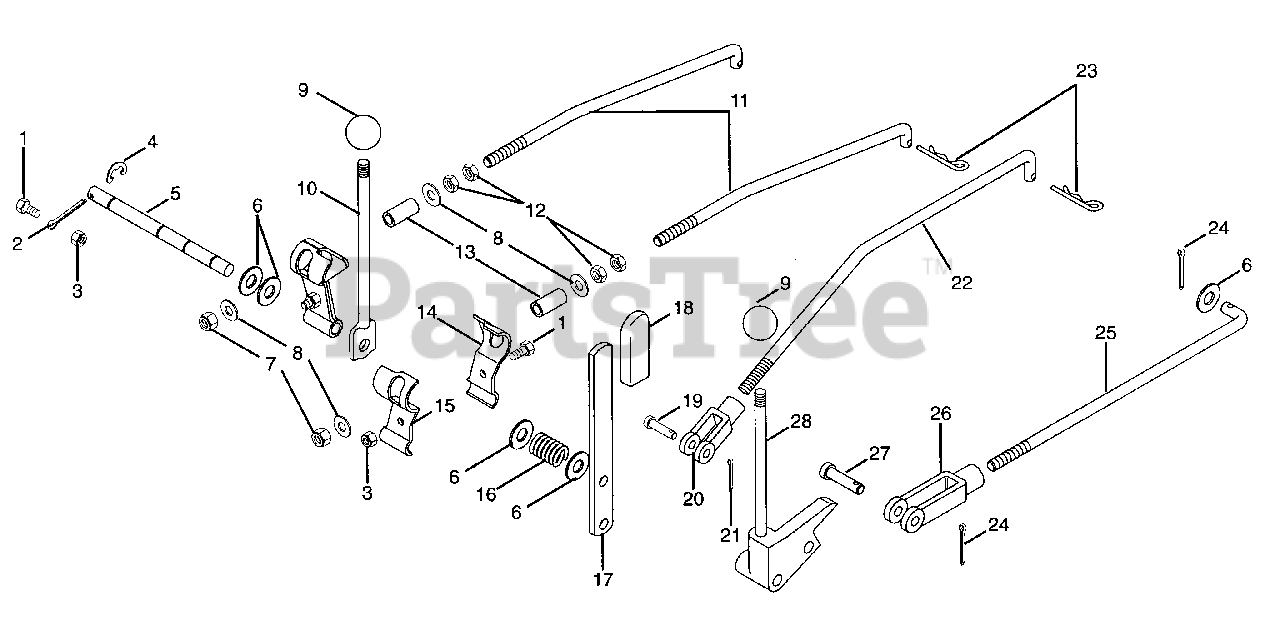

TRANSMISSION CONTROLS - 066, 067, 068, 069 - G SERIES Parts Diagram

  • Title

1

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06713100

Pin-Cotter .250 x 2.00
(Superseded to 06700213)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 06529800

Nut-Locking-Center .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 057102

Ring-Retaining-External .500 x .042
(Superseded to 05710200)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 087642

Cross Shaft
(Superseded to 08764200)

$293.99

$

Usually ships in 4-12 days

0

6

Gravely 06441900

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06535500

Nut-Locking-Center .375-16 Grade 2
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06435900

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 010670

Knob-Control .438-20 x .50
(Superseded to 07537600)

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 018371

Lever-Shift
(Superseded to 08653500)

$

$

Not available

11

Gravely 033994

Rod-Shift
(Superseded to 08654400)

$

$

Not available

12

Gravely 06535900

Nut-Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 033986

Bushing-Sleeve .396 x .490 x 1.63
(Superseded to 08710300)

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 033988

Arm-Shifter Right
(Superseded to 08735300)

$

$

Not available

15

Gravely 033989

Arm-Shifter Left
(Superseded to 08735400)

$

$

Not available

16

Gravely 018372

Spring-Compression .085 x .50 x 2.75
(Superseded to 08328000)

$

$

Not available

17

Gravely 033990

Lever-High-Low Shift
(Superseded to 08735500)

$

$

Not available

18

Gravely 034067

Grip-Handle
(Superseded to 07523000)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 068119

Pin-Clevis .375 x .948
(Superseded to 06811900)

$4.99

$

In Stock, Qty 5

0

20

Gravely 018380

Clevis .38-24 Adjustable
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

21

067073

Pin-Cotter .09 x .75

$

$

Not available

22

Gravely 040143

Rod 2-Speed
(Superseded to 08657700)

$

$

Not available

23

Gravely 06713500

Pin-Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06707100

Pin-Cotter .12 x 1.0

$0.99

$

In Stock, Qty 10

0

25

Gravely 018386

Rod-PTO
(Superseded to 08657300)

$34.99

$

In Stock, only 1 left!

0

26

Gravely 018387

Yoke .50-20, Adjustable
(Superseded to 08797200)

$

$

Not available

27

Gravely 138086

Pin-Clevis .500 x 1.213
(Superseded to 06812100)

$13.99

$

In Stock, only 1 left!

0

28

Gravely 034065

Assembly-PTO Control
(Superseded to 08735800)

$113.99

$

Usually ships in 4-12 days

0
