987066 - Gravely Lawn Tractor, 16hp Kohler, With Manual Lift (SN: 000101 & Above) REAR DECK AND SEAT - 066, 067, 068, 069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Manual Lift

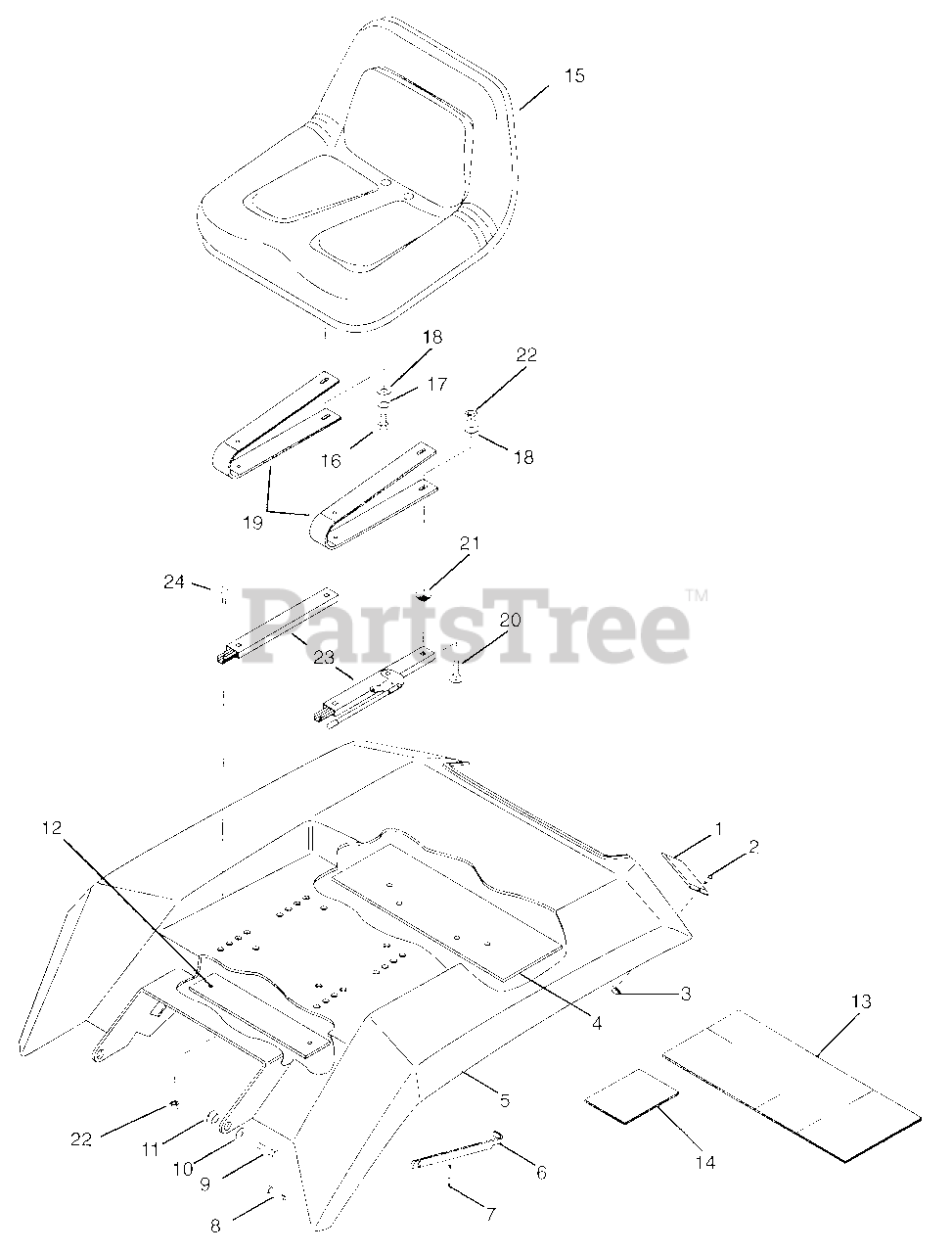

REAR DECK AND SEAT - 066, 067, 068, 069 - G SERIES Parts Diagram

  • Title

1

Gravely 051329

Reflector-Rectangular Reflex
(Superseded to 07536500)

$22.99

$

Usually ships in 4-12 days

0

2

Gravely 06116700

Screw-Machine 10-32 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06539200

Nut-Locking 10-32

$1.99

$

Usually ships in 4-12 days

0

4

Gravely 051601

Bracket-Seat Support
(Superseded to 08790900)

$33.99

$

Usually ships in 4-12 days

0

5

Gravely 040453

Weldment-Seat Pan Head Notched
(Superseded to 08748500)

$

$

Not available

6

Gravely 024996

Strap-Fender Hold Up
(Superseded to 08727200)

$25.99

$

Usually ships in 4-12 days

0

7

Gravely 06707500

Pin-Cotter .062 x .75

$0.99

$

In Stock, only 3 left!

0

8

Gravely 018420

Pin-Clevis .250 x .406
(Superseded to 06809700)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 024815

Bushing-Flange .406 x .88 x .270 x .140
(Superseded to 05515800)

$9.49

$

In Stock, only 4 left!

0

12

Gravely 051278

Plate-Control Shaft
(Superseded to 09004051)

$

$

Not available

13

Gravely 08798800

Heat Shield

$

$

Not available

14

Gravely 08798900

Heat Shield

$

$

Not available

15

Gravely 09112400

Seat V-560

$

$

Not available

16

Gravely 05947000

Bolt-Hex .31-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06308600

Washer-Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 047528

Seat Spring
(Superseded to 03486851)

$

$

Not available

20

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 035670

Seat Slide Spacer
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

22

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 03600800

Seat Slides

$104.99

$

Usually ships in 4-12 days

0

24

Gravely 039059

Screw-Cap Button Head .31-18 x .75 Grade 5
(Superseded to 07008600)

$

$

Not available

25

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0
