987066 - Gravely Lawn Tractor, 16hp Kohler, With Manual Lift (SN: 000101 & Above) NUMBER ELEVEN - FWD-REV CLUTCH ASSY - 066, 067, 068, 069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Manual Lift

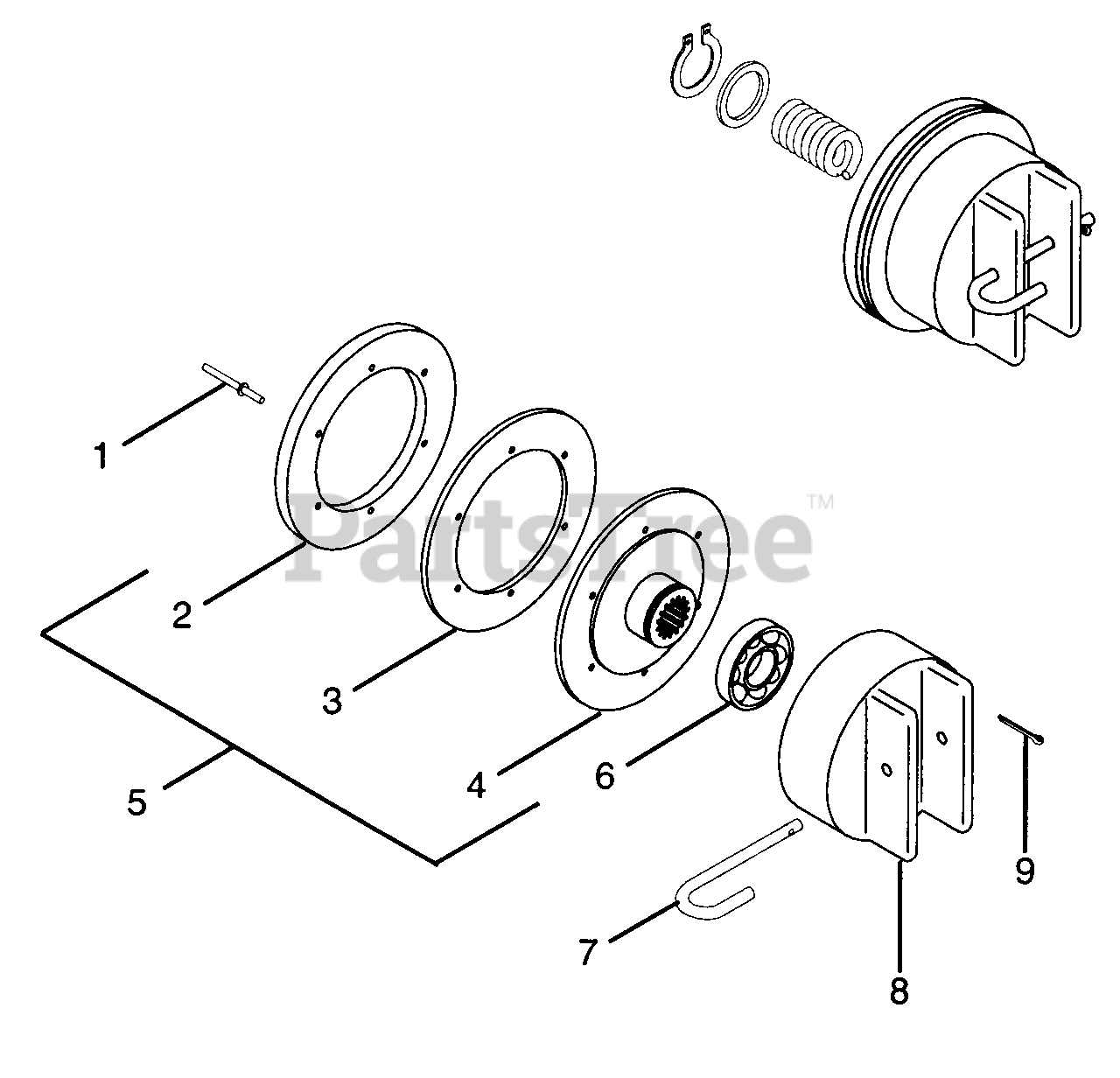

NUMBER ELEVEN - FWD-REV CLUTCH ASSY - 066, 067, 068, 069 - G SERIES Parts Diagram

  • Title

1

Gravely 044141

Rivet
(Superseded to 21267400)

$48.99

$

In Stock, only 1 left!

0

2

Gravely 040692

Lining-Clutch
(Superseded to 08751000)

$60.99

$

In Stock, Qty 10

0

3

Gravely 042481

Ring-Clutch
(Superseded to 08759500)

$25.99

$

In Stock, only 1 left!

0

4

Gravely 042484

Disc-Clutch
(Superseded to 08759600)

$

$

Not available

5

Gravely 042482

Assembly-Clutch & Ring
(Superseded to 08759600)

$

$

Not available

6

Gravely 035330

Bearing-Ball 1.57 x 3.15 x .71
(Superseded to 05420900)

$193.99

$

In Stock, only 3 left!

0

7

Gravely 035681

Pin-Clutch Spring
(Superseded to 08654800)

$45.99

$

In Stock, only 1 left!

0

8

Gravely 034734

Trunion-Fwd-Rev Clutch
(Superseded to 08911000)

$95.99

$

In Stock, only 4 left!

0

9

Gravely 06707500

Pin-Cotter .062 x .75

$0.99

$

In Stock, only 3 left!

0
