987066 - Gravely Lawn Tractor, 16hp Kohler, With Manual Lift (SN: 000101 & Above) HYDRAULIC SYSTEM - 066, 067, 068, 069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Manual Lift

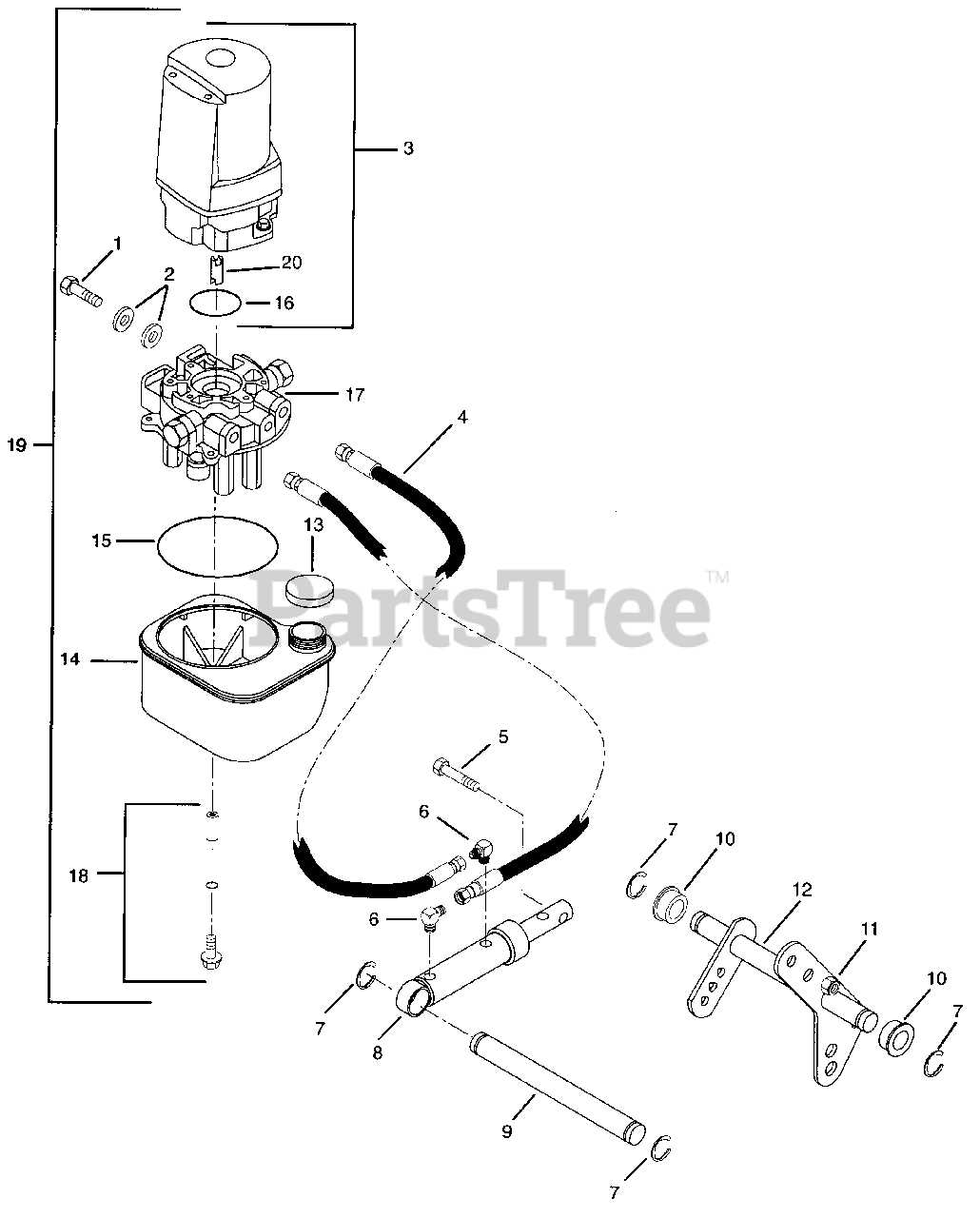

HYDRAULIC SYSTEM - 066, 067, 068, 069 - G SERIES Parts Diagram

  • Title
1

Gravely 05948700

Bolt-Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 038842

Washer-Flat-Steel .390 x .875 x .18
(Superseded to 06436800)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 215098

Motor Assembly

$

$

Not available

4

Gravely 092214

Assembly-Hose Pump to Cylinder
(Superseded to 09221400)

$40.99

$

Usually ships in 4-12 days

0

5

Gravely 05959700

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$

$

Not available

6

Gravely 018826

Adapter 2503-4-4
(Superseded to 08800700)

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 011112

Ring-Retaining-External .835 x .056
(Superseded to 05716000)

$3.99

$

In Stock, only 3 left!

0

8

Gravely 031284

Cylinder-Hydraulic
(Superseded to 08727500)

$

$

Not available

9

Gravely 018830

Shaft-Hydraulic Cylinder
(Superseded to 08708900)

$

$

Not available

10

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

11

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

12

Gravely 087576

Mower Lift Weldment
(Superseded to 08757600)

$

$

Not available

13

Gravely 200018

Reservoir Cap-Electric Hydraulic Pump
(Superseded to 20001800)

$21.99

$

Usually ships in 4-12 days

0

14

Gravely 214191

Reservoir Tank
(Superseded to 21419100)

$

$

Not available

15

Gravely 200014

Reservoir Seal O-Ring
(Superseded to 20001400)

$15.99

$

Usually ships in 4-12 days

0

16

$

$

Not available

17

Gravely 215099

Adapter Assembly

$

$

Not available

18

Gravely 215101

Screw O-Ring and Spacer Assembly

$

$

Not available

19

Gravely 08725000

Pump-Electric Hydraulic

$

$

Not available

20

$

$

Not available

Gravely 215102

Seal/O-Ring Kit

Note: NS

$

$

Not available
