987066 - Gravely Lawn Tractor, 16hp Kohler, With Manual Lift (SN: 000101 & Above) HOOD GRILLE - 066, 067, 068, 069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Manual Lift

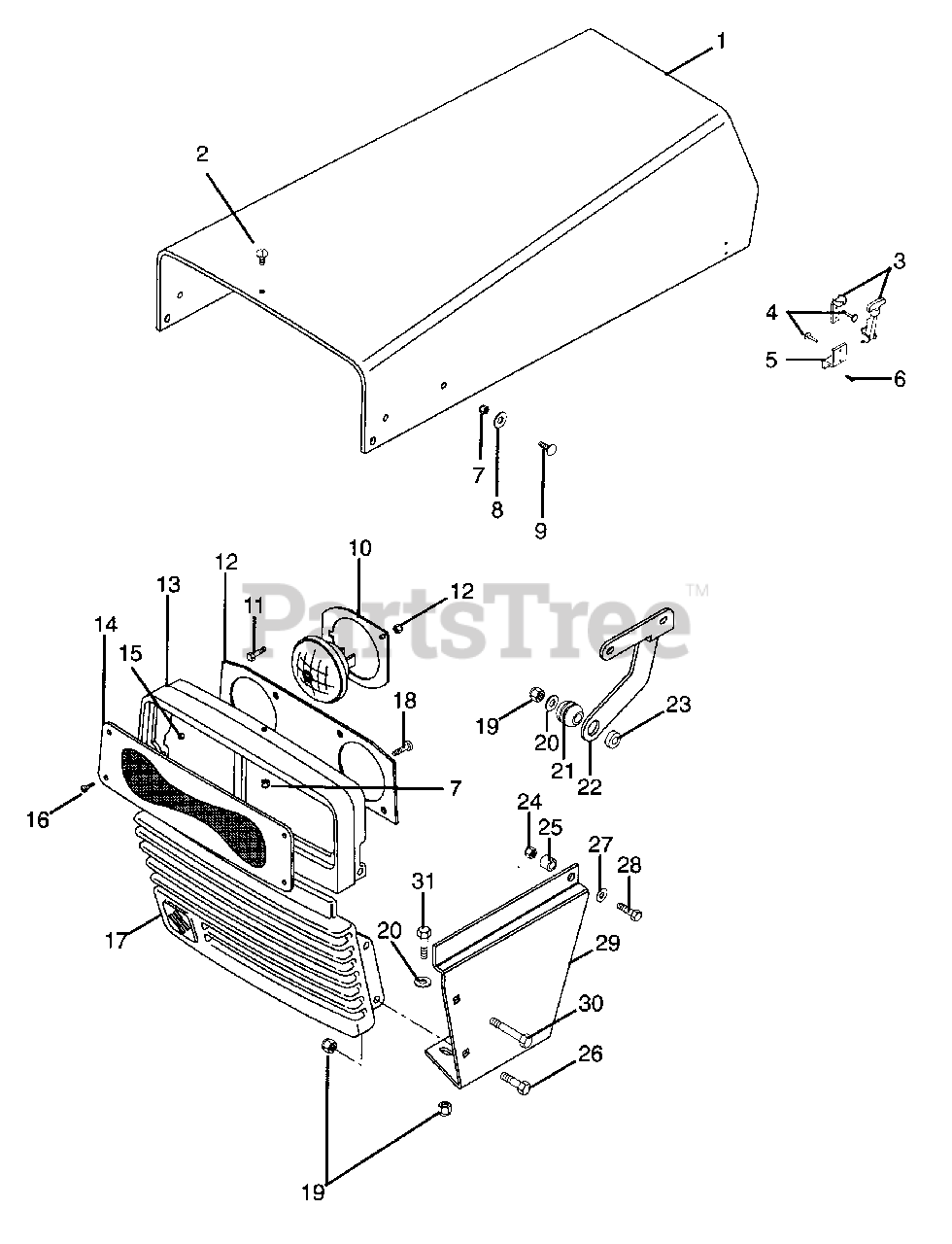

HOOD GRILLE - 066, 067, 068, 069 - G SERIES Parts Diagram

  • Title

1

Gravely 038674

Hood-Tractor
(Superseded to 08658600)

$

$

Not available

2

Gravely 06114400

Screw-Machine .25-20 x .75

$0.99

$

In Stock, Qty 10

0

3

Gravely 035294

Latch-Flexible
(Superseded to 08704700)

$25.99

$

Usually ships in 4-12 days

0

4

Gravely 032661

Rivet .125 x .245
(Superseded to 06807500)

$

$

Not available

5

Gravely 039828

Bracket-Hood Latch Mounting
(Superseded to 08744700)

$45.99

$

Usually ships in 4-12 days

0

6

Gravely 07415600

Screw-Tapping 8-32 x .50

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 06529700

Nut-Locking-Center .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06437300

Washer-Flat .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 039070

Head Light Retainer Ring
(Superseded to 03115900)

$

$

Not available

11

Gravely 05947700

Bolt-Hex .25-20 x 1.000 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

12

Gravely 038672

Panel-Headlight Reflector
(Superseded to 03067000)

$28.99

$

Usually ships in 4-12 days

0

13

Gravely 038673

Bezel-Headlight
(Superseded to 03066800)

$

$

Not available

14

Gravely 038671

Panel-Headlight Lens
(Superseded to 03066900)

$78.99

$

Usually ships in 4-12 days

0

15

Gravely 06536000

Nut-Locking-Nylon 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06116900

Screw-Machine 10-24 x .750
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

17

Gravely 039831

Grill
(Superseded to 03493700)

$

$

Not available

18

Gravely 07412000

Screw-Tapping .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06535500

Nut-Locking-Center .375-16 Grade 2
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06435900

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 035518

Grommet
(Superseded to 07504200)

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 039047

Left Hand Hood Hinge
(Superseded to 03118600)

$

$

Not available

22

Gravely 039049

Right Hand Hood Hinge
(Superseded to 03118500)

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 036849

Spacer
(Superseded to 03114500)

$9.99

$

In Stock, only 1 left!

0

24

Gravely 06529800

Nut-Locking-Center .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 010908

Bushing-Sleeve .406 x 1.00 x 1.00
(Superseded to 08707800)

$87.99

$

Usually ships in 4-12 days

0

26

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

29

Gravely 039836

Panel-Side Left Hand
(Superseded to 08745000)

$13.99

$

Usually ships in 4-12 days

0

29

Gravely 039835

Panel-Side Right Hand
(Superseded to 08744900)

$13.99

$

Usually ships in 4-12 days

0

30

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

31

UNKNOWN

UNKNOWN

$

$

Not available
