987066 - Gravely Lawn Tractor, 16hp Kohler, With Manual Lift (SN: 000101 & Above) FUEL & EXHAUST SYSTEM - 066, 067, 068, 069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Manual Lift

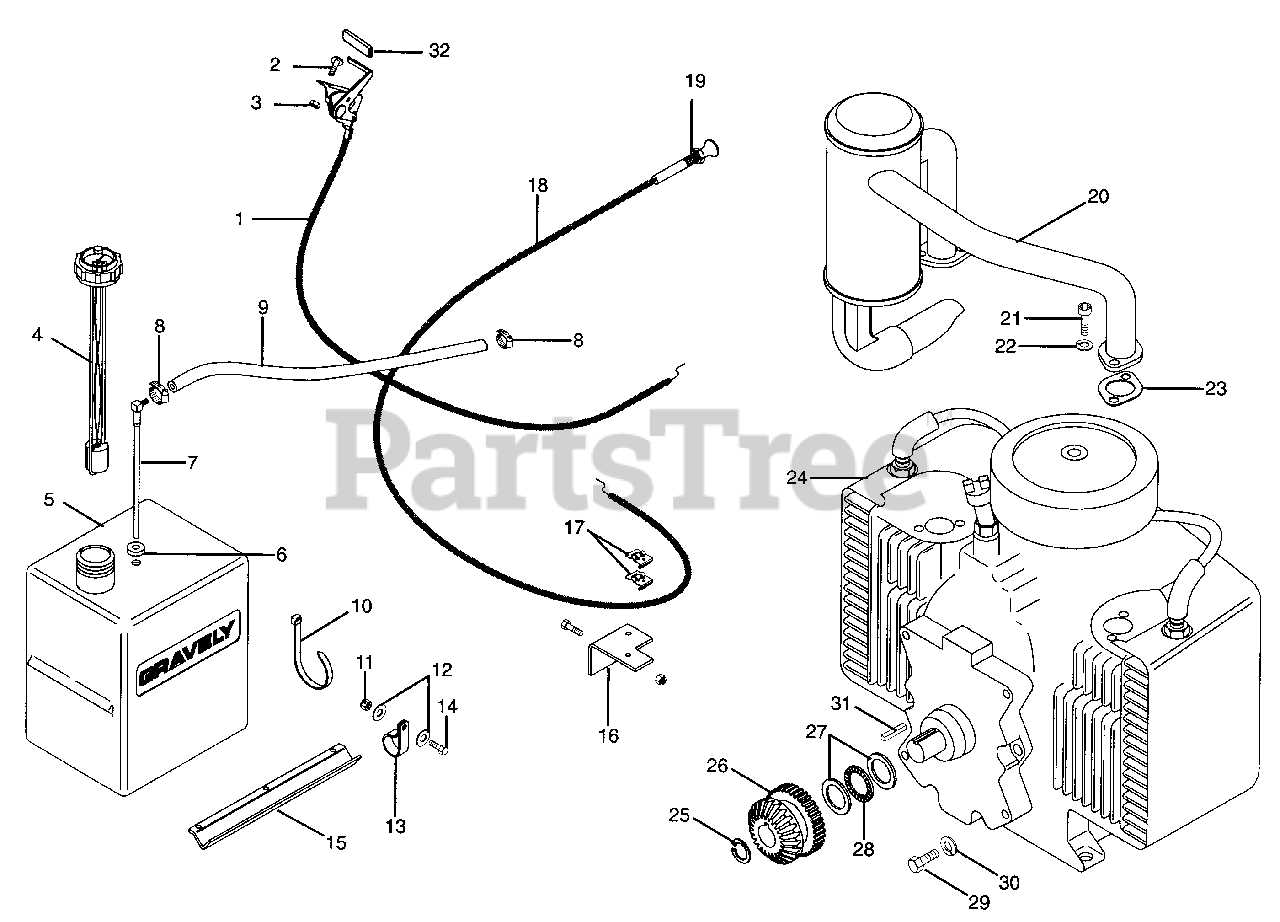

FUEL & EXHAUST SYSTEM - 066, 067, 068, 069 - G SERIES Parts Diagram

  • Title

1

Gravely 06939200

Throttle Cable
(Superseded to 06941300)

$52.99

$

In Stock, only 1 left!

0

2

Gravely 06116700

Screw-Machine 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06536000

Nut-Locking- Nylon -10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 047615

Gauge-Fuel
(Superseded to 08983200)

$47.99

$

Usually ships in 4-12 days

0

5

Gravely 047612

Tank-Fuel
(Superseded to 08983000)

$

$

Not available

6

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

7

Gravely 047614

Fitting-Tank
(Superseded to 08983100)

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

9

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 010629

Tie-Cable
(Superseded to 07517300)

$

$

Not available

11

Gravely 06529800

Nut-Locking-Center .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 035313

Cable Clamp
(Superseded to 03334000)

$

$

Not available

14

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 032030

Shield-Heat
(Superseded to 08734400)

$

$

Not available

16

Gravely 040448

Bracket-Throttle & Choke
(Superseded to 08748100)

$

$

Not available

17

Gravely 007331

Clip-Speed
(Superseded to 06931500)

$

$

Not available

18

Gravely 039859

Control-Choke
(Superseded to 06926100)

$59.99

$

In Stock, only 2 left!

0

19

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

20

Gravely 051902

Muffler-Exhaust
(Superseded to 08792500)

$

$

Not available

21

Gravely 05947000

Screw-Cap .31-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06308600

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 044390

Gasket-Exhaust
(Superseded to 08824700)

$10.99

$

In Stock, only 2 left!

0

24

Gravely 047480

Engine 16 HP Magnum PS-24633 (066,067)

Note: (066,067)

$

$

Not available

24

Gravely 045527

Engine 18 HP Magnum PS-24590 (068)

Note: (068)

$

$

Not available

24

Gravely 045529

Engine 20 Hp S.B. Kohler PS-49562 (069)

Note: (069)

$

$

Not available

25

Gravely 018344

Ring-Retaining 1.249 x .050
(Superseded to 05712600)

$1.99

$

Usually ships in 4-12 days

0

26

Gravely 051321

Gear-Spur & Bevel
(Superseded to 08790200)

$323.99

$

Usually ships in 4-12 days

0

27

Gravely 040758

Washer-Thrust 1.125 x 1.750 x .123
(Superseded to 06434200)

$20.99

$

Usually ships in 4-12 days

0

28

Gravely 018341

Bearing-N-Thrust 1.84 x 1.127 x .078
(Superseded to 05421000)

$10.99

$

In Stock, only 4 left!

0

29

Gravely 05946000

Bolt-Hex .50-13 x 1.75

$

$

Not available

30

Gravely 06307300

Washer-Lock .50 x .125 Reg
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

31

Gravely 018345

Key-Square .248 x 1.25 x .248
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

32

Gravely 075215

Grip
(Superseded to 07521500)

$

$

Not available
