987066 - Gravely Lawn Tractor, 16hp Kohler, With Manual Lift (SN: 000101 & Above) FRAME - 066, 067, 068, 069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Manual Lift

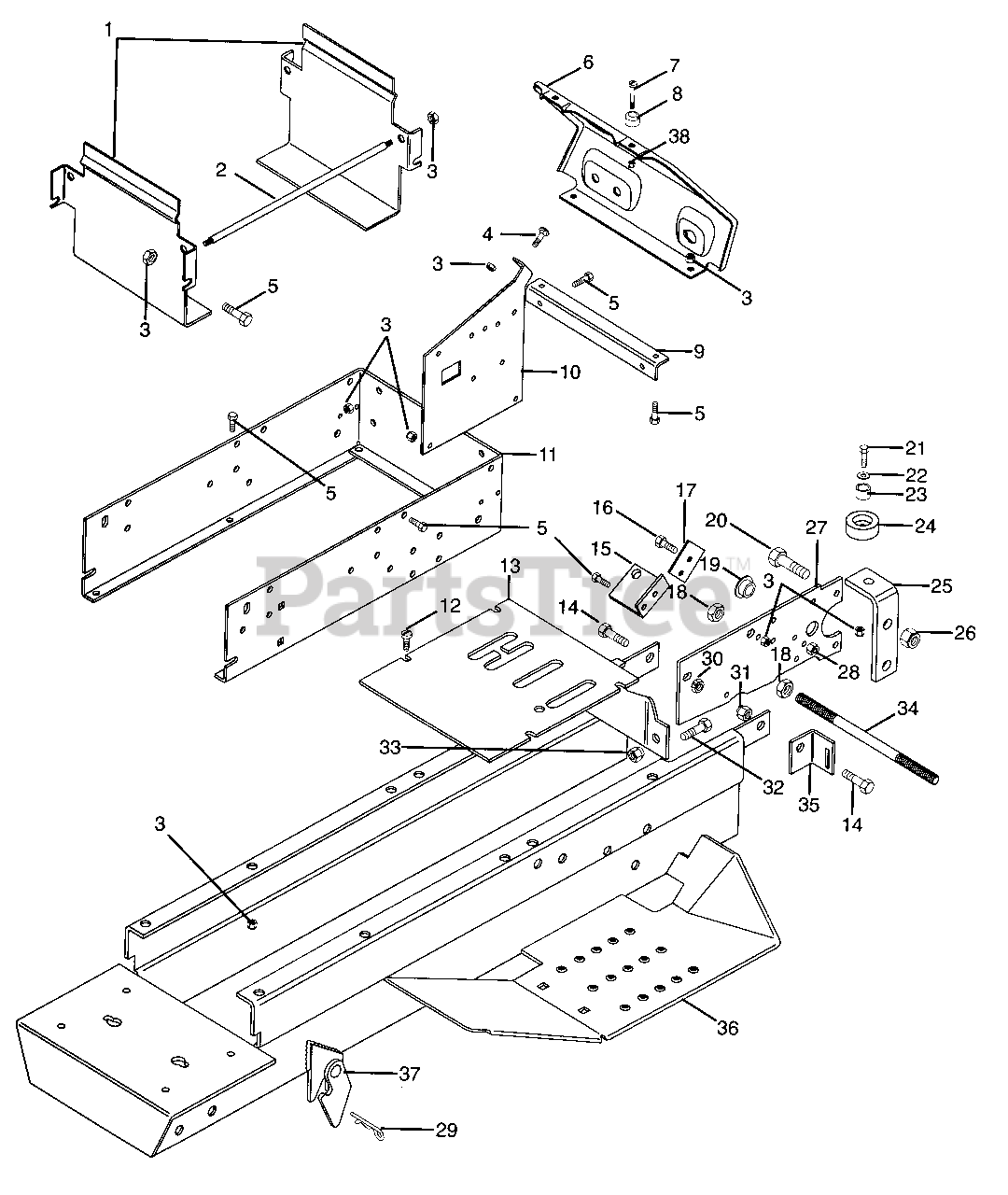

FRAME - 066, 067, 068, 069 - G SERIES Parts Diagram

  • Title

1

Gravely 087815

Tank Support
(Superseded to 08781500)

$50.99

$

Usually ships in 4-12 days

0

2

Gravely 090378

Rod-Tank
(Superseded to 09037800)

$29.99

$

Usually ships in 4-12 days

0

3

Gravely 06529700

Nut-Locking-Center .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06114400

Screw-Machine .25-20 x .75

$0.99

$

In Stock, Qty 10

0

5

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 08759401

Instrument Panel

$

$

Not available

6

Gravely 077255

Decal, G Series Instrument Panel
(Superseded to 07725500)

$

$

Not available

7

Gravely 06117900

Screw-Machine 6-32 x .75

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 018183

Bumper
(Superseded to 07017400)

$

$

Not available

9

Gravely 040548

Bracket-Instrument Panel
(Superseded to 08749300)

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 040449

Bracket-Instrument Panel Left Hand
(Superseded to 08748200)

$

$

Not available

10

Gravely 040450

Bracket-Instrument Panel Right Hand
(Superseded to 08748300)

$

$

Not available

11

Gravely 041240

Support-Instrument
(Superseded to 08754000)

$

$

Not available

12

Gravely 07414200

Screw-Tapping .250-20 x .75
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

13

Gravely 039875

Plate-Control Cover
(Superseded to 08746000)

$

$

Not available

13

Gravely 077254

Decal, G Series Cover Plate (987067-070)
(Superseded to 07725400)

Note: (987067-070)

$

$

Not available

13

Gravely 077253

Decal, G Series Cover Plate (987066)
(Superseded to 07725300)

Note: (987066)

$

$

Not available

14

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 046305

Bracket-Interlock Switch
(Superseded to 08778400)

$

$

Not available

16

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 040822

Bracket-Bushing Lock
(Superseded to 08752000)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 06537300

Nut-Hex .50-13
(Superseded to 06500814)

$3.99

$

In Stock, only 1 left!

0

19

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 05947400

Bolt-Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

22

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 034723

Bushing-Sleeve .265 x .375 x .250
(Superseded to 08708300)

$12.99

$

Usually ships in 4-12 days

0

24

Gravely 024357

Bumper-Seat
(Superseded to 07521800)

$14.99

$

Usually ships in 4-12 days

0

25

Gravely 045594

Bracket-Rear Hitch
(Superseded to 08768900)

$

$

Not available

26

Gravely 06536300

Nut-Locking-Center .50-13 Grade 5
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

27

Gravely 052662

Plate-Forward-Reverse Mounting
(Superseded to 08793253)

$9.49

$

Usually ships in 4-12 days

0

28

Gravely 06529800

Nut-Locking-Center .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06714000

Pin-Hair-Internal .15 x 2.937

$2.99

$

In Stock, Qty 6

0

30

Gravely 06529600

Nut-Locking-Center .375-16 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06529600

Nut-Locking-Center .375-16 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 05968600

Bolt-Hex .50-20 x 1.50

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 06535000

Nut-Hex .50-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 040207

Rod-Frame External Brace
(Superseded to 08655000)

$

$

Not available

35

Gravely 018362

Bracket-Fender Hold-Up
(Superseded to 08778500)

$11.99

$

Usually ships in 4-12 days

0

36

Gravely 045235

Weldment-Frame
(Superseded to 08766000)

$

$

Not available

37

Gravely 021087

Weldment-Mower Bracket Right Hand
(Superseded to 08722200)

$

$

Not available

37

Gravely 021088

Weldment-Mower Bracket Left Hand
(Superseded to 08722300)

$

$

Not available

38

UNKNOWN

UNKNOWN

$

$

Not available
