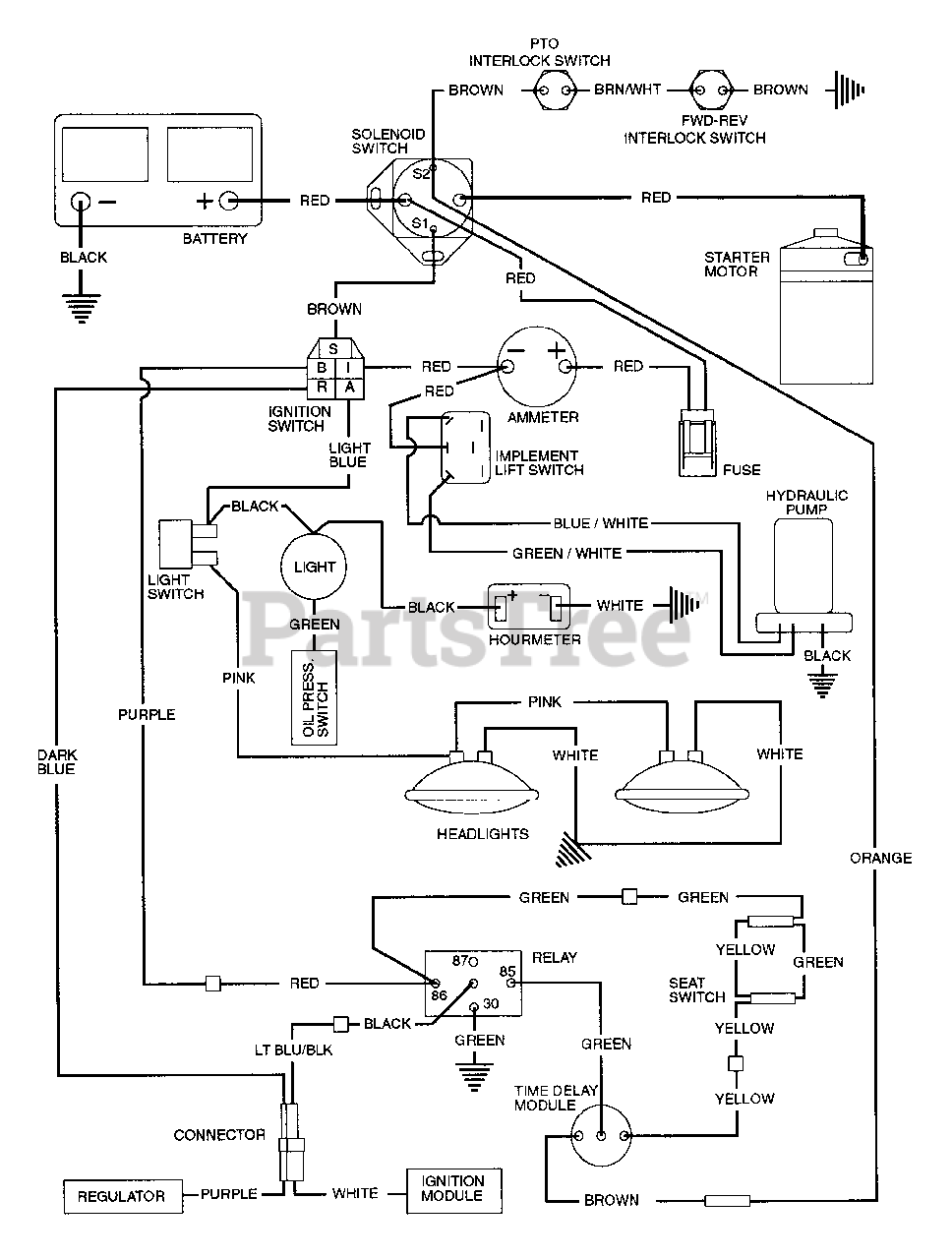

987065 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) WIRING DIAGRAM - KOHLER ENGINES Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

WIRING DIAGRAM - KOHLER ENGINES Parts Diagram
