987065 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) STEERING - 14 H.P. AND 16 H.P. UNITS Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

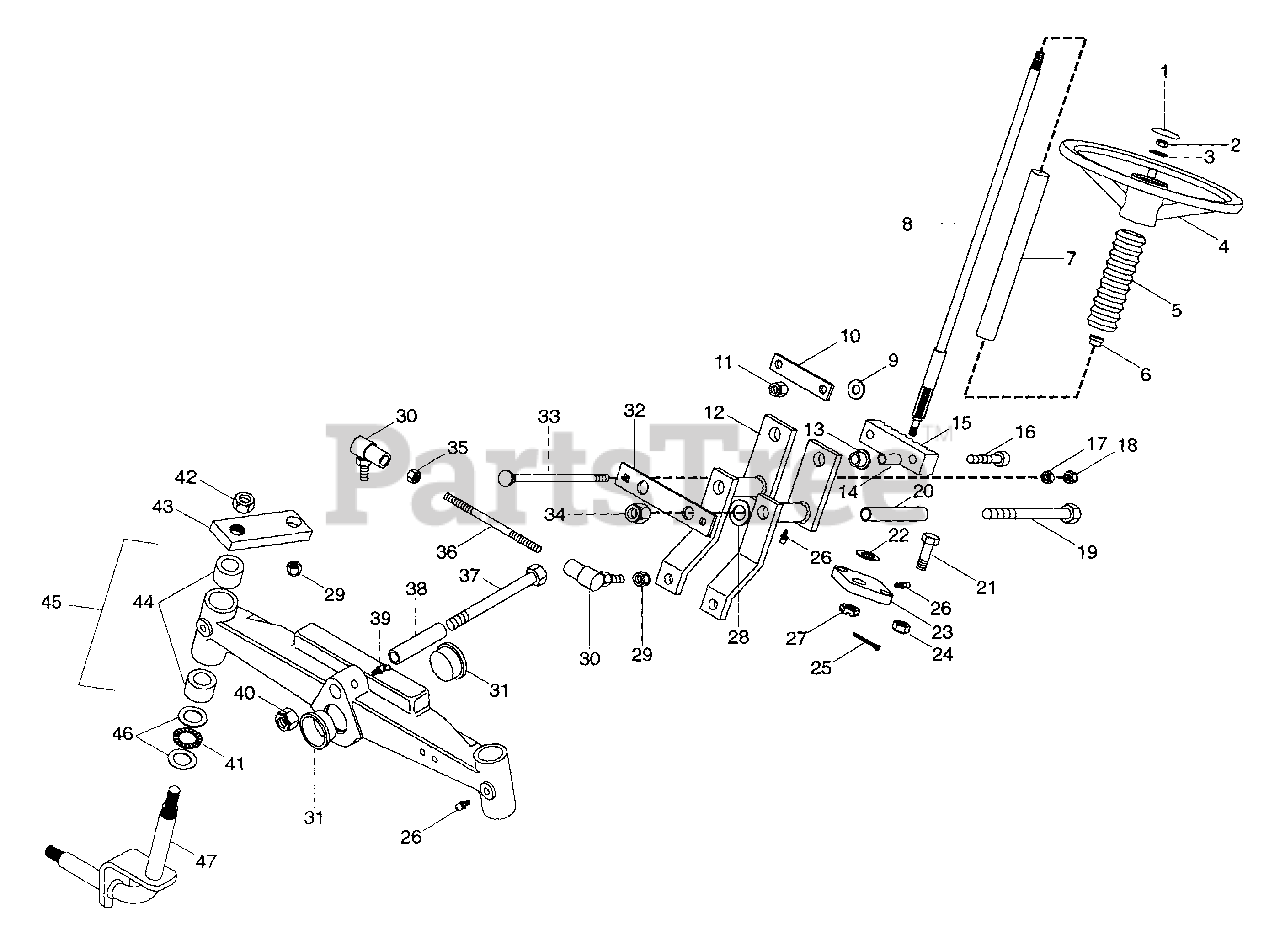

STEERING - 14 H.P. AND 16 H.P. UNITS Parts Diagram

  • Title

1

Gravely 031426

Steering Wheel Cap
(Superseded to 03489800)

$

$

Not available

2

Gravely 124847

Nut-Jam .625-11
(Superseded to 06539300)

$

$

Not available

3

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 031281

Steering Wheel
(Superseded to 03066600)

$

$

Not available

5

Gravely 047311

Steering Column Boot
(Superseded to 08739200)

$

$

Not available

6

Gravely 010174

Bushing-Flange .762 x 1.0 x 580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 040984

Tube, Plastic 1.0 I.D.
(Superseded to 07525500)

$

$

Not available

8

Gravely 047530

Weldment, Steering Shaft
(Superseded to 08780900)

$

$

Not available

9

Gravely 446470

Washer-Flat-Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

10

Gravely 021246

Strap, Rack and Pinion
(Superseded to 08723000)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 040130

Weldment, Steering
(Superseded to 08746200)

$290.99

$

Usually ships in 4-12 days

0

13

Gravely 021077

Bushing-Flange .627 x .879 x .469 x 1.120
(Superseded to 05519100)

$7.49

$

Usually ships in 4-12 days

0

14

Gravely 021076

Bushing, Steel .391 x .621 x .676
(Superseded to 08902300)

$27.99

$

In Stock, only 2 left!

0

15

Gravely 051851

Grade, Rack
(Superseded to 08791700)

$

$

Not available

16

Gravely 454473

Screw-Cap .38-16 x 2
(Superseded to 05933400)

$3.49

$

In Stock, only 2 left!

0

17

Gravely 120376

Nut-Hex .312-18 Grade 2
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

18

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 443734

Bolt-Hex .50-13 x 6.00
(Superseded to 05961800)

$

$

Not available

20

Gravely 021078

Sleeve, Pivot
(Superseded to 08721900)

$

$

Not available

21

Gravely 180149

Bolt-Hex .44-14 x 1.50
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

22

Gravely 035344

Washer-Thrust .507 x .917 x .031
(Superseded to 06426300)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 035064

Support, Steering Shaft
(Superseded to 08737200)

$

$

Not available

24

Gravely 039413

Nut-Locking-Hex .44-14
(Superseded to 06527500)

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 121224

Pin-Cotter .09 x 1.0

$0.99

$

Usually ships in 4-12 days

0

26

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

27

Gravely 121592

Nut-Hex-Slotted .500-13
(Superseded to 06539100)

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 014998

Bearing-N-Thrust .752 x 1.24 x .093
(Superseded to 06413300)

$5.99

$

In Stock, only 2 left!

0

29

Gravely 192481

Nut-Locking-Nylon .375-24 Grade 2
(Superseded to 06538800)

$1.99

$

In Stock, only 4 left!

0

30

Gravely 021084

Joint, Steering Ball
(Superseded to 02917100)

$23.99

$

In Stock, Qty 6

0

31

Gravely 018785

Cap, Front Axle
(Superseded to 07520300)

$3.49

$

In Stock, only 1 left!

0

32

Gravely 021079

Plate, Adjustment
(Superseded to 08722000)

$22.99

$

Usually ships in 4-12 days

0

33

Gravely 034074

Bolt-Round Head Square Neck .31-18 x 5.50 Grade 2
(Superseded to 06222800)

$

$

Not available

34

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

35

Gravely 120369

Nut-Hex .375-24 Grade 2
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

36

Gravely 040630

Rod, Steering
(Superseded to 08655200)

$54.99

$

Usually ships in 4-12 days

0

37

Gravely 271781

Bolt-Hex .75-10 x 4.50
(Superseded to 05968800)

$9.49

$

In Stock, only 1 left!

0

38

Gravely 023237

Tube, Axle Pivot
(Superseded to 08725200)

$68.99

$

In Stock, Qty 7

0

39

Gravely 411031

Fitting, Lube 45 Deg
(Superseded to 07012700)

$3.99

$

Usually ships in 4-12 days

0

40

Gravely 456007

Nut-Locking-Nylon .75-10 Grade 2
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

41

Gravely 021543

Bearing-Thrust .875 x 1.427 x .078
(Superseded to 05422000)

$11.99

$

In Stock, only 3 left!

0

42

Gravely 124589

Nut-Hex .625-11 Grade 2
(Superseded to 06535600)

$2.99

$

In Stock, only 3 left!

0

43

Gravely 040126

Arm, Tie Rod Axle
(Superseded to 08746100)

$

$

Not available

44

Gravely 043359

Bushing-Sleeve .866 x 1.004 x 1.000
(Superseded to 05516600)

$21.99

$

Usually ships in 4-12 days

0

45

Gravely 045400

Axle, Steering
(Superseded to 08766900)

$

$

Not available

46

Gravely 021541

Washer-Thrust .877 x 1.427 x .032
(Superseded to 06426100)

$11.99

$

In Stock, only 3 left!

0

47

Gravely 018463

Weldment, King Pin
(Superseded to 08707700)

$255.99

$

Usually ships in 4-12 days

0
