987065 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) NUMBER NINE SHAFT - PTO CLUTCH Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

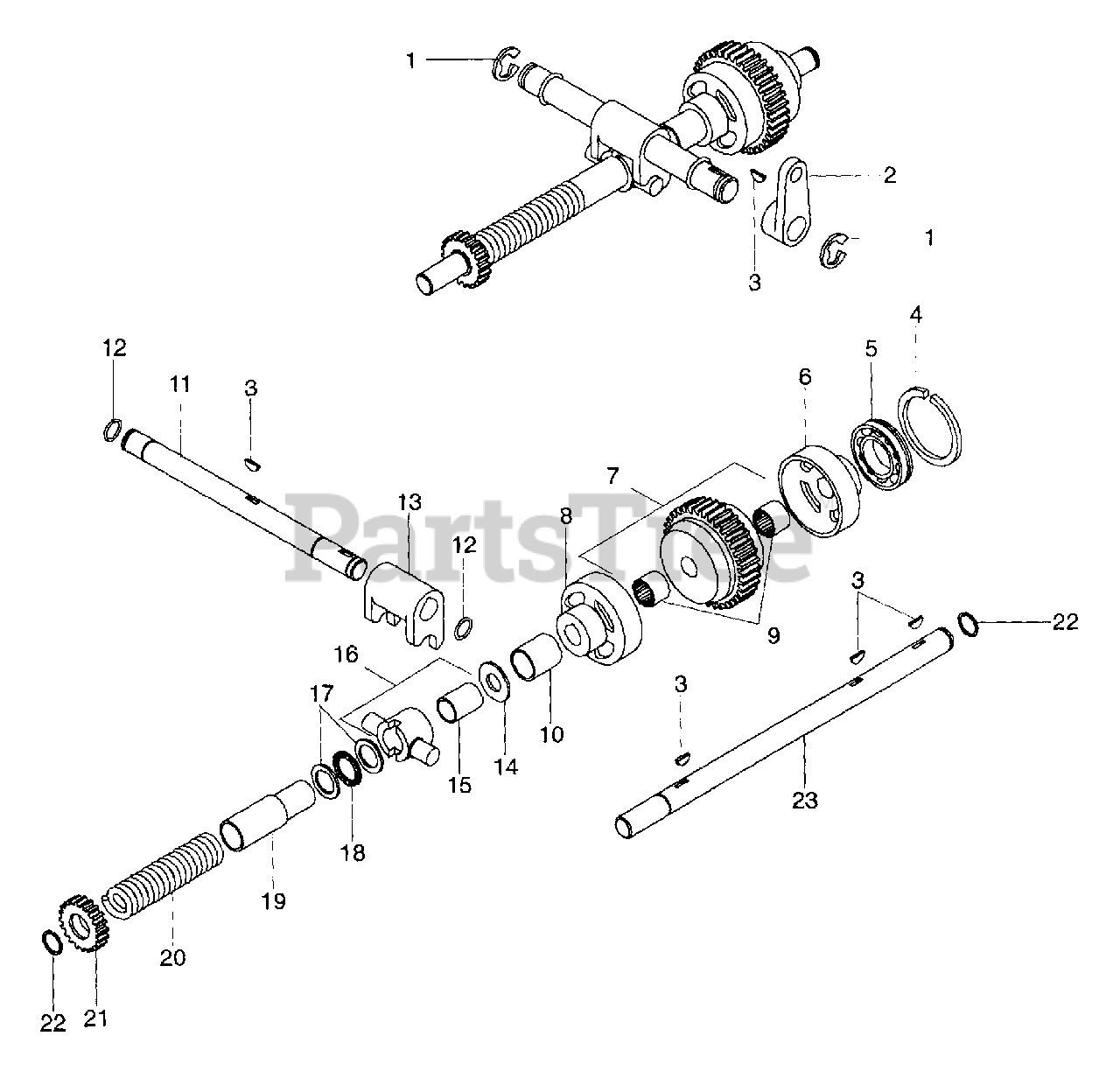

NUMBER NINE SHAFT - PTO CLUTCH Parts Diagram

  • Title
1

Gravely 011270

Ring-Retaining-External .574 x .050
(Superseded to 05707400)

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 018019

Lever, PTO
(Superseded to 08705700)

$

$

Not available

3

Gravely 124549

key, Woodruff .19 x .75
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 017966

Ring-Retaining-External 1.38 x 1.304
(Superseded to 05712200)

$

$

Not available

5

Gravely 017967

Bearing-Ball 1.38 x 2.44 x .55
(Superseded to 05420700)

$

$

Not available

6

Gravely 017952

Cup, Clutch
(Superseded to 08703300)

$

$

Not available

7

Gravely 017953

Assembly, Clutch Cone Bearing
(Superseded to 08703400)

$581.99

$

Usually ships in 4-12 days

0

8

Gravely 017957

Cup, Clutch
(Superseded to 08703800)

$129.99

$

Usually ships in 4-12 days

0

9

Gravely 017949

Bearing, Roller .75 x 1.0 x .50
(Superseded to 05420400)

$20.99

$

Usually ships in 4-12 days

0

10

Gravely 017958

Bushing-Sleeve .891 x 1.00 x 1.21
(Superseded to 08703900)

$

$

Not available

11

Gravely 018017

Shaft, PTO Yoke
(Superseded to 08705600)

$

$

Not available

12

Gravely 018018

O-Ring .625 x .75 x .062
(Superseded to 05614200)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 018016

Yoke, PTO
(Superseded to 08705500)

$410.99

$

Usually ships in 4-12 days

0

14

Gravely 014998

Bearing-N-Thrust .752 x 1.24 x .093
(Superseded to 06413300)

$5.99

$

In Stock, only 2 left!

0

15

Gravely 017962

Bushing-Sleeve 1.000 x 1.120 x 1.000
(Superseded to 05523200)

$

$

Not available

16

Gravely 017960

Shifting Collar Assy
(Superseded to 08704000)

$

$

Not available

17

Gravely 017959

Washer-Thrust 1.55 x 1.002 x .093
(Superseded to 06426500)

$18.99

$

In Stock, only 2 left!

0

18

Gravely 011225

Bearing-N-Thrust 1.0 x 1.55 x .078
(Superseded to 05427900)

$9.49

$

Usually ships in 4-12 days

0

19

Gravely 034194

Sleeve, PTO Throw Out
(Superseded to 08736000)

$93.99

$

Usually ships in 4-12 days

0

20

Gravely 034193

Spring-Compression .187 x 5.50
(Superseded to 08331700)

$94.99

$

Usually ships in 4-12 days

0

21

Gravely 017965

Gear, Spur PTO 10 DP 22 T
(Superseded to 08704200)

$

$

Not available

22

Gravely 015733

Ring-Retaining .697 x .93
(Superseded to 05712000)

$6.99

$

Usually ships in 4-12 days

0

23

Gravely 017951

Shaft, PTO Clutch
(Superseded to 08703200)

$

$

Not available
