987065 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) MANUAL LIFT Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

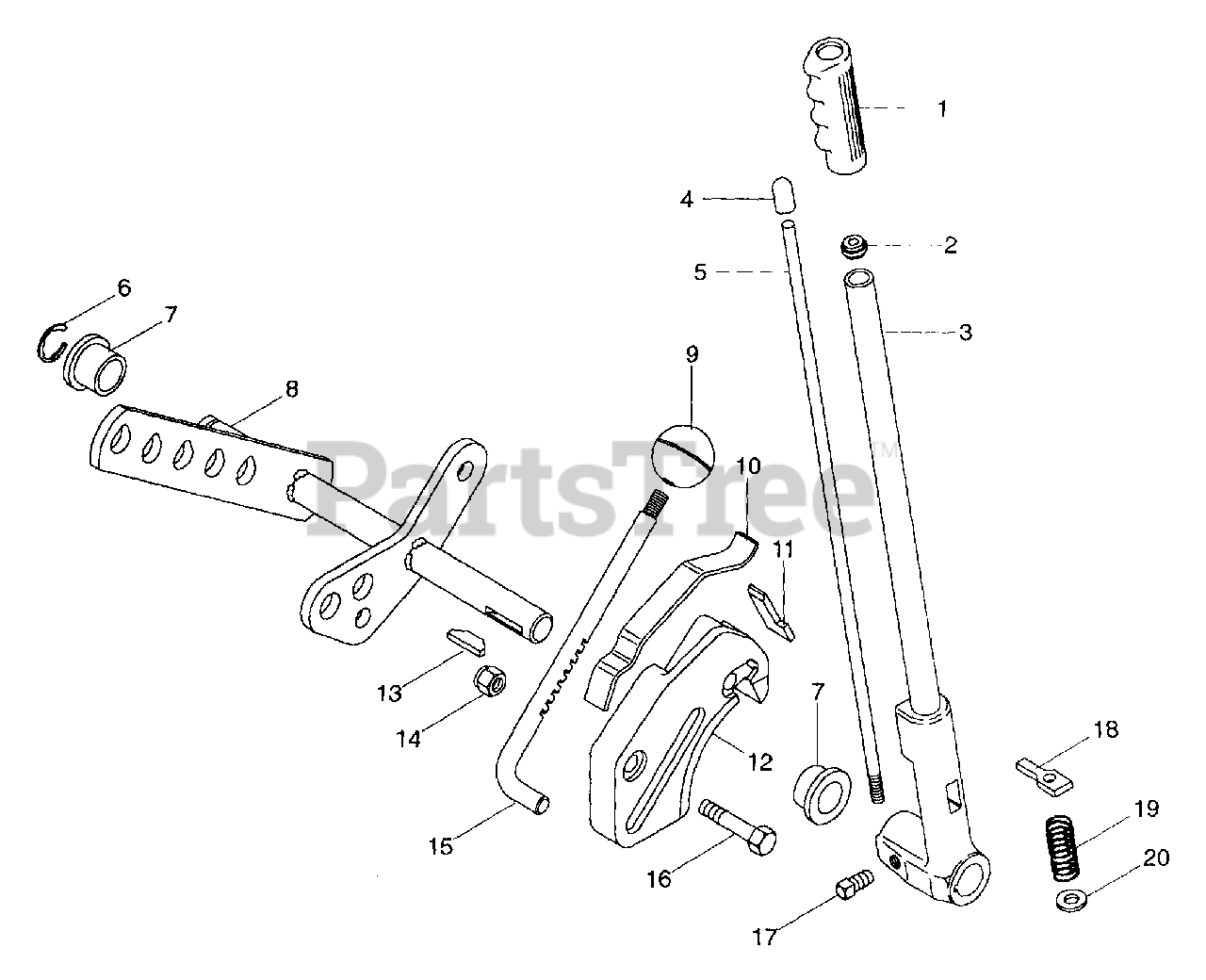

MANUAL LIFT Parts Diagram

  • Title
1

Gravely 011119

Grip, Flex
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

2

Gravely 011117

Guide, Push Rod
(Superseded to 07517900)

$

$

Not available

3

Gravely 011113

Assembly, Lever Lift
(Superseded to 08861200)

$

$

Not available

4

Gravely 019367

Tip, Push Rod
(Superseded to 07520700)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 011118

Rod, Lever Push
(Superseded to 08657800)

$

$

Not available

6

Gravely 011112

Ring-Retaining-External .835 x .056
(Superseded to 05716000)

$3.99

$

In Stock, only 3 left!

0

7

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

8

Gravely 018404

Shaft, Lift Lever Weldment
(Superseded to 08707200)

$

$

Not available

9

Gravely 010670

Knob, Control .438-20 x .50
(Superseded to 07537600)

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 011105

Spring, Stop
(Superseded to 08584300)

$58.99

$

Usually ships in 4-12 days

0

11

Gravely 011106

Stop, Lever
(Superseded to 08860900)

$

$

Not available

12

Gravely 011103

Casting, Locator
(Superseded to 08860800)

$

$

Not available

13

Gravely 187184

Key, Woodruff .25 x 2.13
(Superseded to 06609000)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

15

Gravely 018732

Rod, Lever Stop
(Superseded to 08653600)

$

$

Not available

16

Gravely 180124

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 102593

Screw-Set .38-16 x .50
(Superseded to 06004900)

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 011116

Pawl, Lever
(Superseded to 08861400)

$47.99

$

Usually ships in 4-12 days

0

19

Gravely 010682

Spring-Compression .067 x .72 x 2.0
(Superseded to 08352800)

$20.99

$

Usually ships in 4-12 days

0

20

Gravely 011670

Washer-Flat-Steel .426 x .978 x .084
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0
