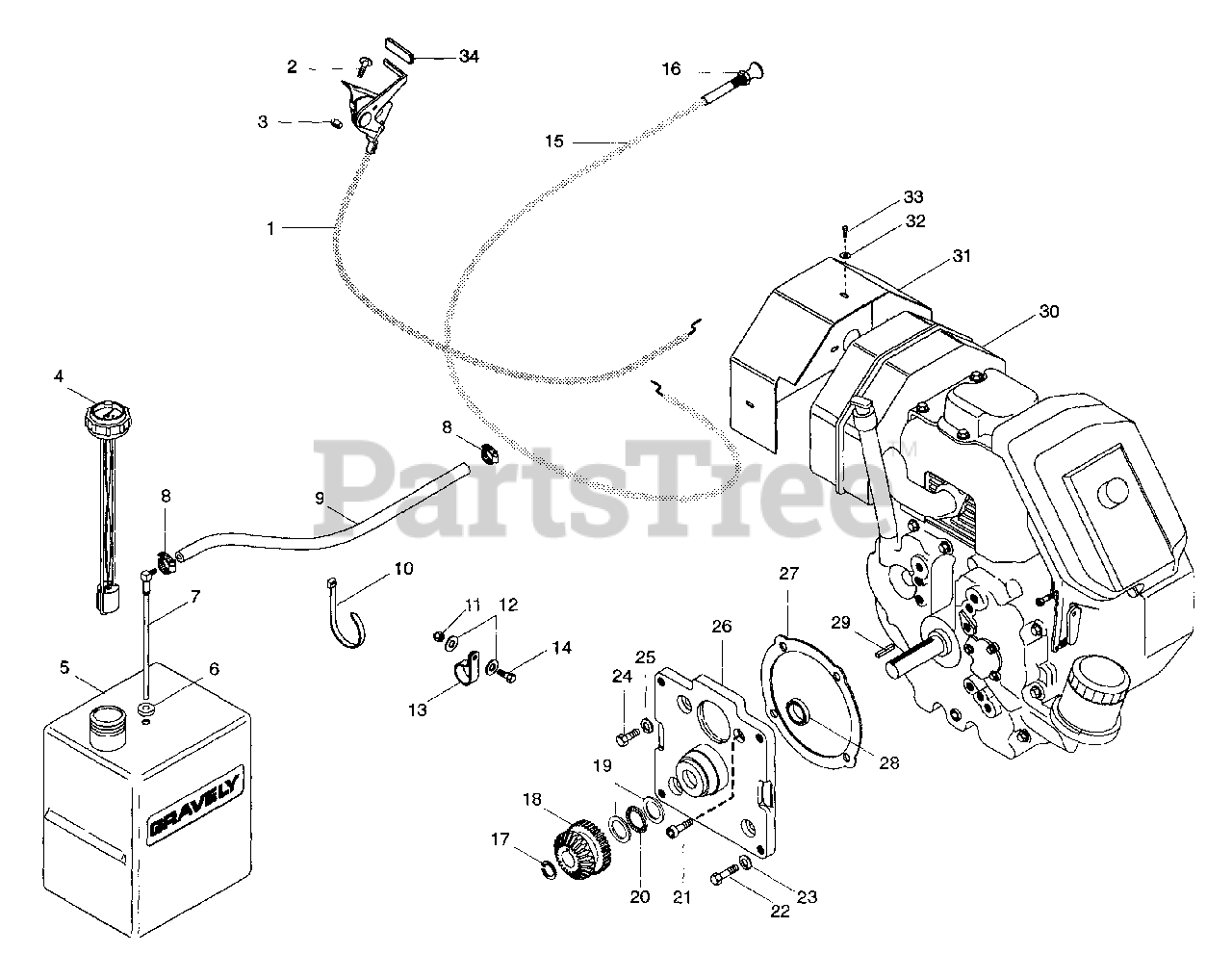

987064 - Gravely Lawn Tractor, 16hp, Without Hydraulic Lift (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM - KOHLER UNITS 14 H.P. Parts Diagram

Lawn Tractor, 16hp, Without Hydraulic Lift

FUEL AND EXHAUST SYSTEM - KOHLER UNITS 14 H.P. Parts Diagram

  • Title

1

Gravely 069256

Throttle Cable
(Superseded to 06941300)

$52.99

$

In Stock, only 1 left!

0

2

Gravely 160046

Screw-Machine 10-32 x .50
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 065028

Nut-Locking 10-32
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

4

Gravely 047615

Gauge, Fuel
(Superseded to 08983200)

$47.99

$

Usually ships in 4-12 days

0

5

Gravely 047612

Tank, Fuel
(Superseded to 08983000)

$

$

Not available

6

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

7

Gravely 047615

Fitting, Tank
(Superseded to 08983200)

$47.99

$

Usually ships in 4-12 days

0

8

Gravely 032045

Hose-Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

9

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 010629

Tie Cable
(Superseded to 07517300)

$

$

Not available

11

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 120393

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 035313

Cable Clamp
(Superseded to 03334000)

$

$

Not available

14

Gravely 180079

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 040133

Control, Choke
(Superseded to 06926200)

$

$

Not available

16

Gravely 124925

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

17

Gravely 018344

Ring-Retaining 1.249 x .050
(Superseded to 05712600)

$1.99

$

Usually ships in 4-12 days

0

18

Gravely 018343

Gear, Spur & Bevel
(Superseded to 08790200)

$323.99

$

Usually ships in 4-12 days

0

19

Gravely 040758

Washer-Thrust 1.125 x 1.750 x .123
(Superseded to 06434200)

$20.99

$

Usually ships in 4-12 days

0

20

Gravely 018341

Bearing-N-Thrust 1.84 x 1.127 x .078
(Superseded to 05421000)

$10.99

$

In Stock, only 4 left!

0

21

Gravely 421648

Screw-Socket Head .44-14 x 1.00
(Superseded to 05933000)

$

$

Not available

22

Gravely 180175

Bolt-Hex .50-13 x 1.25 Grade S
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

23

Gravely 120384

Washer-Lock .50 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

24

Gravely 180146

Bolt-Hex .44-14 x 1.125
(Superseded to 05963800)

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 131100

Washer-Lock .438 x .133
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 050126

Adapter, Engine
(Superseded to 08785400)

$

$

Not available

27

Gravely 018340

Gasket, Adapter
(Superseded to 08900100)

$8.99

$

In Stock, Qty 9

0

28

Gravely 018517

Seal 1.125 x 1.628 x .250
(Superseded to 05615100)

$9.99

$

Usually ships in 4-12 days

0

29

Gravely 018345

Key, Square .248 x 1.25 x .248
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

30

Gravely 018343

Engine, 14-HP Kohler, PS-1810
(Superseded to 08790200)

$323.99

$

Usually ships in 4-12 days

0

31

Gravely 051002

Weldment, Heat Shield
(Superseded to 08790000)

$102.99

$

Usually ships in 4-12 days

0

32

Gravely 120391

Washer-Flat-Steel .219 x .500 x .049
(Superseded to 06409200)

$

$

Not available

33

Gravely 046419

Screw-Drive 8-18 x .50
(Superseded to 07408900)

$

$

Not available

34

Gravely 075215

Knob
(Superseded to 07521500)

$

$

Not available
