987064 - Gravely Lawn Tractor, 16hp, Without Hydraulic Lift (SN: 000101 & Above) FRONT AND REAR WHEELS Parts Diagram

Lawn Tractor, 16hp, Without Hydraulic Lift

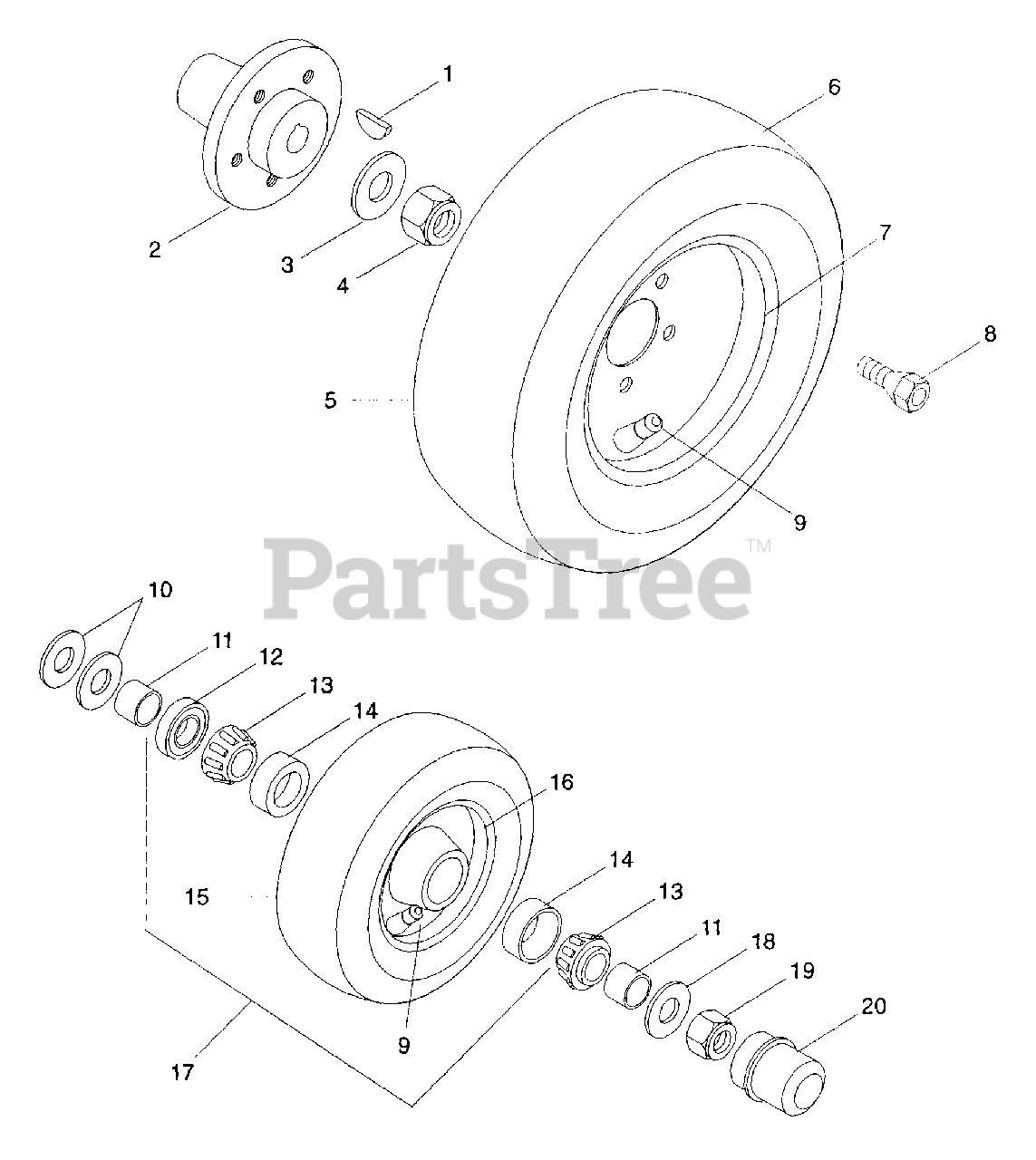

FRONT AND REAR WHEELS Parts Diagram

  • Title

1

Gravely 187184

Key, Woodruff .25 x 2.13
(Superseded to 06609000)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 040304

Hub, Tapered 4-Wheel
(Superseded to 08747100)

$

$

Not available

3

Gravely 131000

Washer-Flat-Steel .813 x 2.000 x .148
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

4

Gravely 456007

Nut-Locking-Nylon .75-10 Grade 2
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

5

Gravely 048537

Tire/Wheel Assembly 23 x 8.5-12
(Superseded to 20928000)

Note: (58,59,60,61,64,65)

$

$

Not available

5

Gravely 048540

Tire/Wheel Assembly 23 x 10.50-12
(Superseded to 07150100)

Note: (62,63)

$202.99

$

Usually ships in 4-12 days

0

6

Gravely 048920

Tire, Rear 23 x 8.50-12
(Superseded to 20928000)

Note: (58,59,60,61,64,65)

$

$

Not available

6

Gravely 048921

Tire, Rear 23 x 10.50-12
(Superseded to 20928100)

Note: (62,63)

$

$

Not available

7

Gravely 048922

Weldment, Rim
(Superseded to 20928200)

$142.99

$

Usually ships in 4-12 days

0

8

Gravely 012744

Bolt .44-20 x 1.0
(Superseded to 07051400)

$10.99

$

In Stock, only 3 left!

0

9

Gravely 011191

Valve Stem Assembly
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

10

Gravely 423315

Washer-Flat-Steel .813 x 1.370 x .100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 018448

Spacer
(Superseded to 03495900)

$15.99

$

In Stock, only 2 left!

0

12

Gravely 018447

Seal 1.206 x 1.785 x .468
(Superseded to 05613200)

$15.99

$

In Stock, only 2 left!

0

13

Gravely 018446

Bearing/Cone .750 x .61
(Superseded to 05404500)

$23.99

$

In Stock, Qty 9

0

14

Gravely 018445

Bearing/Cup 1.781 x .475
(Superseded to 05404400)

$10.99

$

In Stock, Qty 20+

0

15

Gravely 018923

Tire, Front 16 x 6.50-8

Note: (58,59,60,61,64,65)

$

$

Not available

15

Gravely 031280

Tire, Front 16 x 7.50-8
(Superseded to 07119600)

Note: (62,63)

$216.99

$

Usually ships in 4-12 days

0

16

Gravely 048925

Weldment, Rim
(Superseded to 07119600)

$216.99

$

Usually ships in 4-12 days

0

17

Gravely 018442

Tire/Wheel Assembly 16 x 6.5 x 8
(Superseded to 21119100)

Note: (58,59,60,61,64,65)

$312.99

$

Usually ships in 4-12 days

0

17

Gravely 031425

Tire/Wheel Assembly 16 x 7.50-8
(Superseded to 21212500)

Note: (62,63)

$284.99

$

Usually ships in 4-12 days

0

18

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 418692

Nut-Locking-Nylon .625-11 Grade 2
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

20

Gravely 018449

Dust Cap
(Superseded to 03496000)

$14.99

$

In Stock, only 3 left!

0
