987060 - Gravely Lawn Tractor, 16hp, Without Hydraulic Lift (SN: 000101 & Above) REAR DECK AND SEAT Parts Diagram

Lawn Tractor, 16hp, Without Hydraulic Lift

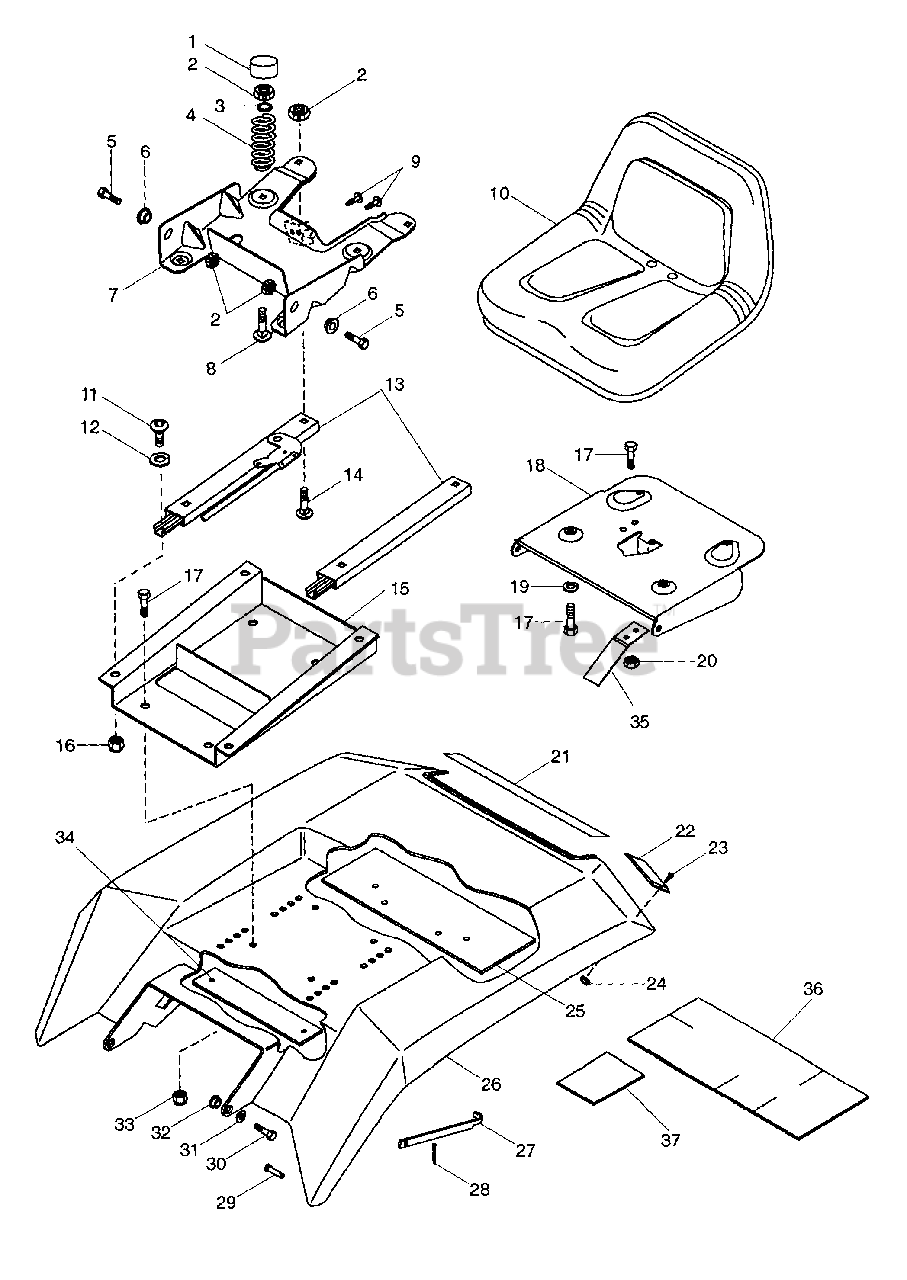

REAR DECK AND SEAT Parts Diagram

  • Title

1

Gravely 075216

Tube Cap
(Superseded to 07521600)

$1.49

$

In Stock, Qty 6

0

2

Gravely 413447

Nut-Locking .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 064123

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 083282

Spring-Compression .148 x 1.23 x 2.41
(Superseded to 08328200)

$15.99

$

In Stock, only 2 left!

0

5

Gravely 180077

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 055162

Bushing-Flange .325 x .465 x .333 x .685
(Superseded to 05516200)

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 036181

Seat Box
(Superseded to 03618100)

$

$

Not available

8

Gravely 062041

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 074045

Screw-Tapping 12-24 x .50
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

10

Gravely 091124

Seat V-560
(Superseded to 09112400)

$

$

Not available

11

Gravely 039062

Screw-Cap Button Head .31-18 x .50 Grade 5
(Superseded to 07008100)

$

$

Not available

12

Gravely 063032

Washer-Lock External .313 x .030
(Superseded to 06303200)

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 036008

Seat Slides
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

14

Gravely 062033

Bolt-Round Head Square Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 087641

Seat Box
(Superseded to 08764100)

$

$

Not available

16

Gravely 120376

Nut-Hex .312-18 Grade 2
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

17

Gravely 059022

Bolt-Hex .31-18 x .75 Grade 2
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 036191

Seat Pivot Plate
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

19

Gravely 063003

Washer-Lock .312 x .097
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 065078

Nut-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 044070

Decal, Gravely Logo

$

$

Not available

22

Gravely 051329

Reflector, Rectangular Reflex
(Superseded to 07536500)

$22.99

$

Usually ships in 4-12 days

0

23

Gravely 160046

Screw-Machine 10-32 x .50
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 411893

Nut-Locking 10-32
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

25

Gravely 051601

Bracket, Seat Support
(Superseded to 08790900)

$33.99

$

Usually ships in 4-12 days

0

26

Gravely 040453

Weldment, Seat Pan Head Notched
(Superseded to 08748500)

$

$

Not available

27

Gravely 024996

Strap, Fender Hold Up
(Superseded to 08727200)

$25.99

$

Usually ships in 4-12 days

0

28

Gravely 121223

Pin-Cotter .062 x .75
(Superseded to 06707500)

$0.99

$

In Stock, only 2 left!

0

29

Gravely 018420

Pin-Clevis .250 x .406
(Superseded to 06809700)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 180122

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 024815

Bushing-Flange .406 x .88 x .270 x .140
(Superseded to 05515800)

$9.49

$

In Stock, only 4 left!

0

33

Gravely 413447

Nut-Locking-Center .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 051278

Plate, Control Shaft
(Superseded to 09004051)

$

$

Not available

35

Gravely 036167

Spring Plate

$

$

Not available

36

087988

Heat Shield

$

$

Not available

37

087989

Heat Shield

$

$

Not available
