987060 - Gravely Lawn Tractor, 16hp, Without Hydraulic Lift (SN: 000101 & Above) NUMBER ONE SHAFT - FORWARD CLUTCH Parts Diagram

Lawn Tractor, 16hp, Without Hydraulic Lift

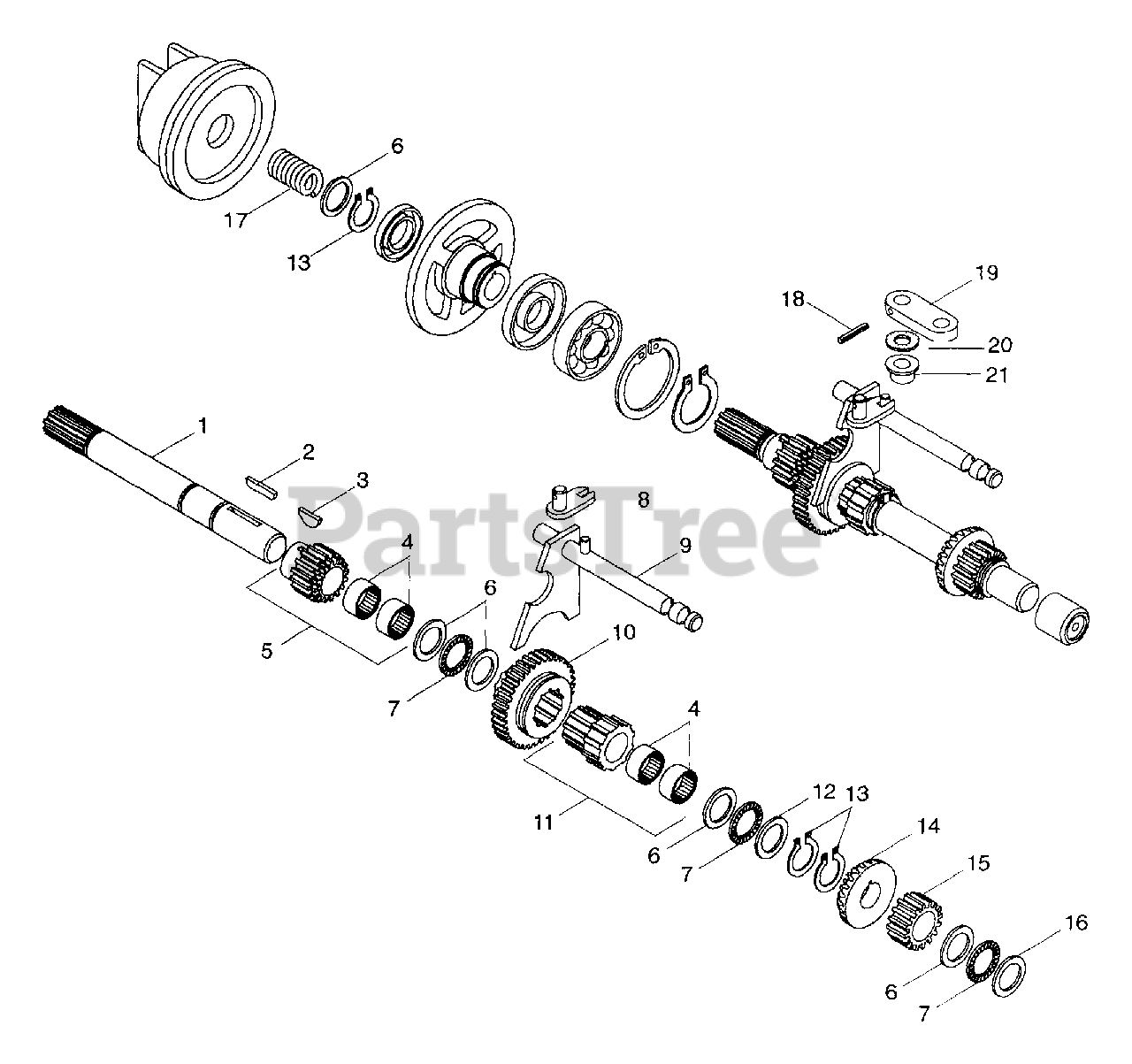

NUMBER ONE SHAFT - FORWARD CLUTCH Parts Diagram

  • Title
1

Gravely 046371

Shaft, Forward Clutch
(Superseded to 08778900)

$452.99

$

Usually ships in 4-12 days

0

2

Gravely 117989

Key, Woodruff .19 x 1.25
(Superseded to 06608100)

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 431787

Key, Woodruff .19 x .63
(Superseded to 06609300)

$2.99

$

In Stock, Qty 11

0

4

Gravely 017949

Bearing-Roller .75 x 1.0 x .50
(Superseded to 05420400)

$20.99

$

Usually ships in 4-12 days

0

5

Gravely 018025

Gear and Bearing Assembly
(Superseded to 08706000)

$

$

Not available

6

Gravely 011223

Bearing-N-Thrust .752 x 1.24 x .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

7

Gravely 006741

Bearing-N-Thrust .754 x 1.24 x .078
(Superseded to 05410400)

$12.99

$

In Stock, Qty 7

0

8

Gravely 017926

Weldment, Shifter
(Superseded to 08701900)

$

$

Not available

9

Gravely 020755

Weldment, Shift Rail
(Superseded to 08720800)

$

$

Not available

10

Gravely 018011

Gear, Spur 25 P 10 DP 36 T
(Superseded to 08705400)

$

$

Not available

11

Gravely 018007

Gear and Bearing Assembly
(Superseded to 08705200)

$

$

Not available

12

Gravely 006742

Washer-Thrust .752 x 1.240 x .062
(Superseded to 06431900)

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 011135

Ring-Retaining-Internal .750 x .042
(Superseded to 05700135)

$2.49

$

In Stock, only 4 left!

0

14

Gravely 045585

Gear, Bevel
(Superseded to 08790100)

$

$

Not available

15

Gravely 018003

Gear, 10 DP 16 Teeth x .750
(Superseded to 08705100)

$6.99

$

Usually ships in 4-12 days

0

16

Gravely 014998

Bearing-N-Thrust .752 x 1.24 x .093
(Superseded to 06413300)

$5.99

$

In Stock, only 2 left!

0

17

Gravely 020444

Spring-Compression .085 x .80 x 1.00
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

18

Gravely 421202

Pin-Roll .187 x 1.000
(Superseded to 05808800)

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 017929

Arm, Shifter
(Superseded to 08702000)

$25.99

$

Usually ships in 4-12 days

0

20

Gravely 021141

Washer-Felt .437 x 1.00 x .031
(Superseded to 05615600)

$3.99

$

In Stock, Qty 8

0

21

Gravely 017925

Bushing-Flange .626 x .500 x 1.0
(Superseded to 05519900)

$11.99

$

Usually ships in 4-12 days

0
