987054 - Gravely Lawn Tractor (SN: 000101 & Above) NUMBER NINE SHAFT - PTO CLUTCH Parts Diagram

Lawn Tractor

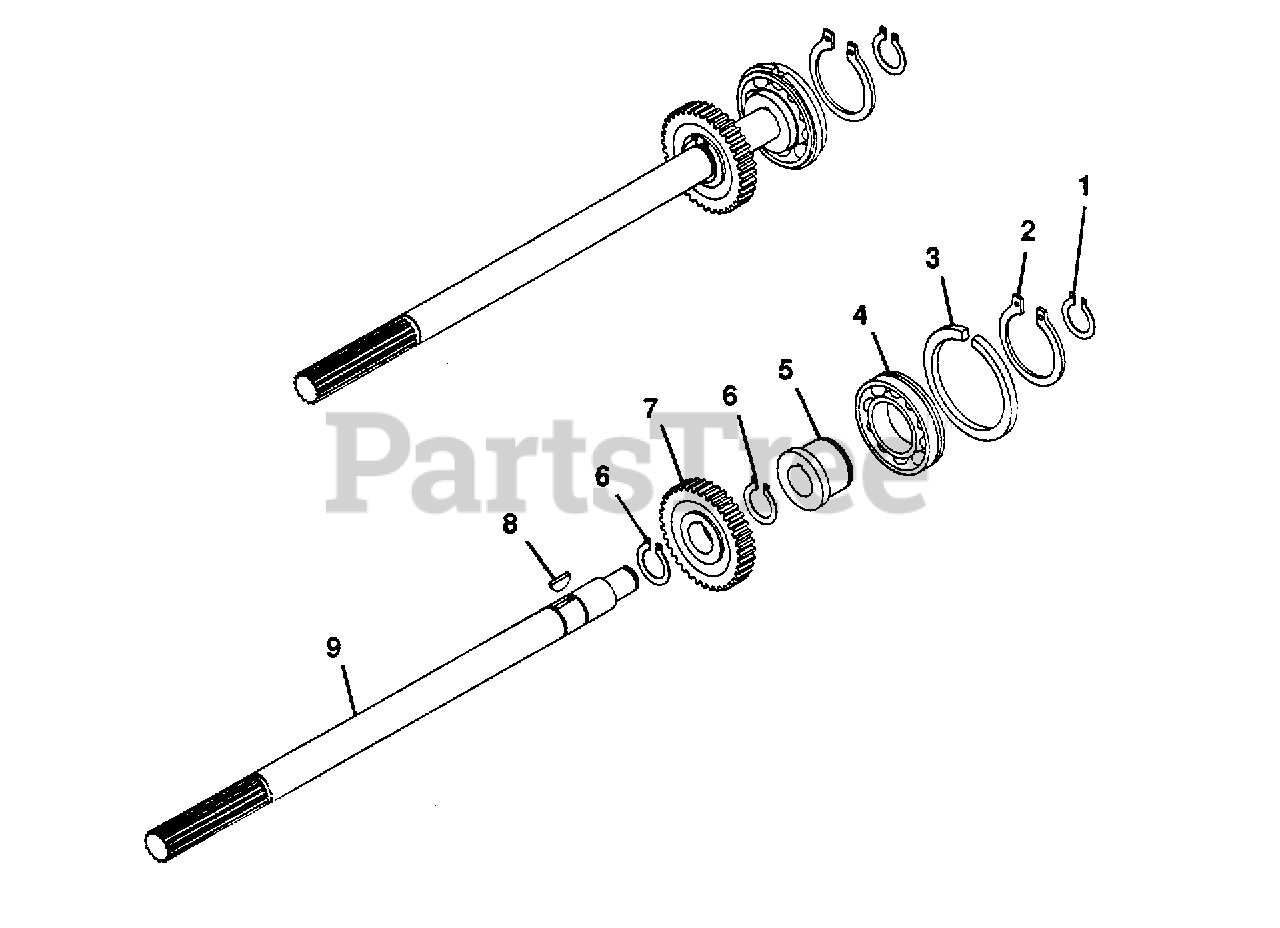

NUMBER NINE SHAFT - PTO CLUTCH Parts Diagram

  • Title
1

Gravely 011135

RING, RETAINING .750 SHAFT
(Superseded to 05700135)

$2.49

$

In Stock, only 4 left!

0

2

Gravely 023523

RING, RETAINING
(Superseded to 05714300)

$

$

Not available

3

Gravely 017966

RING, RETAINING
(Superseded to 05712200)

$

$

Not available

4

Gravely 017967

BEARING, BALL 1.378X2.440X.551
(Superseded to 05420700)

$

$

Not available

5

Gravely 035491

ADAPTER, PTO BEARING
(Superseded to 08737700)

$

$

Not available

6

Gravely 021557

RING, RETAINING .984 SHAFT
(Superseded to 05713600)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 035441

GEAR, PTO CROSS SHAFT
(Superseded to 08737600)

$

$

Not available

8

Gravely 124549

KEY, WOODRUFF .187X.750 HRD #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 042635

SHAFT, PTO
(Superseded to 08760100)

$

$

Not available
