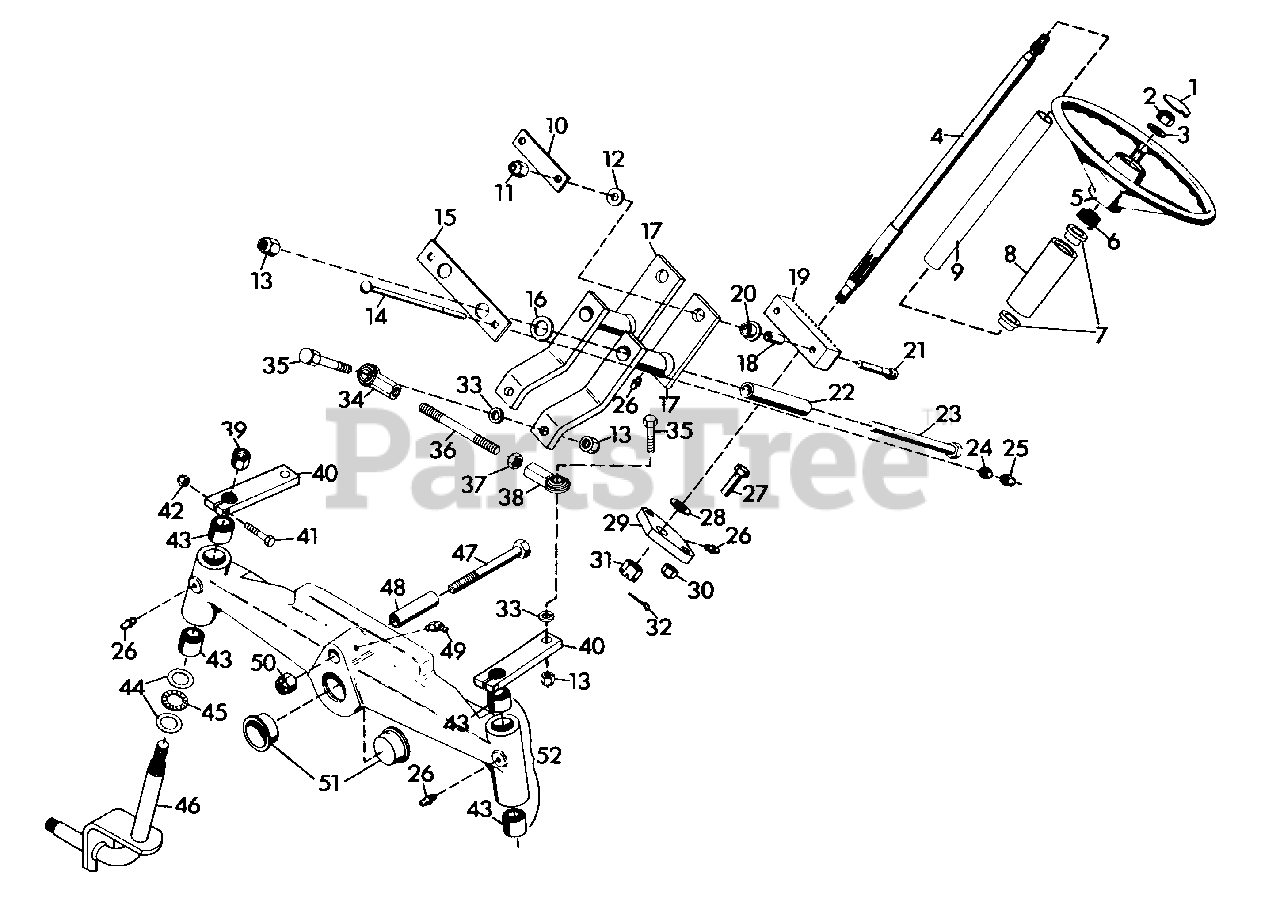

987045 - Gravely Lawn Tractor, 18hp, With Hydraulic Lift (SN: 000101 & Above) STEERING Parts Diagram

Lawn Tractor, 18hp, With Hydraulic Lift

STEERING Parts Diagram

  • Title

1

Gravely 031426

CAP, STEERING WHEEL
(Superseded to 03489800)

$

$

Not available

2

Gravely 124847

NUT, JAM 5/8-11 HEX
(Superseded to 06539300)

$

$

Not available

3

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 045287

SHAFT, STEERING
(Superseded to 21274700)

$

$

Not available

5

Gravely 031281

WHEEL, STEERING
(Superseded to 03066600)

$

$

Not available

6

Gravely 020444

SPRING, COMPRESSION 1X.80X36 LB/IN
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

7

Gravely 010174

BUSHING, NYLON .760X1.000X.600 FLANGE
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

8

Gravely 041943

BUSHING, STEERING WHEEL
(Superseded to 09035000)

$

$

Not available

9

Gravely 040984

TUBE, PLASTIC 1.0 I.D.
(Superseded to 07525500)

$

$

Not available

10

Gravely 021246

STRAP, RACK AND PINION
(Superseded to 08723000)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 446470

WASHER, FLAT .375X1.125X.065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

13

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 034074

BOLT, 5/16-18X5.5 RD HD SQ NK
(Superseded to 06222800)

$

$

Not available

15

Gravely 021079

PLATE, ADJUSTMENT
(Superseded to 08722000)

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 014998

RACE, BEARING THRUST .752X1.240X.095
(Superseded to 06413300)

$5.99

$

In Stock, only 2 left!

0

17

Gravely 045643

WELDMENT, STEERING ARM
(Superseded to 08769800)

$

$

Not available

18

Gravely 021076

BUSHING, .391X.622X.670
(Superseded to 08902300)

$27.99

$

In Stock, only 2 left!

0

19

Gravely 021075

GEAR, RACK
(Superseded to 08791700)

$

$

Not available

20

Gravely 021077

BEARING, FLANGE(P/M BRONZE)
(Superseded to 05519100)

Note: (P/M BRONZE)

$7.49

$

Usually ships in 4-12 days

0

21

Gravely 454473

SCREW, CAP 3/8-16X2.0 HEX SOCKET HD
(Superseded to 05933400)

$3.49

$

In Stock, only 2 left!

0

22

Gravely 021078

SLEEVE, PIVOT
(Superseded to 08721900)

$

$

Not available

23

Gravely 443734

BOLT, HEX 1/2-13X6.0
(Superseded to 05961800)

$

$

Not available

24

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

25

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

27

Gravely 180149

BOLT, HEX 7/16-14X1.5
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

28

Gravely 035344

RACE, THRUST
(Superseded to 06426300)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 035064

SUPPORT, STEERING SHAFT
(Superseded to 08737200)

$

$

Not available

30

Gravely 039413

NUT, LOCK 7/16-14
(Superseded to 06527500)

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 121592

NUT, HEX 1/2-13 SLOTTED
(Superseded to 06539100)

$5.99

$

Usually ships in 4-12 days

0

32

Gravely 121224

PIN, COTTER .09X1.00

$0.99

$

Usually ships in 4-12 days

0

33

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

34

Gravely 044942

ROD END, STEERING L.H.
(Superseded to 08763800)

$

$

Not available

35

Gravely 180181

BOLT, HEX 1/2-13X2.00
(Superseded to 05901929)

$

$

Not available

36

Gravely 044940

TIE ROD, STEERING
(Superseded to 08655900)

$103.99

$

Usually ships in 4-12 days

0

37

Gravely 124934

NUT, JAM 1/2-20
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

38

Gravely 044941

ROD END, STEERING R.H.
(Superseded to 08763700)

$56.99

$

Usually ships in 4-12 days

0

39

Gravely 124589

NUT, HEX 5/8-11
(Superseded to 06535600)

$2.99

$

In Stock, only 3 left!

0

40

Gravely 044939

ARM, TIE ROD AXLE
(Superseded to 08763600)

$109.99

$

Usually ships in 4-12 days

0

41

Gravely 181618

BOLT, HEX 5/16-24X1.75
(Superseded to 05902007)

$2.99

$

In Stock, Qty 11

0

42

Gravely 190139

NUT, LOCK 5/16-24
(Superseded to 06526500)

$1.99

$

Usually ships in 4-12 days

0

43

Gravely 023241

BUSHING, .877X1.004X1.0
(Superseded to 05516600)

$21.99

$

Usually ships in 4-12 days

0

44

Gravely 021541

RACE, BEARING THRUST
(Superseded to 06426100)

$11.99

$

In Stock, only 3 left!

0

45

Gravely 021543

BEARING, NEEDLE THRUST
(Superseded to 05422000)

$11.99

$

In Stock, only 3 left!

0

46

Gravely 018463

WELDMENT, KING PIN
(Superseded to 08707700)

$255.99

$

Usually ships in 4-12 days

0

47

Gravely 271781

BOLT, HEX 3/4-10X4.5
(Superseded to 05968800)

$9.49

$

In Stock, only 1 left!

0

48

Gravely 023237

TUBE, AXLE PIVOT
(Superseded to 08725200)

$68.99

$

In Stock, Qty 7

0

49

Gravely 411031

FITTING, LUBE 45 DEG.
(Superseded to 07012700)

$3.99

$

Usually ships in 4-12 days

0

50

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

51

Gravely 018785

CAP, FRONT AXLE
(Superseded to 07520300)

$3.49

$

In Stock, only 3 left!

0

52

Gravely 045400

AXLE, STEERING
(Superseded to 08766900)

$

$

Not available
