987036 - Gravely Lawn Tractor, 16hp, Without Hydraulic Lift (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM Parts Diagram

Lawn Tractor, 16hp, Without Hydraulic Lift

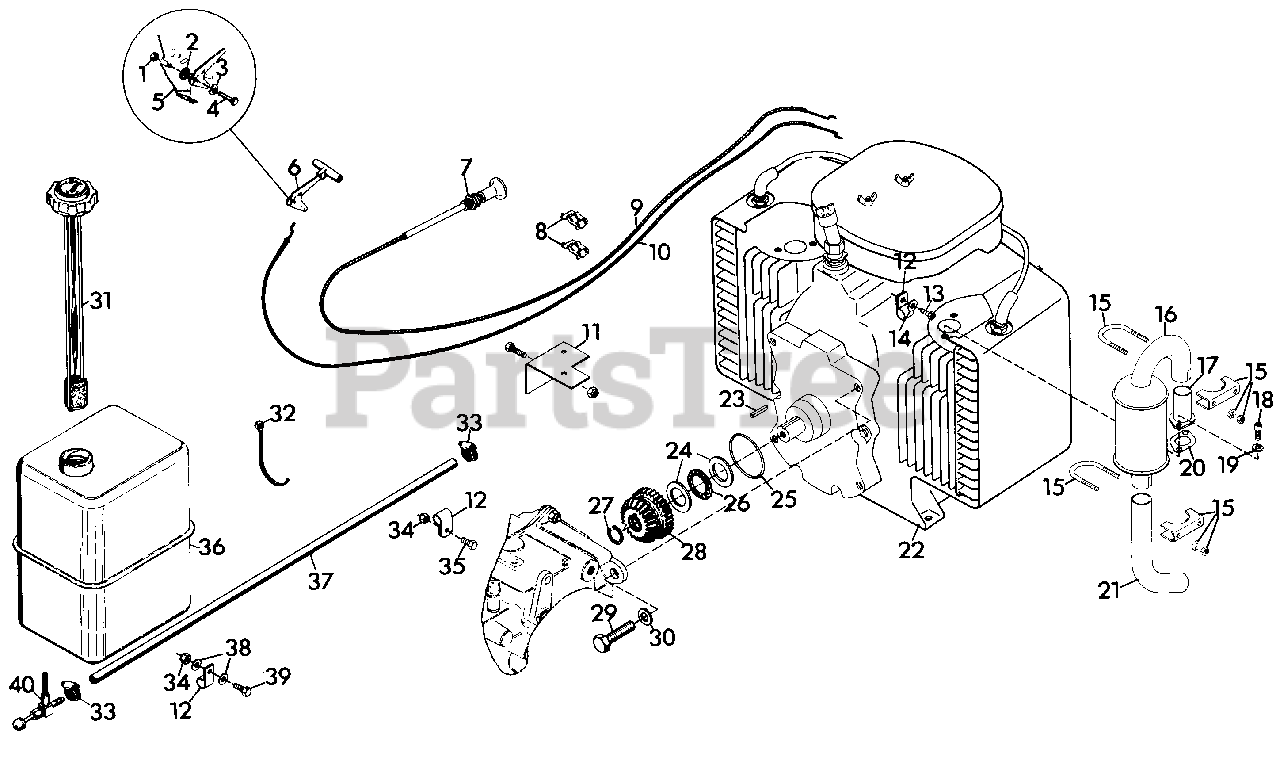

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title
1

Gravely 416430

NUT, LOCK 1/4-28
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

2

Gravely 011772

WASHER, FRICTION
(Superseded to 06431500)

$13.99

$

Usually ships in 4-12 days

0

3

Gravely 011774

WASHER, SPRING
(Superseded to 03493400)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 181566

BOLT, HEX 1/4-28X.75
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

5

Gravely 011770

BRACKET, MOUNTING
(Superseded to 03493300)

$

$

Not available

6

Gravely 011773

ASSEMBLY, KNOB AND LEVER
(Superseded to 06917100)

$

$

Not available

7

Gravely 124925

NUT, JAM 3/8-24 HEX
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

8

Gravely 007331

CLIP, SPEED
(Superseded to 06931500)

$

$

Not available

9

Gravely 039859

CONTROL, CHOKE
(Superseded to 06926100)

$59.99

$

In Stock, only 2 left!

0

10

Gravely 020565

ASSEMBLY, CHOKE CONDUIT
(Superseded to 06921400)

$39.99

$

Usually ships in 4-12 days

0

11

Gravely 040448

BRACKET, THROTTLE AND CHOKE
(Superseded to 08748100)

$

$

Not available

12

Gravely 035313

CLAMP, NYLON
(Superseded to 03334000)

$

$

Not available

13

Gravely 411890

SCREW, TAPPING 1/4-20X.625 HHD ST
(Superseded to 21071400)

$

$

Not available

14

Gravely 422845

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 014728

CLAMP, MUFFLER
(Superseded to 06920900)

$6.99

$

In Stock, only 1 left!

0

16

Gravely 041958

MUFFLER
(Superseded to 20705600)

$

$

Not available

17

Gravely 042123

WELDMENT, HEADER

$

$

Not available

18

Gravely 421705

SCREW, CAP 5/16-18X.75 S/HD
(Superseded to 05901827)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 120214

WASHER, LOCK 5/16-18 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 011202

GASKET, EXHAUST
(Superseded to 08824700)

$10.99

$

In Stock, only 2 left!

0

21

Gravely 041959

EXTENSION, EXHAUST
(Superseded to 20705700)

$

$

Not available

22

Gravely 041787

ENGINE, 16 HP MAGNUM

$

$

Not available

23

Gravely 018345

KEY, SQUARE .250X1.250
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

24

Gravely 040758

RACE, BEARING THRUST 1.125X1.750X.123/.126
(Superseded to 06434200)

$20.99

$

Usually ships in 4-12 days

0

25

Gravely 018346

O-RING, 3.000X3.188X.094
(Superseded to 05614900)

$3.49

$

In Stock, Qty 11

0

26

Gravely 018341

BEARING, THRUST 1.127X1.740X.078
(Superseded to 05421000)

$10.99

$

In Stock, only 4 left!

0

27

Gravely 018344

RING, RETAINING 1.125 SHAFT
(Superseded to 05712600)

$1.99

$

Usually ships in 4-12 days

0

28

Gravely 018343

GEAR, SPUR AND BEVEL, INPUT
(Superseded to 08790200)

$323.99

$

Usually ships in 4-12 days

0

29

Gravely 180179

BOLT, HEX 1/2-13X1.75
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

30

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

31

Gravely 021415

GAUGE, GAS
(Superseded to 08723700)

$

$

Not available

32

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

33

Gravely 032045

CLAMP, HOSE
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

34

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 040620

TANK, FUEL
(Superseded to 58700500)

$

$

Not available

37

Gravely 021134

LINE, FUEL
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 018563

VALVE, FUEL 90 DEG. REVERSE FLOW
(Superseded to 08707900)

$

$

Not available

NS

Gravely 411893

NUT, LOCK 10-32
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

NS

Gravely 160046

SCREW, MACHINE 10-32X.50 PHD
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0
