987031 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) TRANSMISSION CONTROLS Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

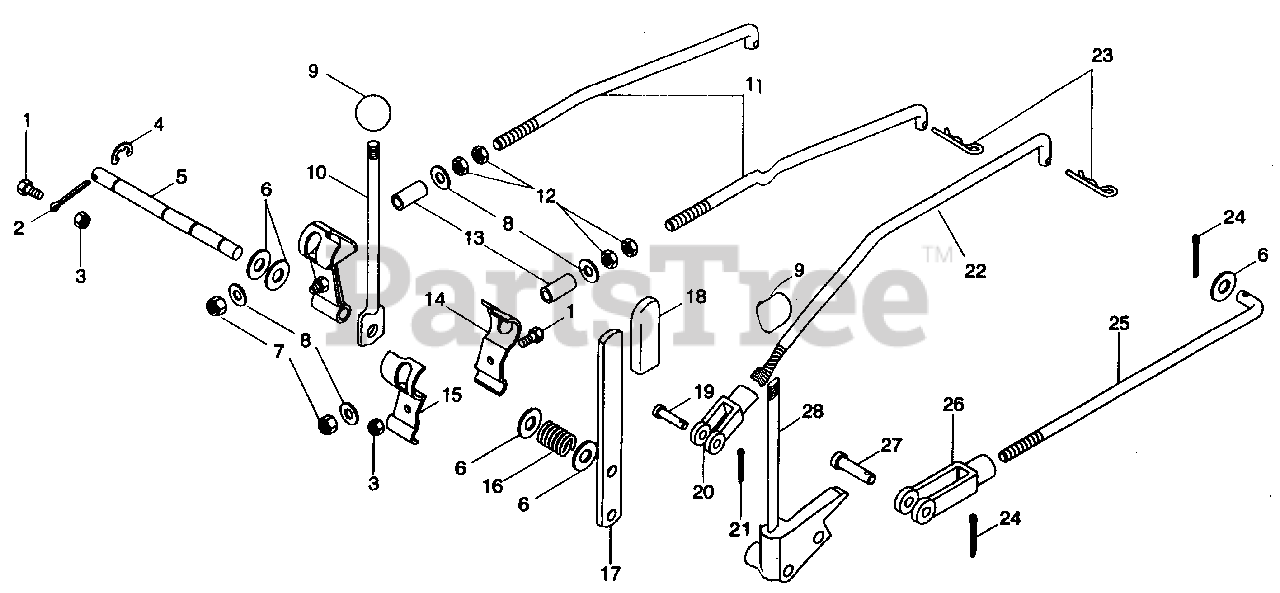

TRANSMISSION CONTROLS Parts Diagram

  • Title

1

Gravely 180077

BLT-HEX .31-18 X .75 PL GR 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 103422

PIN-COTR .250 X 2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 419455

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 057102

RG-RTNG-EXT .500 X .042
(Superseded to 05710200)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 087642

CROSS SHAFT
(Superseded to 08764200)

$293.99

$

Usually ships in 4-12 days

0

6

Gravely 120396

WSHR-FL-STL .531 X 1.062 X .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 120388

WSHR-FL-STL .438 X 1.0 X .083 PL
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 010670

KNOB-CONTROL .438-20 X .50
(Superseded to 07537600)

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 018371

LVR, SHIFT
(Superseded to 08653500)

$

$

Not available

11

Gravely 033994

ROD, SHIFT
(Superseded to 08654400)

$

$

Not available

12

Gravely 124829

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 033986

BUSH., S .396 X .490 X 1.63 ST
(Superseded to 08710300)

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 033988

ARM, SHIFTER RIGHT
(Superseded to 08735300)

$

$

Not available

15

Gravely 033989

ARM, SHIFTER LEFT
(Superseded to 08735400)

$

$

Not available

16

Gravely 018372

SG-COMP .085 X .50 X 2.75 WLD 34
(Superseded to 08328000)

$

$

Not available

17

Gravely 033990

LVR, HIGH-LOW SHIFT
(Superseded to 08735500)

$

$

Not available

18

Gravely 034067

GRIP HANDLE
(Superseded to 07523000)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 138086

PIN, CLEVIS .500 X 1.213
(Superseded to 06812100)

$13.99

$

In Stock, only 1 left!

0

20

Gravely 018380

CLVS, .38-24 ADJUSTABLE
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

21

Gravely 121222

PIN-COTR .09 X .75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

22

Gravely 040143

ROD, 2-SPEED
(Superseded to 08657700)

$

$

Not available

23

Gravely 011860

PIN-HAIR INT .08 X .18 X 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 137185

PIN-COTR .12 X 1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

25

Gravely 018386

ROD, PTO
(Superseded to 08657300)

$34.99

$

In Stock, only 1 left!

0

26

Gravely 018387

YOKE, .50-20, ADJUSTABLE
(Superseded to 08797200)

$

$

Not available

27

Gravely 138086

PIN, CLEVIS; .500 X 1.213
(Superseded to 06812100)

$13.99

$

In Stock, only 1 left!

0

28

Gravely 034065

ASM, P.T.O. CONTROL
(Superseded to 08735800)

$113.99

$

Usually ships in 4-12 days

0
