987031 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM 16, 18, & 20 HP Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

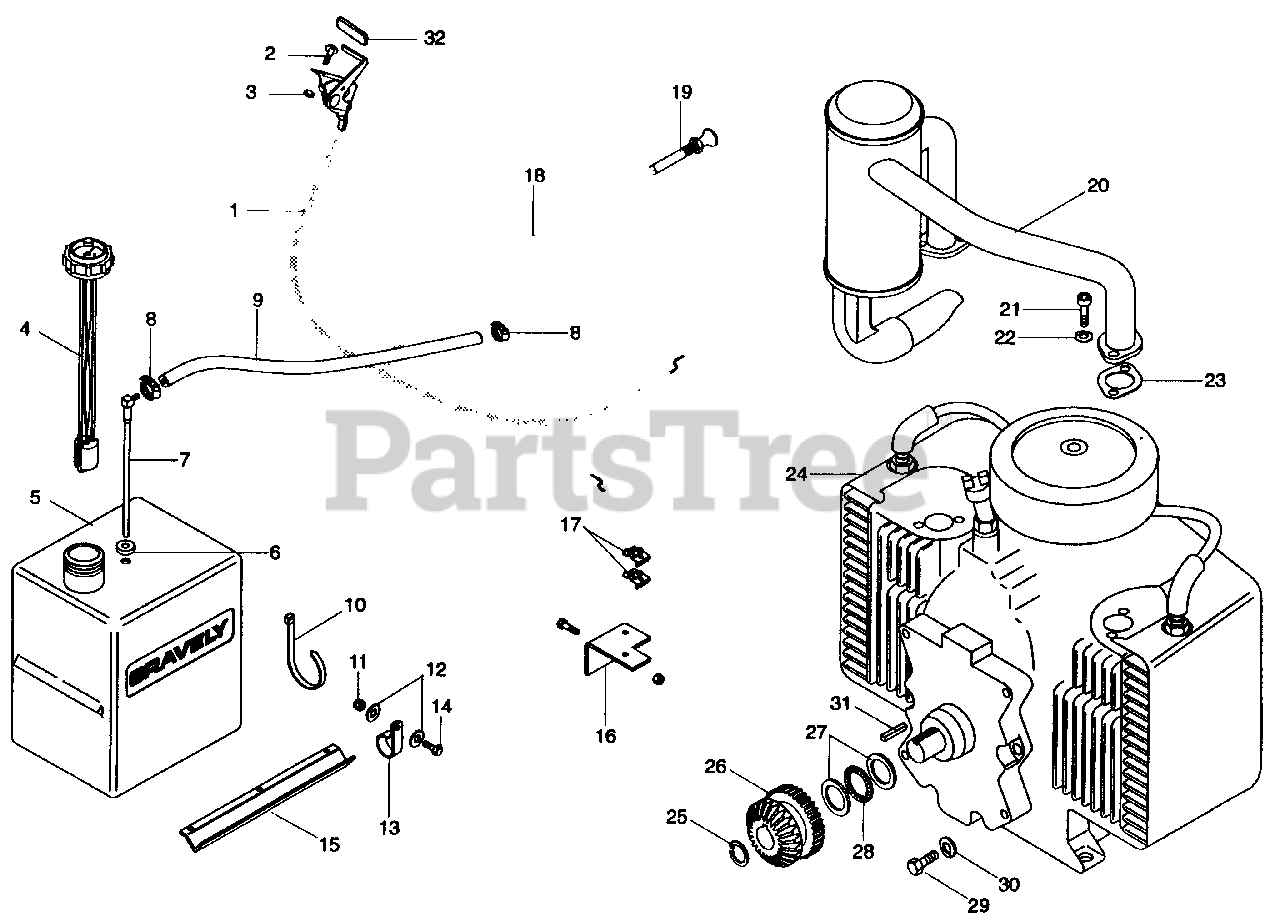

FUEL AND EXHAUST SYSTEM 16, 18, & 20 HP Parts Diagram

  • Title

1

Gravely 069256

THROTTLE CABLE
(Superseded to 06941300)

$52.99

$

In Stock, only 1 left!

0

2

Gravely 160046

SCR-MACH 10-32 X .50 PH D
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 065028

NUT-LK 10-32 NY PL
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

4

Gravely 047615

GA, FUEL
(Superseded to 08983200)

$47.99

$

Usually ships in 4-12 days

0

5

Gravely 047612

TANK FUEL
(Superseded to 08983000)

$

$

Not available

6

Gravely 050246

BUSHING
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

7

Gravely 047615

FTG. TANK
(Superseded to 08983200)

$47.99

$

Usually ships in 4-12 days

0

8

Gravely 032045

CLAMP-HOSE
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

9

Gravely 021134

GASOLINE, BULK
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

11

Gravely 419455

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 120393

WSHR-FL-STL .344 X .688 X .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 035313

CABLE CLAMP
(Superseded to 03334000)

$

$

Not available

14

Gravely 180079

BLT-HEX .31-18 X 1.000 PL GR 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 032030

SHIELD, HEAT
(Superseded to 08734400)

$

$

Not available

16

Gravely 040448

BRKT, THROTTLE & CHOKE
(Superseded to 08748100)

$

$

Not available

17

Gravely 007331

CLIP, SPEED
(Superseded to 06931500)

$

$

Not available

18

Gravely 039859

CONTROL, CHOKE
(Superseded to 06926100)

$59.99

$

In Stock, only 2 left!

0

19

Gravely 124925

NUT-JAM .375-24 PL
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

20

Gravely 051902

MUFFLER, EXHAUST
(Superseded to 08792500)

$

$

Not available

21

Gravely 421705

SCR-CAP .31-18 X .75 S/HD
(Superseded to 05901827)

$2.49

$

In Stock, only 3 left!

0

22

Gravely 120214

WSHR-LOCK .313 X .078 PL
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 044390

GASKET, EXHAUST
(Superseded to 08824700)

$10.99

$

In Stock, only 2 left!

0

24

Gravely 047480

ENG, 16 HP MAGNUM, PS-24633

$

$

Not available

24

Gravely 045527

ENG, 18 HP MAGNUM, PS-24590

$

$

Not available

24

Gravely 045529

ENG, 20 HP S.B. KOHLER PT .49562

$

$

Not available

25

Gravely 018344

RG-RTNG-INT 1.249 X .050
(Superseded to 05712600)

$1.99

$

Usually ships in 4-12 days

0

26

Gravely 051321

INPUT GEAR
(Superseded to 08790200)

$323.99

$

Usually ships in 4-12 days

0

27

Gravely 040758

WSHR-THRST 1.125 X 1.750 X .123
(Superseded to 06434200)

$20.99

$

Usually ships in 4-12 days

0

28

Gravely 018341

BRG-N-THRST 1.74 X 1.127 X .078
(Superseded to 05421000)

$10.99

$

In Stock, only 4 left!

0

29

Gravely 180179

BLT-HEX .50-13 X 1.75
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

30

Gravely 120304

WSHR-LOCK .50 REG

$

$

Not available

31

Gravely 018345

KEY, SQ .248 X 1.25 X .248
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

32

Gravely 075215

GRIP
(Superseded to 07521500)

$

$

Not available
