987031 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) FRONT AND REAR WHEELS Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

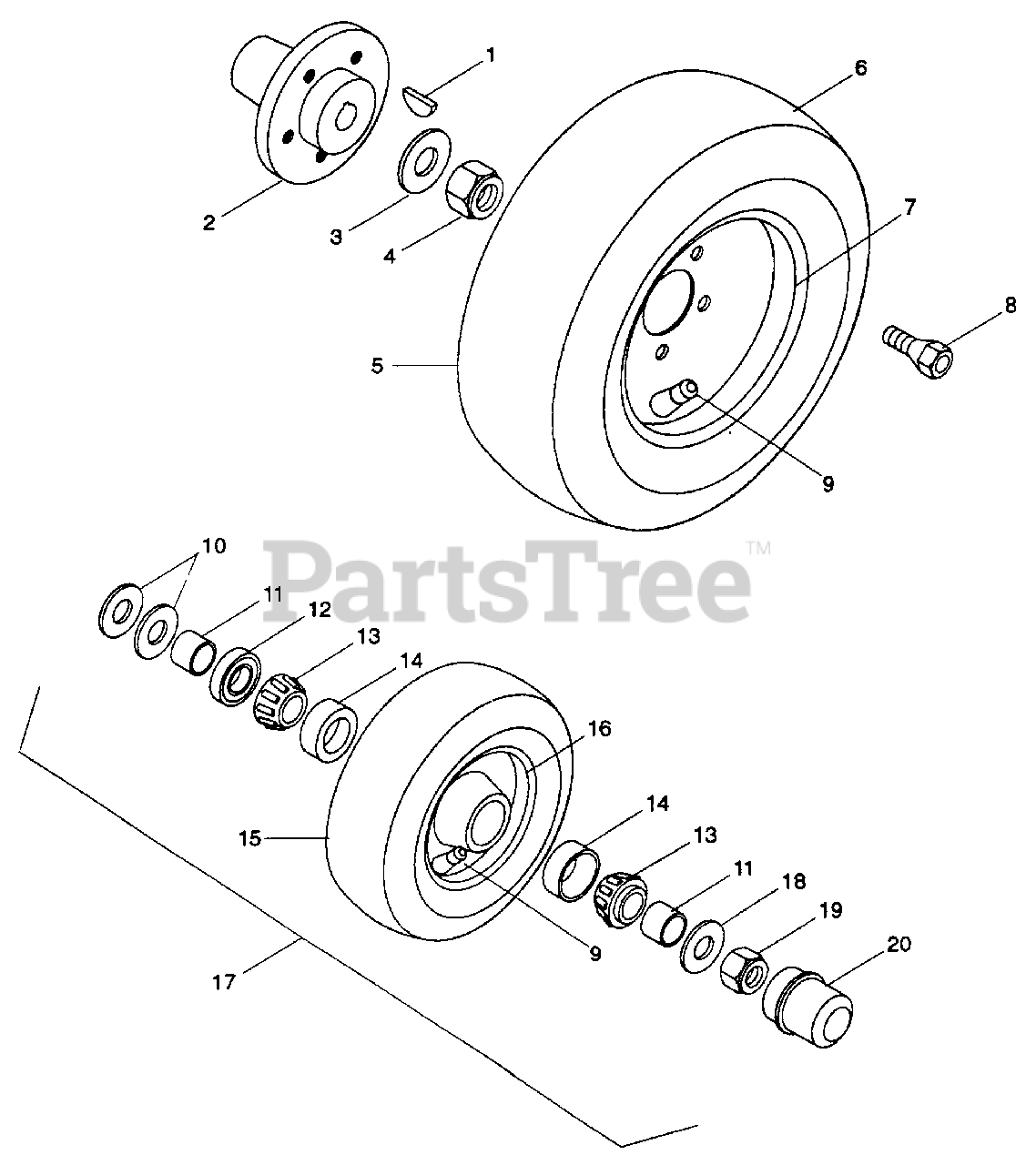

FRONT AND REAR WHEELS Parts Diagram

  • Title
1

Gravely 187184

KEY, WDRF .25 X 2.13 5 FT
(Superseded to 06609000)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 040304

HUB, TAPERED 4-WHL
(Superseded to 08747100)

$

$

Not available

3

Gravely 131000

WSHR-FL-STL .813 X 2.000 X .148
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

4

Gravely 456007

NUT-LK-NYL INSR .75-10 PL
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

5

Gravely 048537

TIRE-REAR
(Superseded to 20928000)

$

$

Not available

5

Gravely 048540

T/WHL ASS'Y 23 X 10.5-12
(Superseded to 07150100)

$202.99

$

Usually ships in 4-12 days

0

6

Gravely 048920

TIRE, REAR 23 X 8.50-12
(Superseded to 20928000)

$

$

Not available

6

Gravely 048921

TIRE, REAR 23 X 10.50-12
(Superseded to 20928100)

$

$

Not available

7

Gravely 048922

WLDMT, RIM
(Superseded to 20928200)

$142.99

$

Usually ships in 4-12 days

0

8

Gravely 012744

BLT .44-20 X 1.0
(Superseded to 07051400)

$10.99

$

In Stock, only 3 left!

0

9

Gravely 011191

VALVE STEM ASS'Y
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

10

Gravely 423315

WSHR-FL-STL .813 X 1.37 X .100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 018448

SPACER
(Superseded to 03495900)

$15.99

$

In Stock, only 2 left!

0

12

Gravely 018447

SEAL 1.206 X 1.785 X .486
(Superseded to 05613200)

$15.99

$

In Stock, only 2 left!

0

13

Gravely 018446

BRG/CONE .750 X .61
(Superseded to 05404500)

$23.99

$

In Stock, Qty 9

0

14

Gravely 018445

BRG/CUP 1.781 X .475
(Superseded to 05404400)

$10.99

$

In Stock, Qty 20+

0

15

Gravely 018923

TIRE, FRONT 16 X 6.50-8

$

$

Not available

15

Gravely 031280

TIRE, FRONT 16 X 7.50-8
(Superseded to 07119600)

$216.99

$

Usually ships in 4-12 days

0

16

Gravely 048925

WELDMENT, RIM
(Superseded to 07119600)

$216.99

$

Usually ships in 4-12 days

0

17

Gravely 018442

TIRE, FRONT 16 X 6.50-8
(Superseded to 21119100)

$312.99

$

Usually ships in 4-12 days

0

17

Gravely 031425

T/WHL ASSY 16 X 7.50-8
(Superseded to 21212500)

$284.99

$

Usually ships in 4-12 days

0

18

Gravely 131016

WSHR-FL-STL .656 X 1.312 X .095 PL
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 418692

NUT-LK-NYL .625-11 PL
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

20

Gravely 018449

DUST CAP
(Superseded to 03496000)

$14.99

$

In Stock, only 3 left!

0
