987031 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) FRAME Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

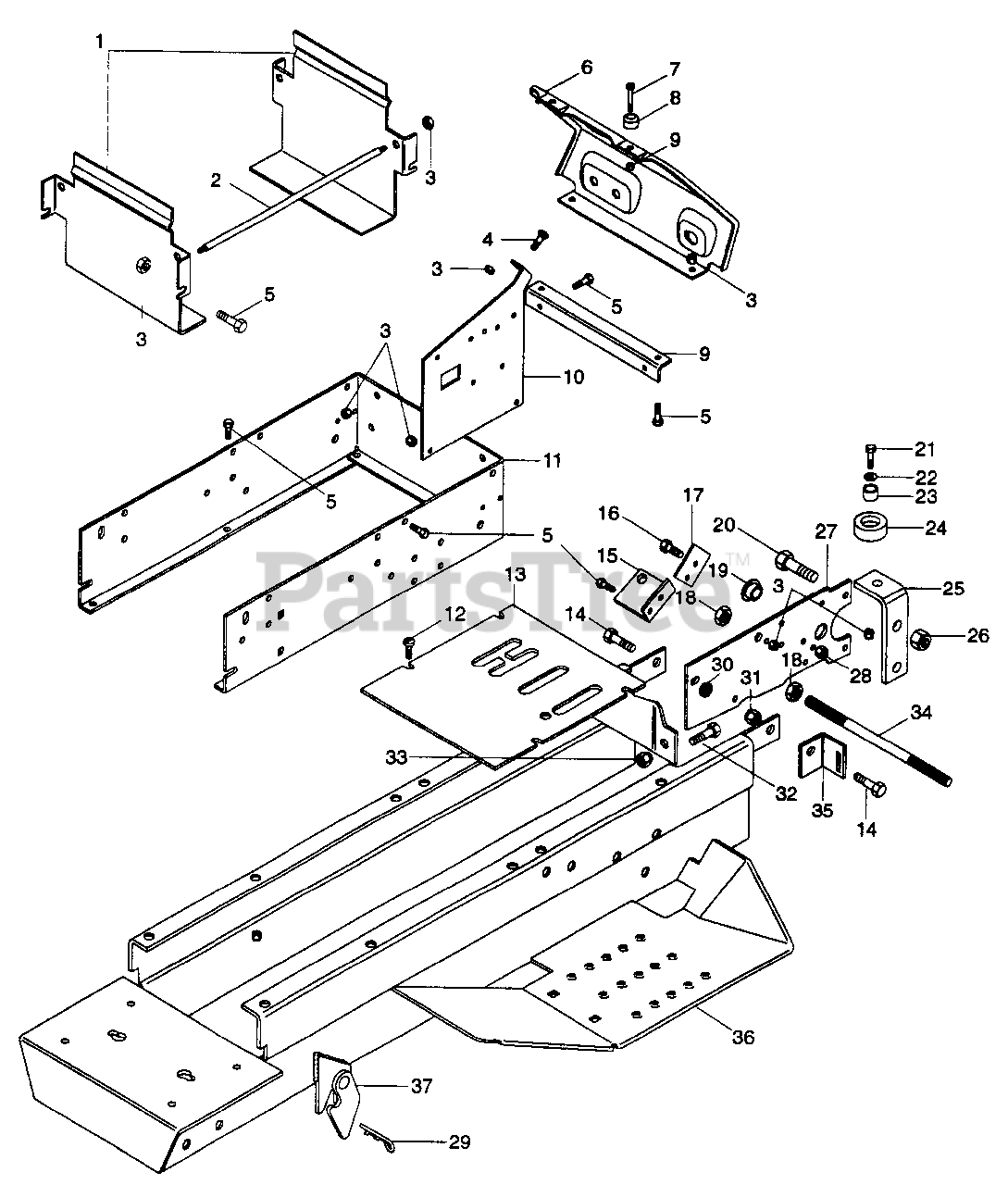

FRAME Parts Diagram

  • Title
1

Gravely 087815

TANK SUPPORT
(Superseded to 08781500)

$50.99

$

Usually ships in 4-12 days

0

2

Gravely 090378

ROD, TANK
(Superseded to 09037800)

$29.99

$

Usually ships in 4-12 days

0

3

Gravely 419454

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 160541

SCR-MCH .25-20 PAN HD
(Superseded to 06113500)

$2.99

$

In Stock, only 3 left!

0

5

Gravely 180020

BLT-HEX .25-20 X .75 PL GR 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 087594

INSTRUMENT PANEL, SILKSCREEN
(Superseded to 58701100)

$

$

Not available

7

Gravely 159341

SCR-MCH 6-32 X .625
(Superseded to 06110700)

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 018183

BUMPER
(Superseded to 07017400)

$

$

Not available

9

Gravely 040548

BRKT, INSTRUMENT PANAL
(Superseded to 08749300)

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 040449

BR, INSTRUMENT PANEL L.H.
(Superseded to 08748200)

$

$

Not available

10

Gravely 040450

BR, INSTRUMENT PANEL R.H.
(Superseded to 08748300)

$

$

Not available

11

Gravely 041240

SPRT, INSTRUMENT
(Superseded to 08754000)

$

$

Not available

12

Gravely 167260

SCR-TAP .250-20 X .625 P/HD
(Superseded to 07410400)

$2.49

$

In Stock, Qty 13

0

13

Gravely 040140

PLT, MANUAL CONTROL COVER
(Superseded to 58700900)

$

$

Not available

13

Gravely 087762

PLT, HYD CONTROL COVER
(Superseded to 58701000)

$

$

Not available

14

Gravely 180124

BLT-HEX .38-16 X 1.25 PL GR 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 046305

BRKT, INTERLOCK SWITCH
(Superseded to 08778400)

$

$

Not available

16

Gravely 180077

BLT-HEX .31-18 X .75 PL GR 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 040822

BRKT, BUSHING LOCK
(Superseded to 08752000)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 120378

NUT .50-13 PL
(Superseded to 06500814)

$3.99

$

In Stock, only 1 left!

0

19

Gravely 010174

BSHG-FLG .762 X 1.0 X .580 X 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 180177

BLT-HEX .50-13 X 1.50 PL GR 5
(Superseded to 05901631)

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 180024

BLT-HEX .25-20 X 1.25 PL GR 2
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

22

Gravely 120386

WSHR-FL-STL .312 X .734 X .065 PL
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 034723

BUSH., S .265 X .375 X .250 ST
(Superseded to 08708300)

$12.99

$

Usually ships in 4-12 days

0

24

Gravely 024357

BMPR, SEAT
(Superseded to 07521800)

$14.99

$

Usually ships in 4-12 days

0

25

Gravely 045594

BRKT, REAR HITCH
(Superseded to 08768900)

$

$

Not available

26

Gravely 435507

NUT-LK-NYL .50-13 PL
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

27

Gravely 052662

PLT, FWD-REV MTG
(Superseded to 08793253)

$9.49

$

Usually ships in 4-12 days

0

28

Gravely 419455

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 120378

PIN-HAIR-INT .15 X 2.937
(Superseded to 06500814)

$3.99

$

In Stock, only 1 left!

0

30

Gravely 413534

NUT-LK-CTR .375-16 TYP N
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

32

Gravely 181700

BLT-HEX .50-20 X 1.50
(Superseded to 05968600)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 011058

NUT-HEX .50-20
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 040207

ROD, FRAME EXT BRACE
(Superseded to 08655000)

$

$

Not available

35

Gravely 018362

BRKT, FENDER HOLD-UP
(Superseded to 08778500)

$11.99

$

Usually ships in 4-12 days

0

36

Gravely 045235

WLDMT, FRAME
(Superseded to 08766000)

$

$

Not available

37

Gravely 021087

WLDMT, MOWER BRACKET R.H.
(Superseded to 08722200)

$

$

Not available

37

Gravely 021088

WLDMT, MOWER BRACKET L.H.
(Superseded to 08722300)

$

$

Not available
