987031 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

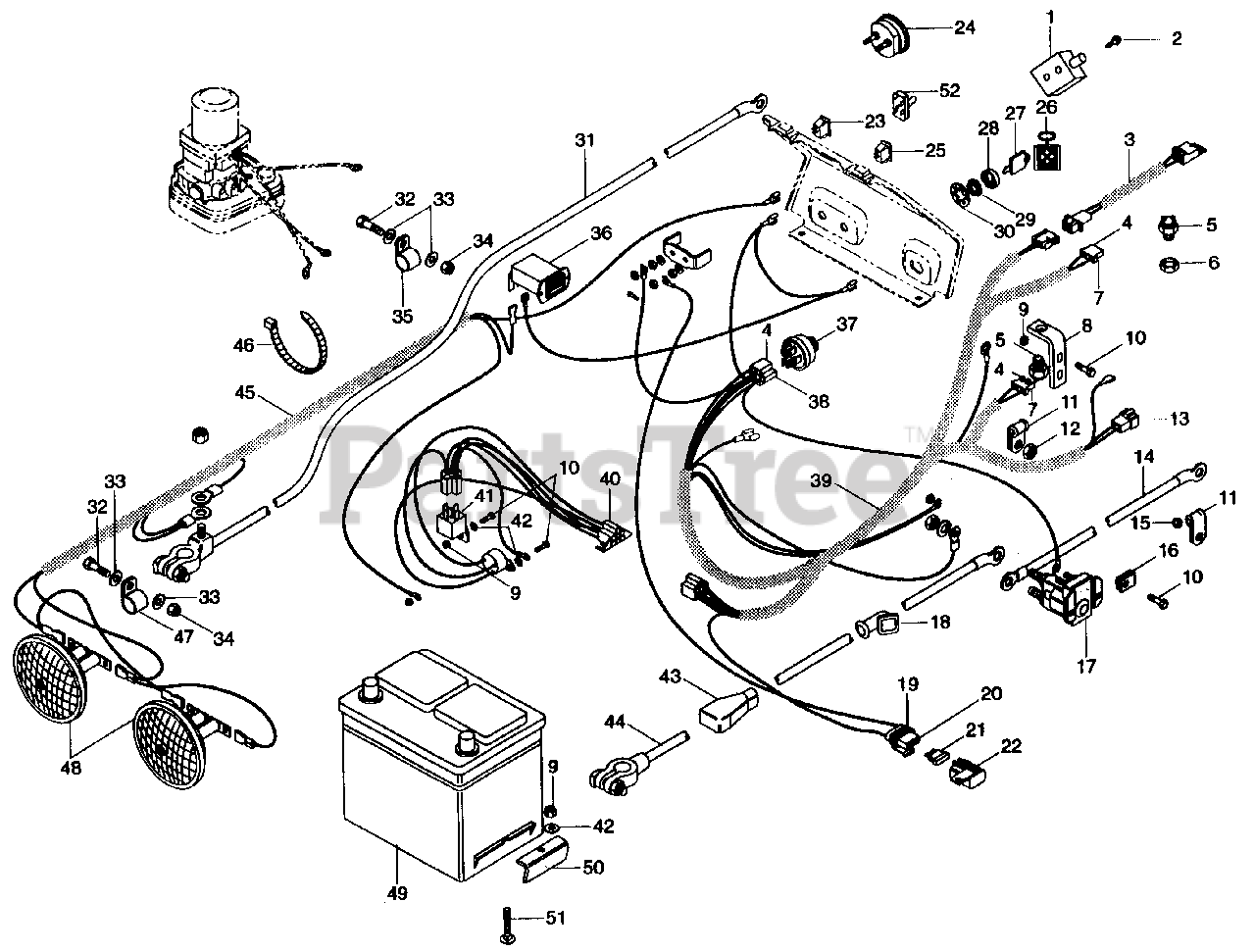

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 036066

SWITCH, DOUBLE POLE N.O./N.O.
(Superseded to 03606600)

$17.99

$

In Stock, only 1 left!

0

2

Gravely 074045

SCR. TAP 12-24 X .50 HWH PL
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

3

Gravely 087814

HARNESS, WIRING SEAT SWITCH
(Superseded to 08781400)

$

$

Not available

4

Gravely 038059

TERMINAL
(Superseded to 08540001)

$3.99

$

In Stock, Qty 5

0

5

Gravely 020916

SWITCH-NEUTRAL START N.O.
(Superseded to 02913100)

$45.99

$

In Stock, Qty 7

0

6

Gravely 107354

NUT-STAMPED .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 042176

CONN, 2 WIRE SWITCH
(Superseded to 08550000)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 020660

BRKT, SWITCH
(Superseded to 08720300)

$

$

Not available

9

Gravely 419454

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 180020

BLT-HEX .25-20 X .75 PL GR 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 027122

CLAMP
(Superseded to 06907200)

$

$

Not available

12

Gravely 413534

NUT-LK-CTR .375-16 TYP N
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 042289

CONNECTOR
(Superseded to 20709401)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 039862

CABLE STARTER
(Superseded to 08745600)

$

$

Not available

14

Gravely 040135

CABLE STARTER
(Superseded to 08746300)

$

$

Not available

15

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 011676

NUT-SPEED .25-20
(Superseded to 07016800)

$

$

Not available

17

Gravely 045071

SOLENOID
(Superseded to 03551000)

$34.99

$

In Stock, Qty 14

0

18

Gravely 033847

BOOT, INSULATOR
(Superseded to 03384700)

$

$

Not available

19

Gravely 045920

ASM, CONN WEATHER TIGHT
(Superseded to 20822700)

$

$

Not available

20

Gravely 045922

TERM., FOR 14-16 GA WIRE
(Superseded to 20822900)

$

$

Not available

21

Gravely 045037

FUSE, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

22

Gravely 045921

COVER
(Superseded to 20822800)

$

$

Not available

23

Gravely 050673

LIGHT, INDICATOR
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

24

Gravely 021848

GAUGE-AMMETER
(Superseded to 03490800)

$

$

Not available

25

Gravely 046060

SWITCH, LIGHT
(Superseded to 08973300)

$6.99

$

In Stock, only 1 left!

0

26

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

27

Gravely 045488

IGNITION SWITCH KEY
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

28

Gravely 045490

CAP-IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 045489

NUT-PANEL .562-24 GRECO
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

30

Gravely 019667

WSHR-LOCK INT .563 X .040 PL
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

31

Gravely 039871

CBL, NEGATIVE BATTERY
(Superseded to 08745800)

$

$

Not available

32

Gravely 180079

BLT-HEX .31-18 X 1.00 PL GR 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 120393

WSHR-FL-STL .344 X .688 X .065 PL
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 419455

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 041784

CLAMP, STEEL 1.0

$

$

Not available

36

Gravely 038256

HOUR METER
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

37

Gravely 019223

IGNITION SWITCH
(Superseded to 59211800)

$68.99

$

In Stock, Qty 13

0

38

Gravely 038058

CONNECTOR
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

39

Gravely 087723

HARNESS, WIRING
(Superseded to 08772300)

$

$

Not available

40

Gravely 040313

MODULE, TIME DELAY
(Superseded to 59000300)

$137.99

$

Usually ships in 4-12 days

0

41

Gravely 040216

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

42

Gravely 120392

WSHR-FL-STL .281 X .62 X .065 PL
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 034466

CVR, BATTERY TERMINAL
(Superseded to 07523100)

$

$

Not available

44

Gravely 039861

CABLE, BAT TO MAG SWITCH
(Superseded to 08745500)

$

$

Not available

45

Gravely 087796

HARNESS, WIRING GRND & LIGHTS
(Superseded to 08779600)

$

$

Not available

46

Gravely 010629

TIE CABLE
(Superseded to 07517300)

$

$

Not available

47

Gravely 035313

CABLE CLAMP
(Superseded to 03334000)

$

$

Not available

48

Gravely 039069

HEADLIGHT
(Superseded to 03114900)

$20.99

$

Usually ships in 4-12 days

0

49

Gravely 042597

BATTERY, 12V 22F 30 GT

$

$

Not available

50

Gravely 037742

CLAMP
(Superseded to 08539500)

$22.99

$

In Stock, only 1 left!

0

51

Gravely 126342

BLT-RDHDSQNK .25-20 X 1.75
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

52

Gravely 034379

SWITCH ASSEMBLY
(Superseded to 03437900)

$71.99

$

Usually ships in 4-12 days

0
