987029 (8179-G) - Gravely Lawn Tractor, 17hp, With Hydraulic Lift (SN: 000101 & Above) NUMBER TEN SHAFT - PTO DRIVE ASSEMBLY Parts Diagram

Lawn Tractor, 17hp, With Hydraulic Lift

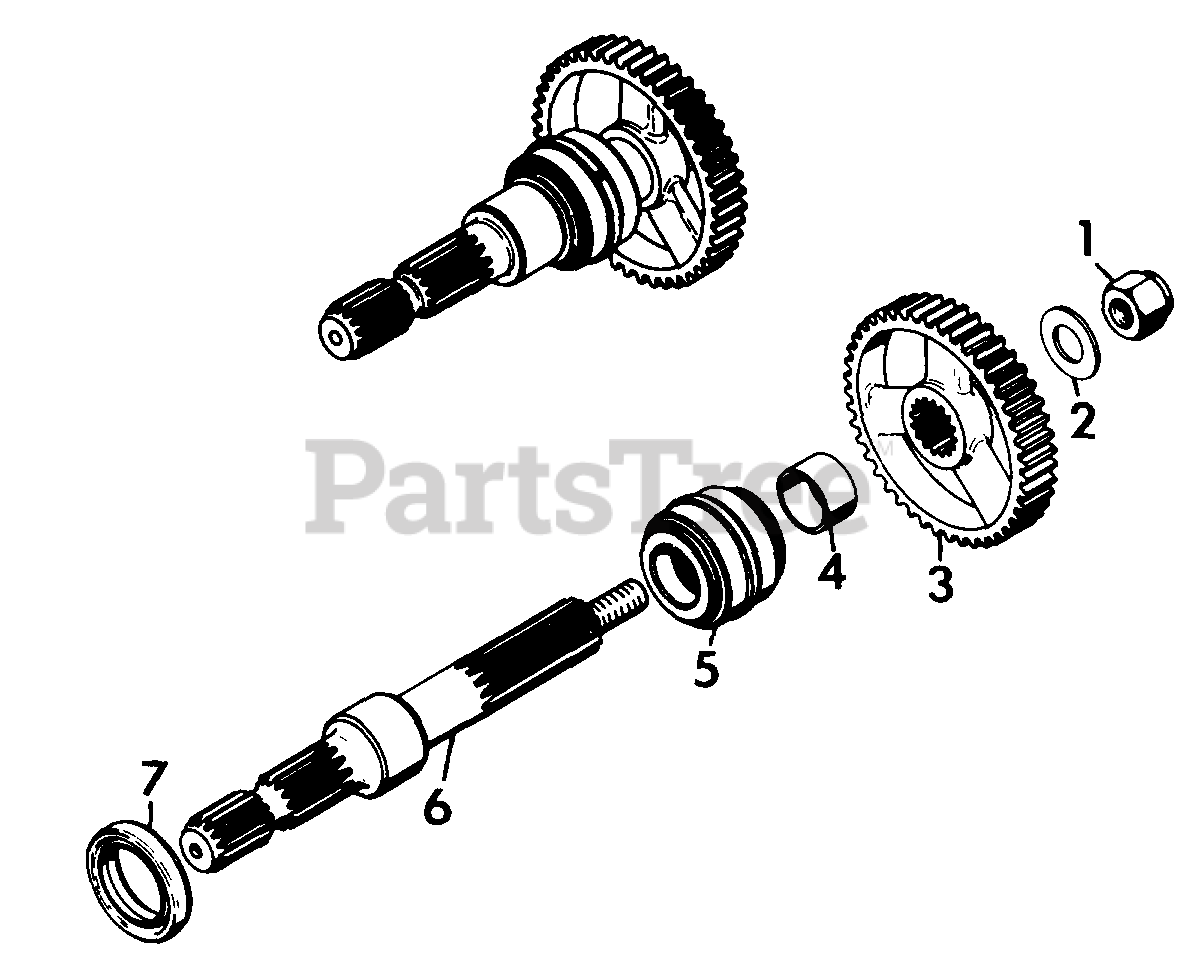

NUMBER TEN SHAFT - PTO DRIVE ASSEMBLY Parts Diagram

  • Title

1

Gravely 414075

NUT, LOCK 5/8-11
(Superseded to 06535300)

$2.99

$

Usually ships in 4-12 days

0

2

Gravely 033845

WASHER, FLAT .687X1.312X.122
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

3

Gravely 017922

GEAR, SPUR PTO; 10 DP 56 TEETH X .750 STD.
(Superseded to 08701600)

$

$

Not available

4

Gravely 017924

SPACER, 1.060X1.375X.450
(Superseded to 08724500)

$

$

Not available

5

Gravely 014640

ASSEMBLY, BEARING 1.000X1.980X1.243
(Superseded to 05419300)

$104.99

$

Usually ships in 4-12 days

0

6

Gravely 019538

SHAFT, PTO
(Superseded to 58702000)

$

$

Not available

7

Gravely 017923

SEAL, OIL 1.375X2.129X.312
(Superseded to 05614100)

$20.99

$

In Stock, only 1 left!

0
