987027 (8123-G) - Gravely Lawn Tractor, 12hp, With Hydraulic Lift (SN: 000101 & Above) HOOD AND REAR DECK Parts Diagram

Lawn Tractor, 12hp, With Hydraulic Lift

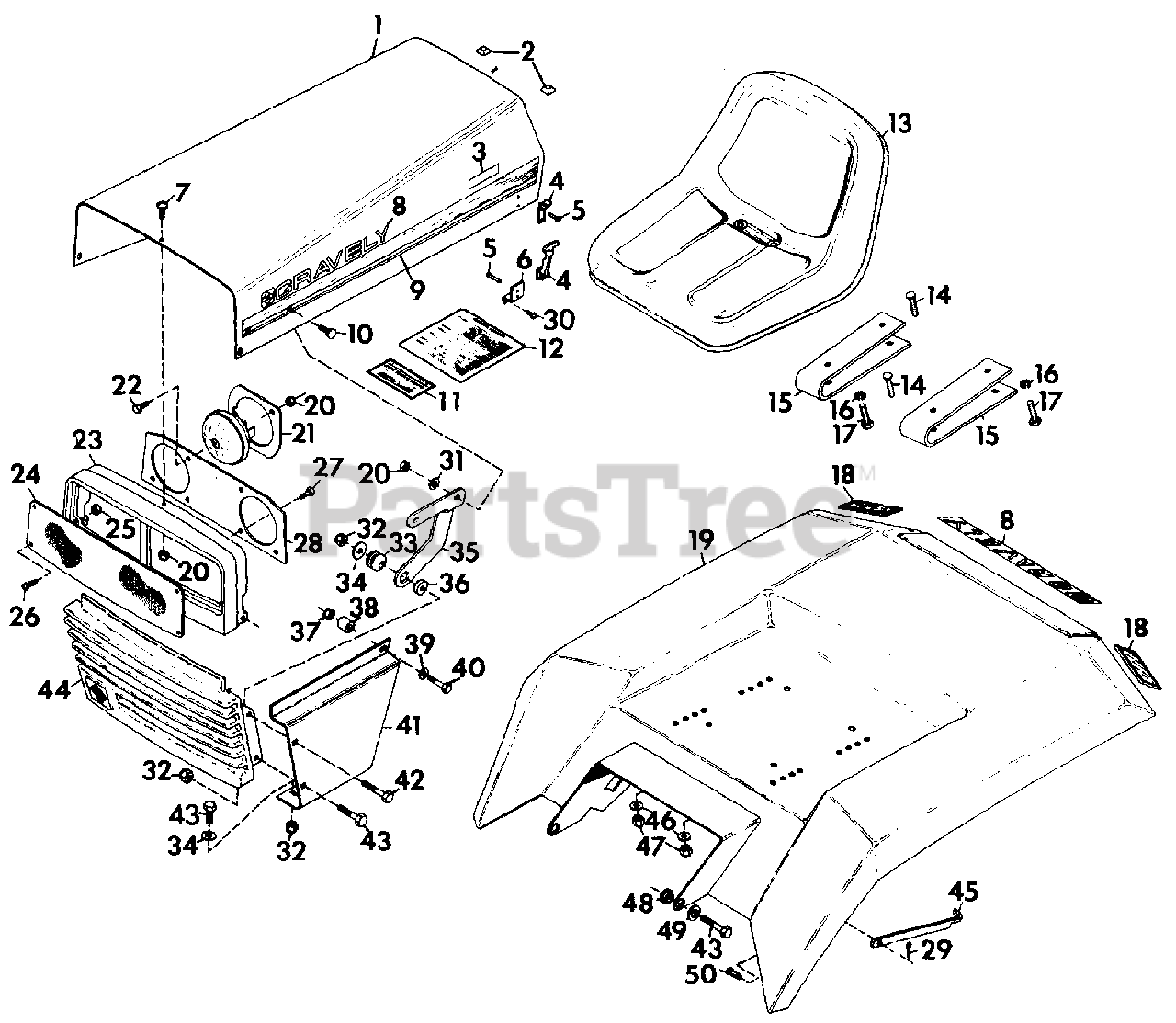

HOOD AND REAR DECK Parts Diagram

  • Title

1

Gravely 038674

HOOD, TRACTOR
(Superseded to 08658600)

$

$

Not available

2

Gravely 040176

STOP
(Superseded to 07525100)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 040577

DECAL, MODEL 8122-G
(Superseded to 20671800)

$

$

Not available

3

Gravely 040578

DECAL, MODEL 8123-G
(Superseded to 20671900)

$

$

Not available

3

Gravely 040579

DECAL, MODEL 8163-G
(Superseded to 20672000)

$

$

Not available

3

Gravely 040580

DECAL, MODEL 8179-G
(Superseded to 20672100)

$

$

Not available

3

Gravely 040581

DECAL, MODEL 8199-G
(Superseded to 20672200)

$

$

Not available

4

Gravely 035294

LATCH, FLEXIBLE
(Superseded to 08704700)

$25.99

$

Usually ships in 4-12 days

0

5

Gravely 032661

RIVET, DOME HEAD
(Superseded to 06807500)

$

$

Not available

6

Gravely 039828

BRACKET, HOOD LATCH MOUNTING
(Superseded to 08744700)

$45.99

$

Usually ships in 4-12 days

0

7

Gravely 160541

SCREW, MACHINE 1/4-20 PHD
(Superseded to 06113500)

$2.99

$

In Stock, only 3 left!

0

8

Gravely 024608

DECAL, GRAVELY LOGO
(Superseded to 02460800)

$28.99

$

Usually ships in 4-12 days

0

8

Gravely 024588

DECAL, GRAVELY LOGO
(Superseded to 05201500)

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 038773

DECAL, SIDE STRIPE L.H. AND R.H.
(Superseded to 20651800)

$

$

Not available

10

Gravely 120518

BOLT, 1/4-20X.75 RD HD SQ NK
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 011989

DECAL, ELECTRICAL SYSTEM WARNING
(Superseded to 05216700)

$9.99

$

Usually ships in 4-12 days

0

12

Gravely 040754

DECAL, MAINTENANCE
(Superseded to 07716800)

$

$

Not available

13

Gravely 040227

SEAT, HIGH BACK
(Superseded to 09112400)

$

$

Not available

14

Gravely 126216

BOLT, CARRIAGE 5/16-18X.75

$

$

Not available

15

Gravely 038806

SPRING, SEAT
(Superseded to 08809151)

$

$

Not available

16

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 017837

REFLECTOR, RED SAFETY
(Superseded to 07536500)

$22.99

$

Usually ships in 4-12 days

0

19

Gravely 040454

WELDMENT, SEAT PAN
(Superseded to 08748500)

$

$

Not available

19

Gravely 040453

WELDMENT, SEAT PAN NOTCHED
(Superseded to 08748500)

$

$

Not available

20

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

21

Gravely 039070

RING, HEADLIGHT RETAINER
(Superseded to 03115900)

$

$

Not available

22

Gravely 180022

BOLT, HEX 1/4-20X1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

23

Gravely 038673

BEZEL, HEADLIGHT
(Superseded to 03066800)

$

$

Not available

24

Gravely 038671

PANEL, HEADLIGHT LENSE
(Superseded to 03066900)

$78.99

$

Usually ships in 4-12 days

0

25

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 159947

SCREW, MACHINE 10-24X.75 PHD
(Superseded to 06111200)

$2.49

$

Usually ships in 4-12 days

0

27

Gravely 411890

SCREW, TAPPING 1/4-20X.625 HHDST
(Superseded to 21071400)

$

$

Not available

28

Gravely 038672

PANEL, HEADLIGHT REFLECTOR
(Superseded to 03067000)

$28.99

$

Usually ships in 4-12 days

0

29

Gravely 121223

PIN, COTTER .06X.75
(Superseded to 06707500)

$0.99

$

In Stock, only 3 left!

0

30

Gravely 163158

SCREW, 8-18X.375 PHD CR
(Superseded to 06113700)

$

$

Not available

31

Gravely 422845

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

33

Gravely 035518

GROMMET
(Superseded to 07504200)

$5.99

$

Usually ships in 4-12 days

0

34

Gravely 120388

WASHER, FLAT .438X1.000X.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 039047

HINGE, HOOD L.H.
(Superseded to 03118600)

$

$

Not available

35

Gravely 039049

HINGE, HOOD R.H.
(Superseded to 03118500)

$5.99

$

Usually ships in 4-12 days

0

36

Gravely 036849

SPACER
(Superseded to 03114500)

$9.99

$

In Stock, only 1 left!

0

37

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 010908

SPACER, .375X.100X1.00
(Superseded to 08707800)

$87.99

$

Usually ships in 4-12 days

0

39

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 180085

BOLT, HEX 5/16-18X1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

41

Gravely 039836

PANEL, SIDE L.H.
(Superseded to 08745000)

$13.99

$

Usually ships in 4-12 days

0

41

Gravely 039835

PANEL, SIDE R.H.
(Superseded to 08744900)

$13.99

$

Usually ships in 4-12 days

0

42

Gravely 180130

BOLT, HEX 3/8-16X2.00
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

43

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 039831

CASTING, GRILLE
(Superseded to 03493700)

$

$

Not available

45

Gravely 024996

STRAP, FENDER HOLD-UP
(Superseded to 08727200)

$25.99

$

Usually ships in 4-12 days

0

46

Gravely 446470

WASHER, FLAT .375X1.125X.065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

47

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

48

Gravely 024815

BUSHING, REAR FENDER
(Superseded to 05515800)

$9.49

$

In Stock, only 4 left!

0

49

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

50

Gravely 018420

PIN, CLEVIS .250X.406
(Superseded to 06809700)

$3.99

$

Usually ships in 4-12 days

0

NS

Gravely 040046

DECAL, AMERICA
(Superseded to 03327700)

$

$

Not available
