987021 (8122) - Gravely Lawn Tractor, 12hp, Without Hydraulic Lift (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM Parts Diagram

Lawn Tractor, 12hp, Without Hydraulic Lift

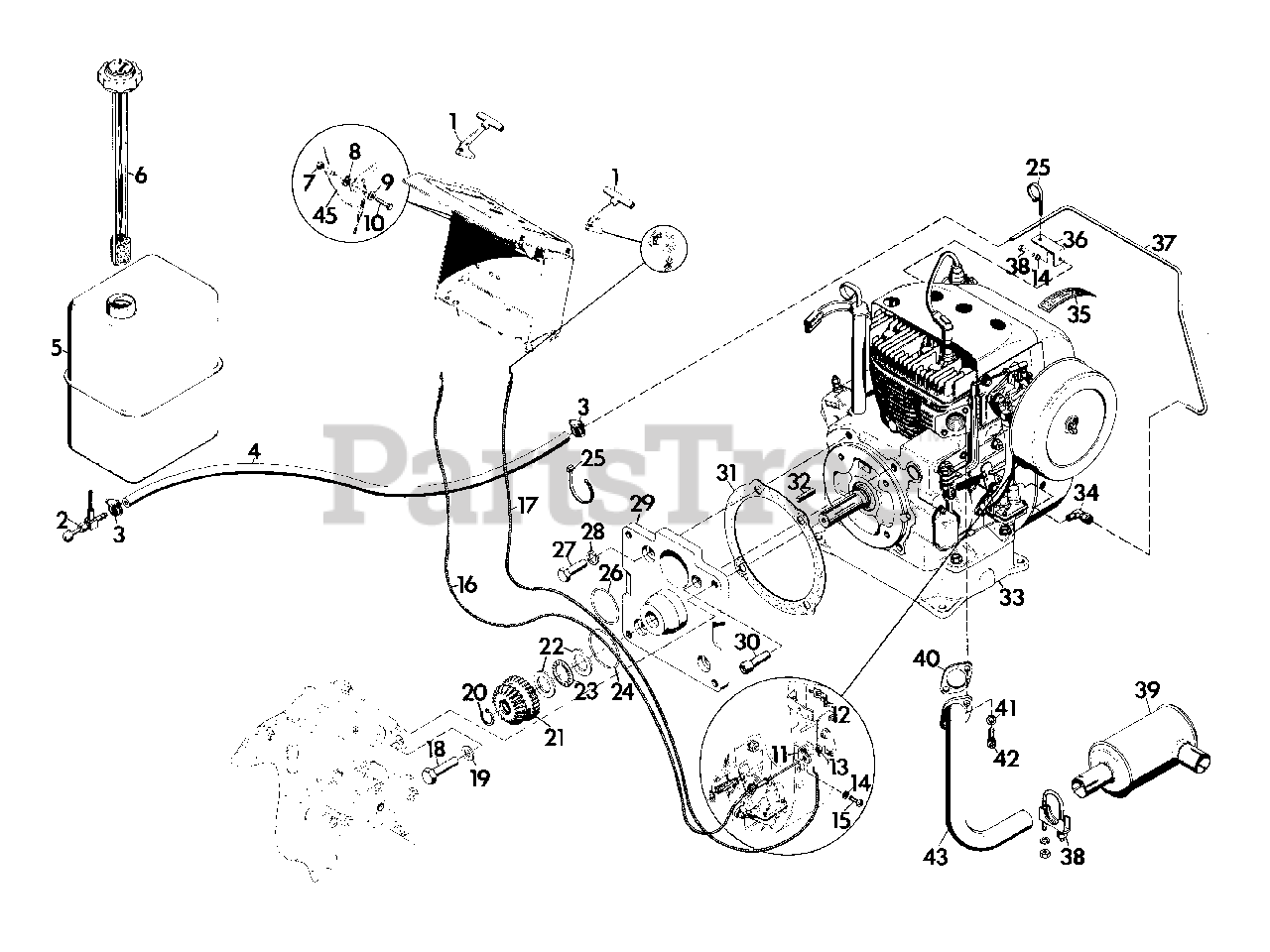

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 011773

ASSEMBLY, KNOB AND LEVER
(Superseded to 06917100)

$

$

Not available

2

Gravely 018563

VALVE, FUEL 90 DEG. REVERSE FLOW
(Superseded to 08707900)

$

$

Not available

3

Gravely 032045

CLAMP, HOSE
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

4

Gravely 021134

LINE, FUEL
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 012383

TANK, FUEL
(Superseded to 58700500)

$

$

Not available

6

Gravely 021415

GAUGE, GAS
(Superseded to 08723700)

$

$

Not available

7

Gravely 416430

NUT, LOCK 1/4-28
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

8

Gravely 011772

WASHER, FRICTION
(Superseded to 06431500)

$13.99

$

Usually ships in 4-12 days

0

9

Gravely 011774

WASHER, SPRING
(Superseded to 03493400)

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 181566

BOLT, HEX 1/4-28X.75
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 018522

BRACKET
(Superseded to 20259500)

$

$

Not available

12

Gravely 007331

CLIP, SPEED
(Superseded to 06931500)

$

$

Not available

13

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

14

Gravely 120380

WASHER, LOCK 1/4 SP
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 160515

SCREW, MACH. 1/4-20X.5 PAN HD
(Superseded to 06110900)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 018509

ASSEMBLY, THROTTLE CONDUIT
(Superseded to 20259100)

$52.99

$

In Stock, only 2 left!

0

17

Gravely 011771

ASSEMBLY, CHOKE CONDUIT
(Superseded to 20079000)

$

$

Not available

18

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

19

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

20

Gravely 018344

RING, RETAINING 1.125 SHAFT
(Superseded to 05712600)

$1.99

$

Usually ships in 4-12 days

0

21

Gravely 018343

GEAR, SPUR AND BEVEL, INPUT
(Superseded to 08790200)

$323.99

$

Usually ships in 4-12 days

0

22

Gravely 018342

RACE, BEARING THRUST 1.127X1.740X.060
(Superseded to 20256200)

$16.99

$

In Stock, only 2 left!

0

23

Gravely 018341

BEARING, THRUST 1.127X1.740X.078
(Superseded to 05421000)

$10.99

$

In Stock, only 4 left!

0

24

Gravely 018346

O-RING, 3.000X3.188X.094
(Superseded to 05614900)

$3.49

$

In Stock, Qty 11

0

25

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

26

Gravely 018347

O-RING, 2.500X2.750X.125
(Superseded to 20256400)

$5.99

$

In Stock, Qty 11

0

27

Gravely 180146

BOLT, HEX 7/16-14X1.125
(Superseded to 05963800)

$2.99

$

Usually ships in 4-12 days

0

28

Gravely 131100

WASHER, LOCK 7/16 SP HEAVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

29

Gravely 020555

ADAPTOR, ENGINE
(Superseded to 21256100)

$

$

Not available

30

Gravely 421648

SCREW, CAP 7/16-14X1.0 SOCKET HEAD
(Superseded to 05933000)

$

$

Not available

31

Gravely 018340

GASKET, ADAPTOR
(Superseded to 08900100)

$8.99

$

In Stock, Qty 9

0

32

Gravely 018345

KEY, SQUARE .250X1.250
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

33

Gravely 034161

ENGINE, KOHLER 12 HP

$

$

Not available

34

Gravely 114798

ASSEMBLY, ELBOW 1/4 BALL SLEEVE
(Superseded to 21049500)

$

$

Not available

35

Gravely 010862

DECAL, AIR CLEANER INSTRUCTION

$

$

Not available

36

Gravely 012019

BRACKET, FUEL LINE SUPPORT
(Superseded to 09023600)

$

$

Not available

37

Gravely 012009

CONNECTOR TO PUMP FUEL LINE
(Superseded to 20086900)

$

$

Not available

38

Gravely 180020

BOLT, HEX 1/4-20X.750
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 018543

MUFFLER, EXHAUST
(Superseded to 20259700)

$59.99

$

In Stock, only 1 left!

0

40

Gravely 011202

GASKET, EXHAUST
(Superseded to 08824700)

$10.99

$

In Stock, only 2 left!

0

41

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 421705

SCREW, CAP 5/16-18X.75 SOCKET HD
(Superseded to 05901827)

$2.49

$

In Stock, only 3 left!

0

43

Gravely 019492

HEADER, EXHAUST
(Superseded to 20279700)

$142.99

$

Usually ships in 4-12 days

0

44

Gravely 014728

CLAMP, MUFFLER
(Superseded to 06920900)

$6.99

$

In Stock, only 1 left!

0

45

Gravely 011770

BRACKET, MOUNTING
(Superseded to 03493300)

$

$

Not available

NS

Gravely 411893

NUT, LOCK 10-32
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

NS

Gravely 160046

SCREW, MACHINE 10-32X.50 PHD
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0
