987018 (8199 KT) - Gravely Lawn Tractor, 19hp, With Hydraulic Lift (SN: 000101 & Above) NUMBER EIGHT SHAFT AND DIFFERENTIAL Parts Diagram

Lawn Tractor, 19hp, With Hydraulic Lift

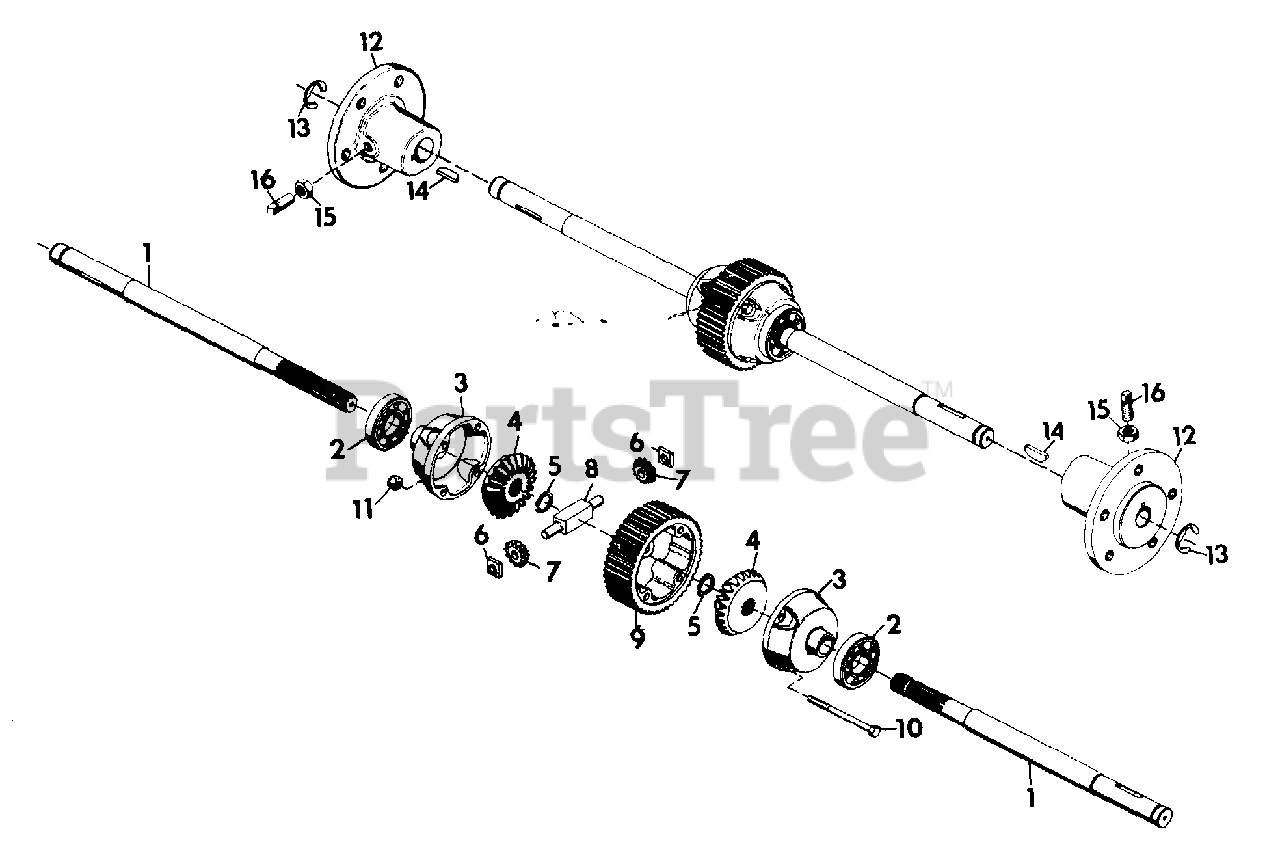

NUMBER EIGHT SHAFT AND DIFFERENTIAL Parts Diagram

  • Title

1

Gravely 019957

AXLE, BEVEL GEAR DIFF.
(Superseded to 21129100)

$469.99

$

Usually ships in 4-12 days

0

2

Gravely 017984

BEARING, BALL 1.378X2.834X.669
(Superseded to 05420800)

$

$

Not available

3

Gravely 019956

CAP, DIFF. END
(Superseded to 21129000)

$

$

Not available

4

Gravely 019953

GEAR, BEVEL
(Superseded to 21128900)

$

$

Not available

5

Gravely 017980

RING, RETAINING 1.000 SHAFT
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

6

Gravely 012667

BLOCK, DRIVE
(Superseded to 08779000)

$10.99

$

Usually ships in 4-12 days

0

7

Gravely 019952

PINION, BEVEL
(Superseded to 08717100)

$

$

Not available

8

Gravely 019954

PIN, SPIDER PINION
(Superseded to 08717200)

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 019955

GEAR, FINAL DRIVE
(Superseded to 08725400)

$

$

Not available

10

Gravely 020513

BOLT, HEX 5/16-18X2.5 GRADE-8

$

$

Not available

11

Gravely 020514

NUT, HEX 5/16-18 GRADE-8
(Superseded to 06521400)

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 018052

HUB, WHEEL
(Superseded to 21112700)

$276.99

$

In Stock, only 2 left!

0

13

Gravely 018055

E-RING 1.125 SHAFT
(Superseded to 20251300)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 187184

KEY, WOODRUFF .250X2.125 SOFT
(Superseded to 06609000)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 124829

NUT, JAM 3/8-16 HEX
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 102897

SCREW, SET 3/8-16X1.25 SQ HD CUP PT.
(Superseded to 21046600)

$3.49

$

Usually ships in 4-12 days

0
