987018 (8199 KT) - Gravely Lawn Tractor, 19hp, With Hydraulic Lift (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM Parts Diagram

Lawn Tractor, 19hp, With Hydraulic Lift

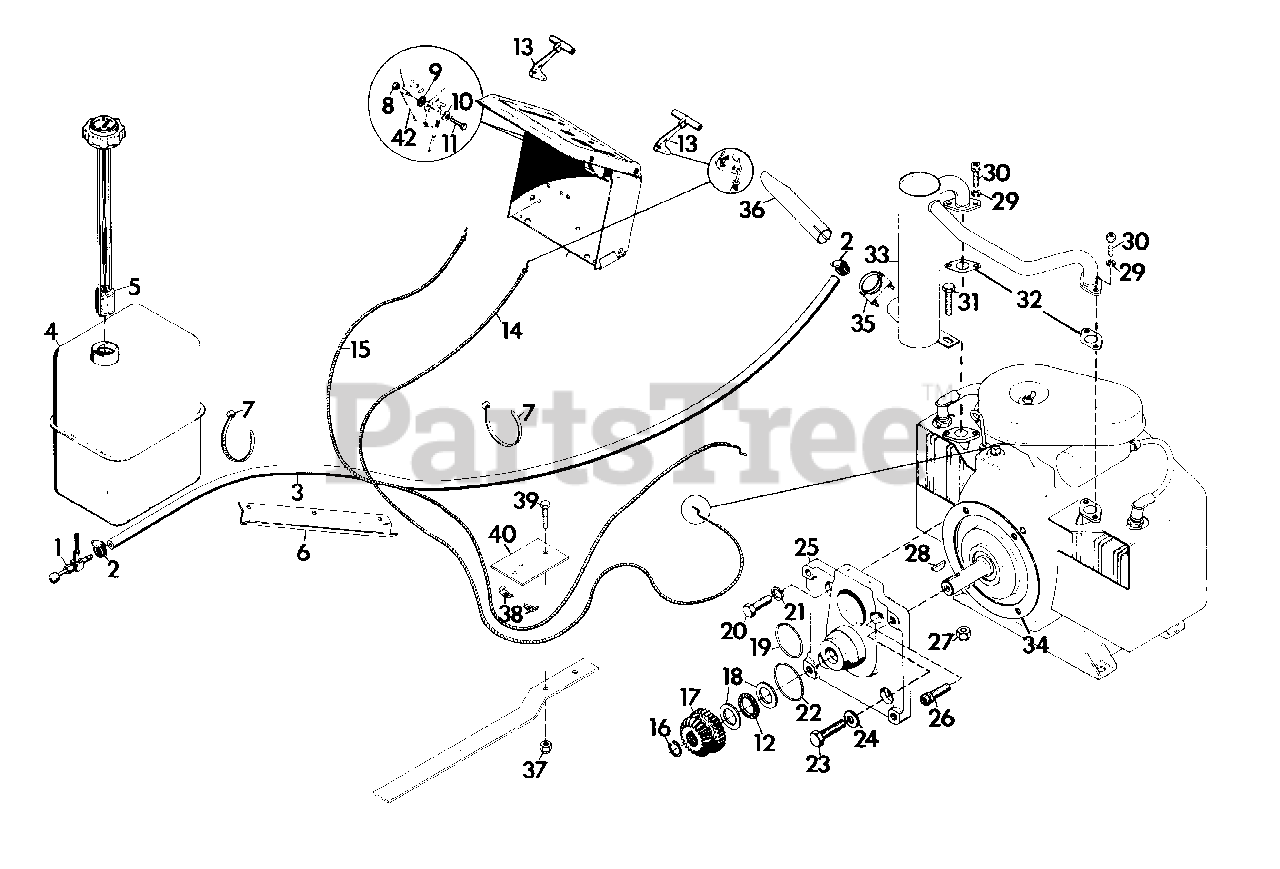

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 018563

VALVE, FUEL 90 DEG. REVERSE FLOW
(Superseded to 08707900)

$

$

Not available

2

Gravely 032045

CLAMP, HOSE
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

3

Gravely 021134

LINE, FUEL
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 012383

TANK, FUEL
(Superseded to 58700500)

$

$

Not available

5

Gravely 021415

GAUGE, GAS
(Superseded to 08723700)

$

$

Not available

6

Gravely 032030

SHIELD, HEAT
(Superseded to 08734400)

$

$

Not available

7

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

8

Gravely 416430

NUT, LOCK 1/4-28
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

9

Gravely 011772

WASHER, FRICTION
(Superseded to 06431500)

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 011774

WASHER, SPRING
(Superseded to 03493400)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 181566

BOLT, HEX 1/4-28X.75
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 018341

BEARING, THRUST 1.127X1.740X.078
(Superseded to 05421000)

$10.99

$

In Stock, only 4 left!

0

13

Gravely 011773

ASSEMBLY, KNOB AND LEVER
(Superseded to 06917100)

$

$

Not available

14

Gravely 031448

ASSEMBLY, CHOKE CONDUIT
(Superseded to 20553400)

$

$

Not available

15

Gravely 031449

ASSEMBLY, THROTTLE CONDUIT
(Superseded to 20553500)

$35.99

$

Usually ships in 4-12 days

0

16

Gravely 018344

RING, RETAINING 1.125 SHAFT
(Superseded to 05712600)

$1.99

$

Usually ships in 4-12 days

0

17

Gravely 018343

GEAR, SPUR AND BEVEL, INPUT
(Superseded to 08790200)

$323.99

$

Usually ships in 4-12 days

0

18

Gravely 018342

RACE, BEARING THRUST 1.127X1.74X.06
(Superseded to 20256200)

$16.99

$

In Stock, only 2 left!

0

19

Gravely 018347

O-RING, 2.500X2.750X.125
(Superseded to 20256400)

$5.99

$

In Stock, Qty 11

0

20

Gravely 180146

BOLT, HEX 7/16-14X1.125
(Superseded to 05963800)

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 131100

WASHER, LOCK 7/16 SP HEAVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 018346

O-RING, 3.000X3.188X.094
(Superseded to 05614900)

$3.49

$

In Stock, Qty 11

0

23

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

24

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

25

Gravely 032164

ADAPTOR, ENGINE
(Superseded to 21215200)

$

$

Not available

26

Gravely 421648

SCREW, CAP 7/16-14X1.00 SOCKET HEAD
(Superseded to 05933000)

$

$

Not available

27

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

28

Gravely 018345

KEY, SQUARE .250X1.250
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

29

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 421705

SCREW, CAP 5/16-18X.75 SOCKET HD
(Superseded to 05901827)

$2.49

$

In Stock, only 3 left!

0

31

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 011202

GASKET, EXHAUST
(Superseded to 08824700)

$10.99

$

In Stock, only 2 left!

0

33

Gravely 031452

MUFFLER
(Superseded to 08792500)

$

$

Not available

34

Gravely 032809

GASKET, ENGINE
(Superseded to 20585100)

$5.99

$

Usually ships in 4-12 days

0

35

Gravely 031720

CLAMP, MUFFLER
(Superseded to 06923100)

$

$

Not available

36

Gravely 032274

EXTENSION, PIPE
(Superseded to 20564300)

$

$

Not available

37

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

38

Gravely 007331

CLIP, SPEED
(Superseded to 06931500)

$

$

Not available

39

Gravely 180022

BOLT, HEX 1/4-20X1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

40

Gravely 034645

BRACKET, BOWDEN WIRE
(Superseded to 21232000)

$

$

Not available

41

Gravely 037512

ENGINE, 17-HP KOHLER TWIN

$

$

Not available

41

Gravely 037513

ENGINE, 19-HP KOHLER TWIN

$

$

Not available

42

Gravely 011770

BRACKET, MOUNTING
(Superseded to 03493300)

$

$

Not available

NS

Gravely 411893

NUT, LOCK 10-32
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

NS

Gravely 160046

SCREW, MACHINE 10-32X.50 PHD
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0
