987007 (24-G) - Gravely Lawn Tractor (SN: 000101 & Above) HOOD AND REAR DECK Parts Diagram

Lawn Tractor

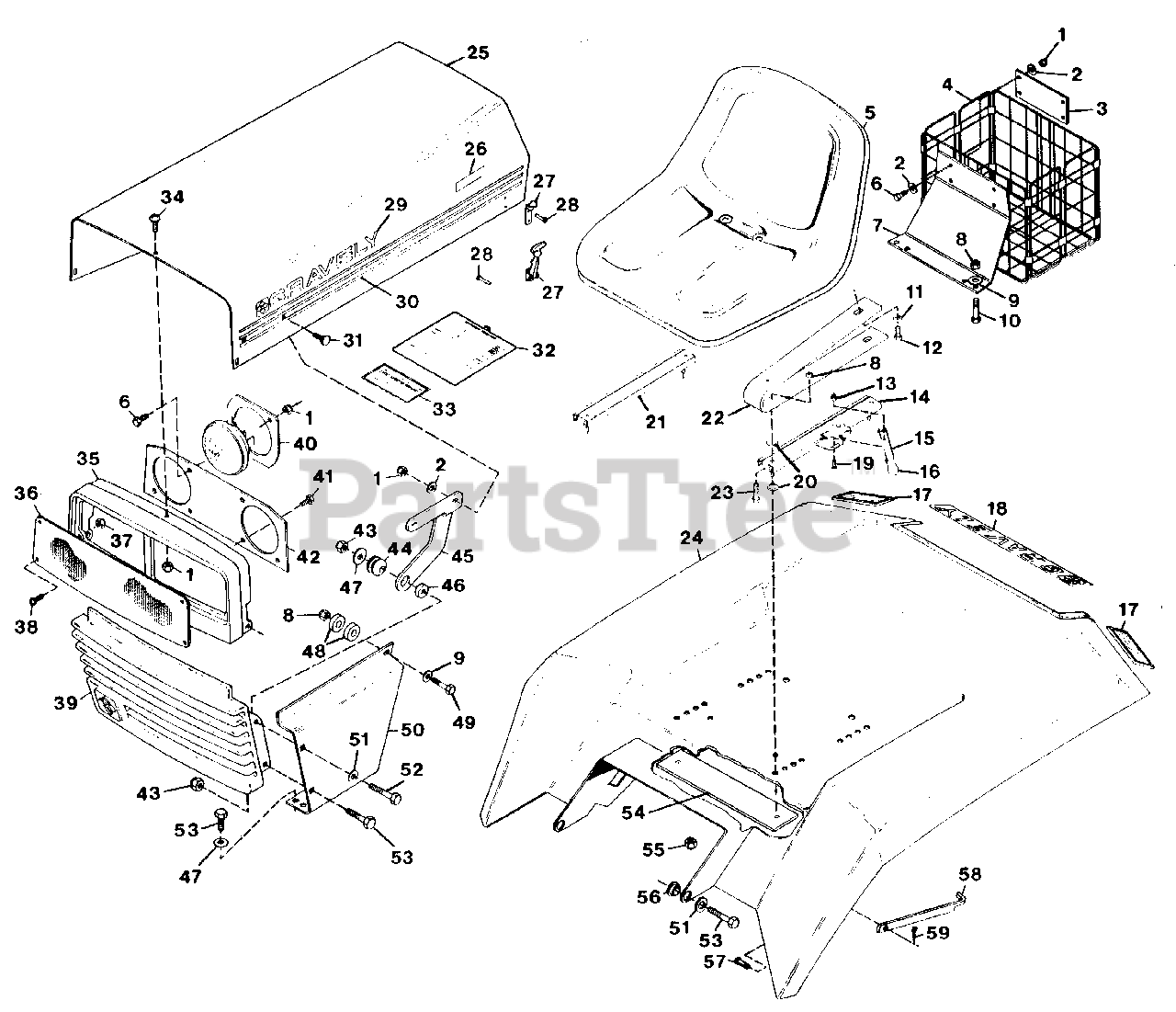

HOOD AND REAR DECK Parts Diagram

  • Title

1

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

2

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 046236

STRAP, BASKET
(Superseded to 08976600)

$

$

Not available

4

Gravely 046247

BASKET
(Superseded to 08976700)

$

$

Not available

5

Gravely 048918

SEAT, HIGH BACK
(Superseded to 59100200)

$

$

Not available

6

Gravely 180022

BOLT, HEX 1/4-20X1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

7

Gravely 046235

BRACKET, BASKET
(Superseded to 08976500)

$

$

Not available

8

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 180087

BOLT, HEX 5/16-18X2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 035641

ADJUSTER, SEAT W/LATCH
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

15

Gravely 039063

HANDLE, SEAT SLIDE
(Superseded to 03416500)

$

$

Not available

16

Gravely 043192

TIP, LEVER
(Superseded to 07503800)

$1.49

$

In Stock, only 4 left!

0

17

Gravely 017837

REFLECTOR, RED SAFETY
(Superseded to 07536500)

$22.99

$

Usually ships in 4-12 days

0

18

Gravely 044077

DECAL, GRAVELY LOGO
(Superseded to 03573000)

$

$

Not available

19

Gravely 159929

SCREW, MACHINE 10-24X.625 PHD
(Superseded to 06111100)

$0.99

$

In Stock, Qty 14

0

20

Gravely 035670

BUSH., FLG. .375X1.16X.320 STL.
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

21

Gravely 035642

ADJUSTER, SEAT
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

22

Gravely 047528

SPRING, SEAT
(Superseded to 03486851)

$

$

Not available

23

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

24

Gravely 046031

WELDMENT, SEAT PAN NOTCHED
(Superseded to 08774900)

$

$

Not available

25

Gravely 046028

HOOD, SILK SCREEN
(Superseded to 08774700)

$

$

Not available

26

Gravely 046078

DECAL, MODEL 24-G
(Superseded to 05212800)

$

$

Not available

27

Gravely 035294

LATCH, FLEXIBLE
(Superseded to 08704700)

$25.99

$

Usually ships in 4-12 days

0

28

Gravely 032661

RIVET, DOME HEAD
(Superseded to 06807500)

$

$

Not available

29

Gravely 043003

DECAL, GRAVELY LOGO
(Superseded to 05210700)

$

$

Not available

30

Gravely 044074

DECAL, SIDE STRIPE L.H. AND R.H.
(Superseded to 07703800)

$

$

Not available

31

Gravely 120518

BOLT, 1/4-20X.75 RD HD SQ NK
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 040754

DECAL, MAINTENANCE
(Superseded to 07716800)

$

$

Not available

33

Gravely 011989

DECAL, ELECTRICAL SYSTEM WARNING
(Superseded to 05216700)

$9.99

$

Usually ships in 4-12 days

0

34

Gravely 160541

SCREW, MACHINE 1/4-20 PHD
(Superseded to 06113500)

$2.99

$

In Stock, only 3 left!

0

35

Gravely 038673

BEZEL, HEADLIGHT
(Superseded to 03066800)

$

$

Not available

36

Gravely 038671

PANEL, HEADLIGHT LENSE
(Superseded to 03066900)

$78.99

$

Usually ships in 4-12 days

0

37

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 159947

SCREW, MACHINE 10-24X.75 PHD
(Superseded to 06111200)

$2.49

$

Usually ships in 4-12 days

0

39

Gravely 039831

CASTING, GRILLE
(Superseded to 03493700)

$

$

Not available

40

Gravely 039070

RING, HEADLIGHT RETAINER
(Superseded to 03115900)

$

$

Not available

41

Gravely 045207

SCREW, 1/4-20X.50 SELF-TAPPING
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 038672

PANEL, HEADLIGHT REFLECTOR
(Superseded to 03067000)

$28.99

$

Usually ships in 4-12 days

0

43

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

44

Gravely 035518

GROMMET
(Superseded to 07504200)

$5.99

$

Usually ships in 4-12 days

0

45

Gravely 039047

HINGE, HOOD L.H.
(Superseded to 03118600)

$

$

Not available

45

Gravely 039049

HINGE, HOOD R.H.
(Superseded to 03118500)

$5.99

$

Usually ships in 4-12 days

0

46

Gravely 036849

SPACER
(Superseded to 03114500)

$9.99

$

In Stock, only 1 left!

0

47

Gravely 120388

WASHER, FLAT .438X1.000X.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

48

Gravely 034383

BUSH., ST. .391X1.00X.250 STL.
(Superseded to 08905800)

$

$

Not available

49

Gravely 180085

BOLT, HEX 5/16-18X1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

50

Gravely 039836

PANEL, SIDE L.H.
(Superseded to 08745000)

$13.99

$

Usually ships in 4-12 days

0

50

Gravely 039835

PANEL, SIDE R.H.
(Superseded to 08744900)

$13.99

$

Usually ships in 4-12 days

0

51

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

52

Gravely 180130

BOLT, HEX 3/8-16X2.00
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

53

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

54

Gravely 051278

BRACKET, SEAT
(Superseded to 09004051)

$

$

Not available

55

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

56

Gravely 024815

BUSH., FLG. .406X.880X.270 BRZ.
(Superseded to 05515800)

$9.49

$

In Stock, only 4 left!

0

57

Gravely 018420

PIN, CLEVIS .250X.406
(Superseded to 06809700)

$3.99

$

Usually ships in 4-12 days

0

58

Gravely 024996

STRAP, FENDER HOLD-UP
(Superseded to 08727200)

$25.99

$

Usually ships in 4-12 days

0

59

Gravely 121223

PIN, COTTER .06X.75
(Superseded to 06707500)

$0.99

$

In Stock, only 3 left!

0
