987007 (24-G) - Gravely Lawn Tractor (SN: 000101 & Above) FRONT AND REAR WHEELS Parts Diagram

Lawn Tractor

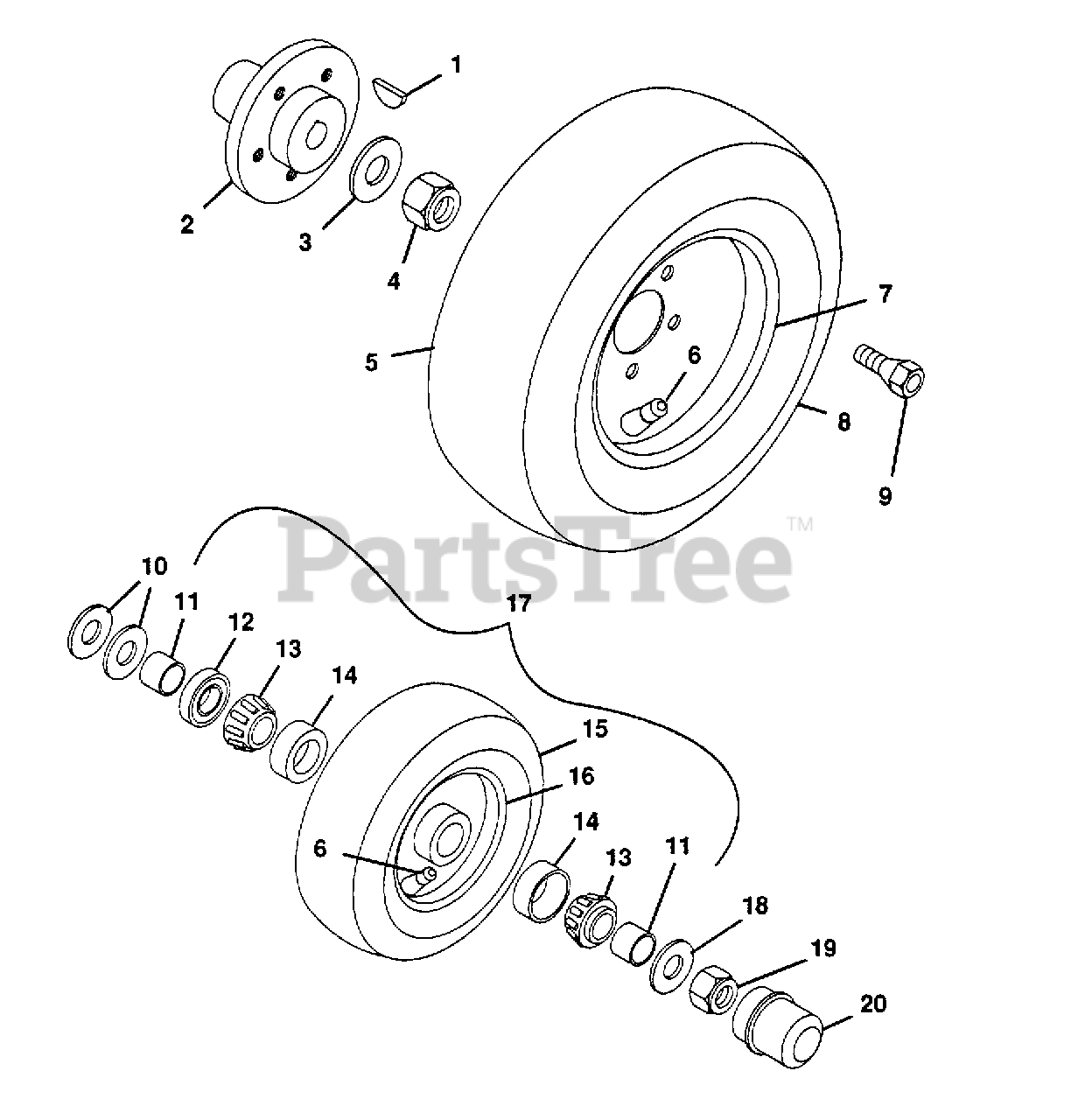

FRONT AND REAR WHEELS Parts Diagram

  • Title
1

Gravely 187184

KEY, WOODRUFF .312X2.125
(Superseded to 06609000)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 045611

HUB, TAPERED
(Superseded to 08769100)

$

$

Not available

3

Gravely 131000

WASHER, FLAT .813X2.0X.148
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

4

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

5

Gravely 048541

ASSEMBLY, WHEEL 26X12-12
(Superseded to 07130600)

$

$

Not available

6

Gravely 011191

ASSEMBLY, VALVE STEM
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

7

Gravely 048942

WELDMENT, RIM REAR
(Superseded to 07134500)

$

$

Not available

8

Gravely 048937

TIRE, REAR 26X12-12
(Superseded to 20928400)

$

$

Not available

9

Gravely 012744

BOLT, HUB 7/16-20X.75(SPECIAL)
(Superseded to 07051400)

Note: (SPECIAL)

$10.99

$

In Stock, only 3 left!

0

10

Gravely 423315

WASHER, FLAT .813X1.37X.100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 018448

SPACER
(Superseded to 03495900)

$15.99

$

In Stock, only 2 left!

0

12

Gravely 018447

SEAL, OIL
(Superseded to 05613200)

$15.99

$

In Stock, only 2 left!

0

13

Gravely 018446

BEARING, CONE LM 11949
(Superseded to 05404500)

$23.99

$

In Stock, Qty 9

0

14

Gravely 018445

BEARING, CUP LM 11910
(Superseded to 05404400)

$10.99

$

In Stock, Qty 20+

0

15

Gravely 048938

TIRE, FRONT 18X8.50-8
(Superseded to 20928500)

$

$

Not available

16

Gravely 048943

WELDMENT, RIM FRONT
(Superseded to 07134400)

$

$

Not available

17

Gravely 048539

ASSEMBLY, WHEEL 18X8.50-8
(Superseded to 07130400)

$

$

Not available

18

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

20

Gravely 018449

CAP
(Superseded to 03496000)

$14.99

$

In Stock, only 3 left!

0
